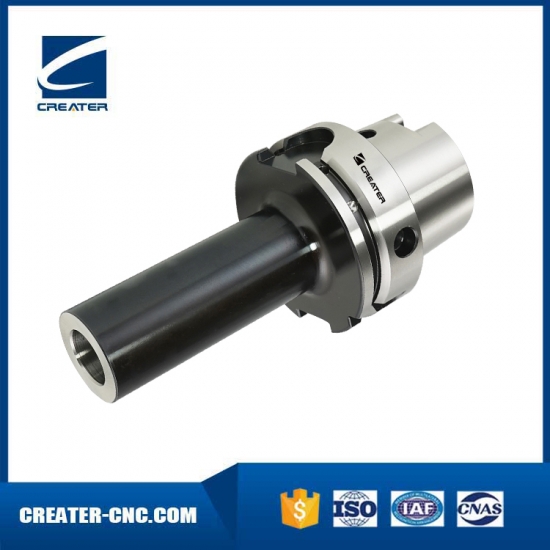

Screw-in Milling Cutter Holder
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | FOB Qingdao |
| Color: | Blackening |
| Lead Time: | 3-40 Days |
| Payment: | TT Payment in Advance |
- Specification
- Simple figure
- Precautions
Screw-in Milling Cutter Tool Holder Slimline Design
Runout: 0.005 mm
Balancing: G6.3/15000 RPM;
Balancing G2.5 can be made by request.
Usage: for mounting screw-in cutters with thread.

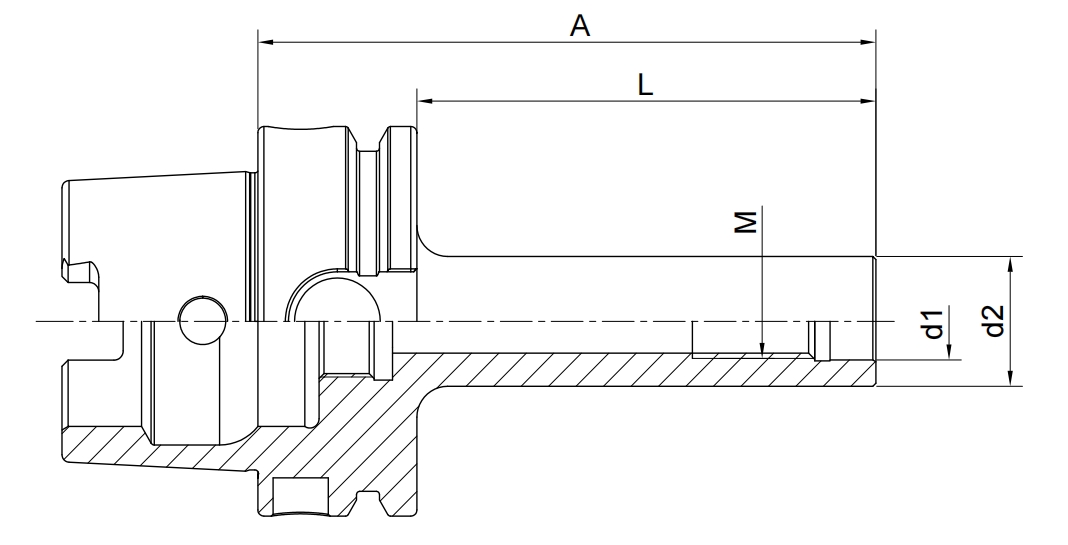

| Size | M | d1 | d2 | A | L |
| HSK63A-M10-126 L=100 | 10 | 10.5 | 18 | 126 | 100 |
| HSK63A-M10-176 L=150 | 10 | 10.5 | 18 | 176 | 150 |
| HSK63A-M12-101 L=75 | 12 | 12.5 | 21 | 101 | 75 |
| HSK63A-M12-126 L=100 | 12 | 12.5 | 21 | 126 | 100 |
| HSK63A-M12-176 L=150 | 12 | 12.5 | 21 | 176 | 150 |
| HSK63A-M16-101 L=75 | 16 | 17 | 29 | 101 | 75 |
| HSK63A-M16-126 L=100 | 16 | 17 | 29 | 126 | 100 |
| HSK63A-M16-176 L=150 | 16 | 17 | 29 | 176 | 150 |
| HSK100A-M10-129 L=100 | 10 | 10.5 | 18 | 129 | 100 |
| HSK100A-M10-179 L=150 | 10 | 10.5 | 18 | 179 | 150 |
| HSK100A-M12-129 L=100 | 12 | 12.5 | 21 | 129 | 100 |
| HSK100A-M12-179 L=150 | 12 | 12.5 | 21 | 179 | 150 |
| HSK100A-M16-129 L=100 | 16 | 17 | 29 | 129 | 100 |
| HSK100A-M16-179 L=150 | 16 | 17 | 29 | 179 | 150 |
