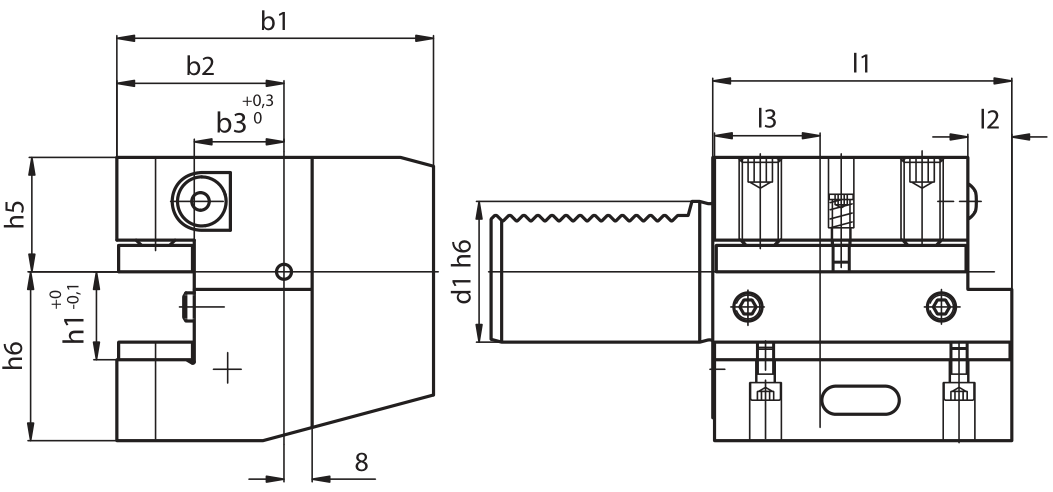

- Simple figure
- Precautions

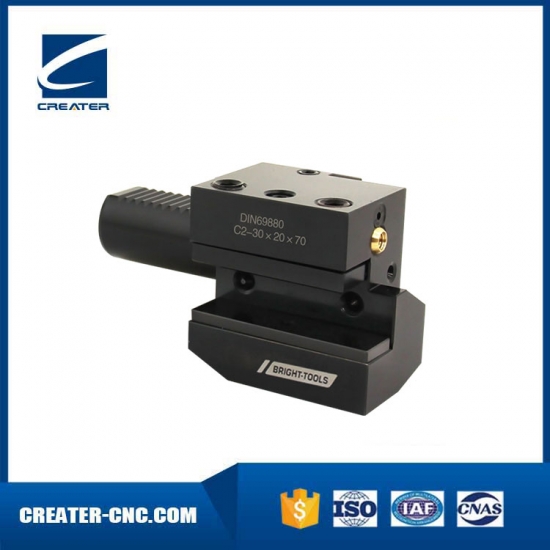

VDI Form C2 Square Tool Left-Hand Facing Tool Holder
Place of origion: Shandong, China( Mainland)
Brand Name: Bright-tools
Surface treatment: Black-Finished
Metric
Size
d1
b1
b2
b3
h1
h5
h6
l1
l2
l3
C2-16x12x44
16
43
24
13
12
20
22
44
5
20
C2-20x16x50
20
65
40
26
16/12
25
30
50
-
30
C2-25x16x55
25
58
33
19
16/12
25
30
55
7
20
C2-30x20x70
30
76
41
23
20/16
28
38
70
10
30
C2-40x25x85
40
90
47.5
25.5
25/20
32.5
48
85
12.5
30
C2-50x32x100
50
105
55
30.5
32/25
35
60
100
16
40
C2-60x32x125
60
125
62.5
33
32/25
42.5
62.5
125
16
40
C2-80x40x160
80
160
78
42
40/32
55
80
160
20
40
Inch
Size
d1
b1
b2
b3
h1
h5
h6
l1
l2
l3
C2-20x5/8"x50
20
65
40
26
5/8"
25
30
50
-
30
C2-30x3/4"x70
30
76
41
23
3/4"
28
38
70
10
30
C2-40x1"x85
40
90
47.5
25.5
1"
32.5
48
85
12.5
30
C2-50x1-1/4" x100
50
105
55
30.5
1-1/4"
35
60
100
16
40
C2-60x1-1/4" x125
60
125
62.5
33
1-1/4"
42.5
62.5
125
16
40
Global CNC maufactures a complete line of Static CNC Lathe VDI Toolholders made to DIn 69880 standards.
All VDI Tool Holders are made to ISO9001 specifications.
Available in All Metric VDI Shank Sizes: 16mm, 20mm, 25mm, 30mm, 40mm, 50mm, 60mm& 80mm.
Holders Standard Metric Size Tooling; Inch Available Upon Request.
