Products

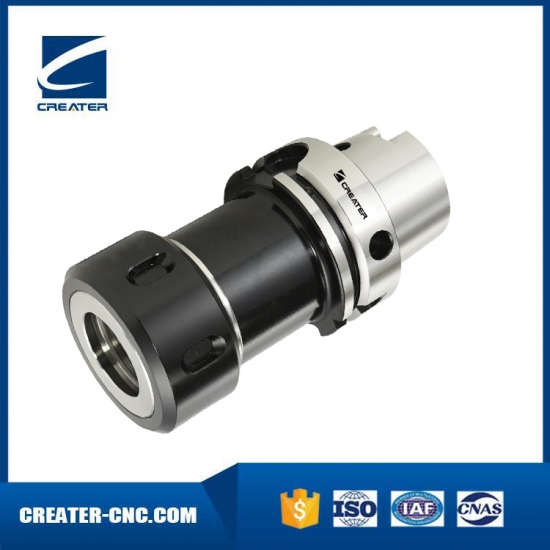

OZ Collet Chuck
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening Tool Holders |
| Lead Time: | 3-30 days |
| Payment: | TT |
- Specification

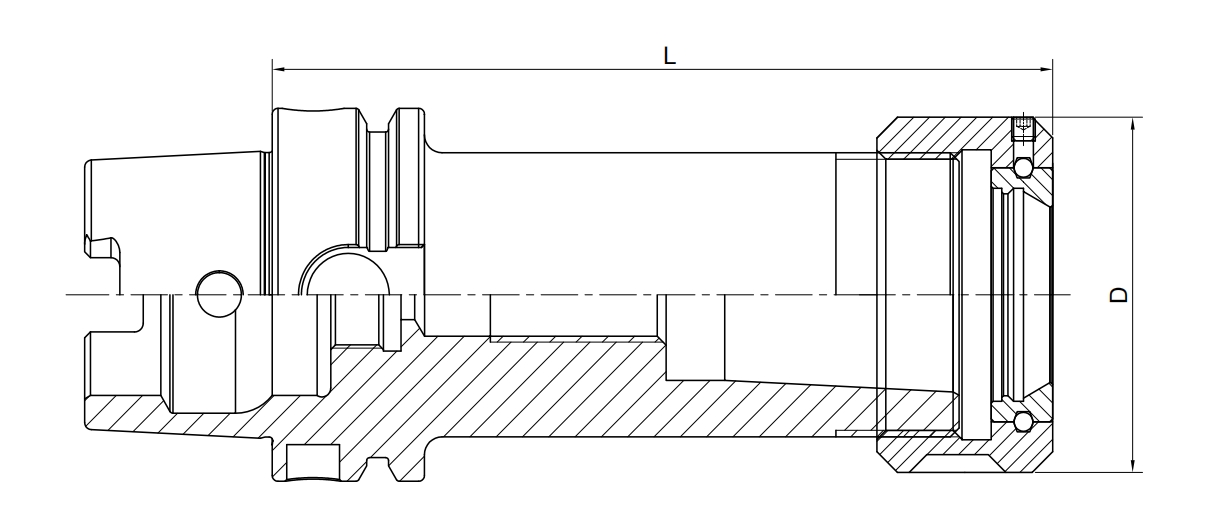

- Simple figure
- Precautions
OZ Collet Chucks for DIN6388
Taper: DIN69893 HSK Tool Holders; Inspected with Diebold Gauges
Run out: within 0.003mm
Balancing : G2.5/25000 RPM
| Size | D | L | Capacity |
| HSK50A-OZ16-90 | 43 | 90 | 2-16 |
| HSK50A-OZ25-110 | 60 | 110 | 2-25 |
| HSK63A-OZ16-100 | 43 | 100 | 2-16 |
| HSK63A-OZ25-100 | 60 | 100 | 2-25 |
| HSK63A-OZ32-120 | 72 | 120 | 3-32 |
| HSK100A-OZ16-110 | 43 | 110 | 2-16 |
| HSK100A-OZ25-120 | 60 | 120 | 2-25 |
| HSK100A-OZ32-130 | 72 | 130 | 3-32 |
