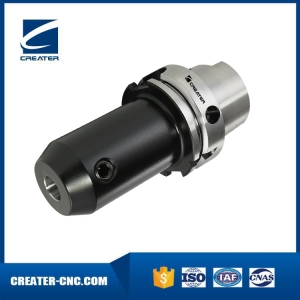

Side Lock End Mill Holder
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening Surface Treatment |
| Lead Time: | 3-30 Days |
| Payment: | TT Payment in Advance |
- Specification

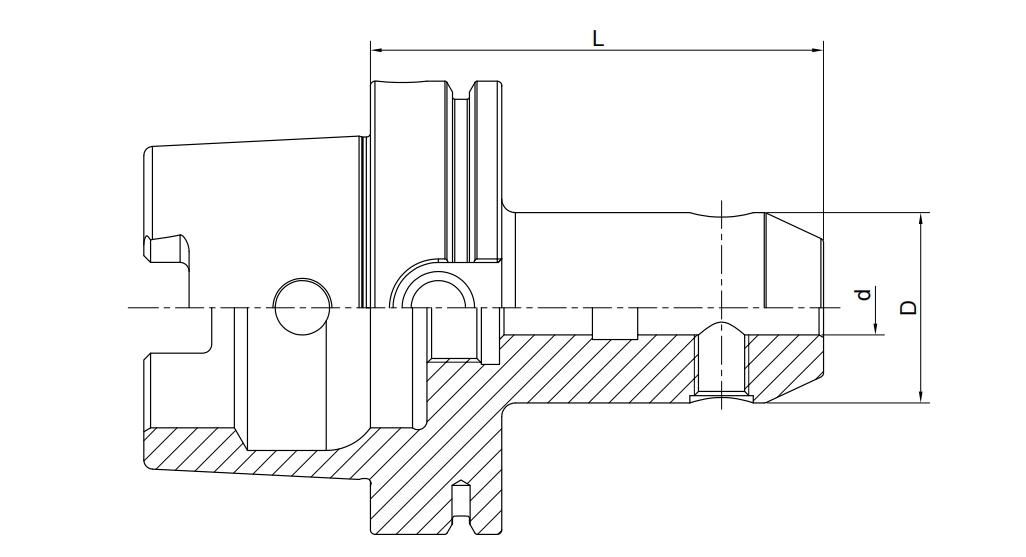

- Simple figure
- Precautions
Side Lock End Mill Holder DIN6359/1835B
Taper: AT3
Taper Standard: DIN69893
Accuracy: 0.005mm
Balancing : G2.5/25000RPM
Coolant: A Type inner coolant
| Model | d | D | L | M | Screw Quantity |
| HSK50A-SLA06-65 | 6 | 25 | 65 | M6 | 1 |
| HSK50A-SLA08-65 | 8 | 28 | 65 | M8 | 1 |
| HSK50A-SLA10-65 | 10 | 35 | 65 | M10 | 1 |
| HSK50A-SLA12-80 | 12 | 42 | 80 | M12 | 1 |
| HSK50A-SLA14-80 | 14 | 44 | 80 | M12 | 1 |
| HSK50A-SLA16-80 | 16 | 48 | 80 | M14 | 1 |
| HSK50A-SLA18-80 | 18 | 50 | 80 | M14 | 1 |
| HSK50A-SLA20-80 | 20 | 52 | 80 | M16 | 1 |
| HSK50A-SLA25-110 | 25 | 65 | 110 | M18*2 | 2 |
| HSK50A-SLA32-110 | 32 | 72 | 110 | M20*2 | 2 |
| HSK63A-SLA06-65 | 6 | 25 | 65 | M6 | 1 |
| HSK63A-SLA08-65 | 8 | 28 | 65 | M8 | 1 |
| HSK63A-SLA10-65 | 10 | 35 | 65 | M10 | 1 |
| HSK63A-SLA12-80 | 12 | 42 | 80 | M12 | 1 |
| HSK63A-SLA14-80 | 14 | 44 | 80 | M12 | 1 |
| HSK63A-SLA16-80 | 16 | 48 | 80 | M14 | 1 |
| HSK63A-SLA20-80 | 20 | 52 | 80 | M16 | 1 |
| HSK63A-SLA25-110 | 25 | 65 | 110 | M18*2 | 2 |
| HSK63A-SLA32-110 | 32 | 72 | 110 | M20*2 | 2 |
| HSK63A-SLA40-125 | 40 | 80 | 125 | M20*2 | 2 |
| HSK63A-SLA06-100 | 6 | 25 | 100 | M6 | 1 |
| HSK63A-SLA08-100 | 8 | 28 | 100 | M8 | 1 |
| HSK63A-SLA10-100 | 10 | 35 | 100 | M10 | 1 |
| HSK63A-SLA14-100 | 14 | 44 | 100 | M12 | 1 |
| HSK63A-SLA16-100 | 16 | 48 | 100 | M12 | 1 |
| HSK63A-SLA18-100 | 18 | 50 | 100 | M14 | 1 |
| HSK63A-SLA20-100 | 20 | 52 | 100 | M16 | 1 |
| HSK63A-SLA06-160 | 6 | 25 | 160 | M6 | 1 |
| HSK63A-SLA08-160 | 8 | 28 | 160 | M8 | 1 |
| HSK63A-SLA10-160 | 10 | 35 | 160 | M10 | 1 |
| HSK63A-SLA12-160 | 12 | 42 | 160 | M12 | 1 |
| HSK63A-SLA14-160 | 14 | 44 | 160 | M12 | 1 |
| HSK63A-SLA16-160 | 16 | 48 | 160 | M14 | 1 |
| HSK63A-SLA18-160 | 18 | 50 | 160 | M14 | 1 |
| HSK63A-SLA20-160 | 20 | 52 | 160 | M16 | 1 |
| HSK63A-SLA25-160 | 25 | 65 | 160 | M18*2 | 2 |
| HSK63A-SLA32-160 | 32 | 72 | 160 | M20*2 | 2 |
| HSK80A-SLA06-80 | 6 | 25 | 80 | M6 | 1 |
| HSK80A-SLA08-80 | 8 | 28 | 80 | M8 | 1 |
| HSK80A-SLA10-80 | 10 | 35 | 80 | M10 | 1 |
| HSK80A-SLA12-80 | 12 | 42 | 80 | M12 | 1 |
| HSK80A-SLA14-80 | 14 | 44 | 80 | M12 | 1 |
| HSK80A-SLA16-100 | 16 | 48 | 100 | M14 | 1 |
| HSK80A-SLA18-100 | 18 | 50 | 100 | M14 | 1 |
| HSK80A-SLA20-100 | 20 | 52 | 100 | M16 | 1 |
| HSK80A-SLA25-100 | 25 | 65 | 100 | M18*2 | 2 |
| HSK80A-SLA32-110 | 32 | 72 | 110 | M20*2 | 2 |
| HSK80A-SLA40-120 | 40 | 80 | 120 | M20*2 | 2 |
| HSK100A-SLA08-80 | 8 | 28 | 80 | M8 | 1 |
| HSK100A-SLA10-80 | 10 | 35 | 80 | M10 | 1 |
| HSK100A-SLA12-80 | 12 | 42 | 80 | M12 | 1 |
| HSK100A-SLA14-80 | 14 | 44 | 80 | M12 | 1 |
| HSK100A-SLA16-100 | 16 | 48 | 100 | M14 | 1 |
| HSK100A-SLA18-100 | 18 | 50 | 100 | M14 | 1 |
| HSK100A-SLA20-100 | 20 | 52 | 100 | M16 | 1 |
| HSK100A-SLA25-100 | 25 | 65 | 100 | M18*2 | 2 |
| HSK100A-SLA32-100 | 32 | 72 | 100 | M20*2 | 2 |
| HSK100A-SLA40-105 | 40 | 80 | 105 | M20*2 | 2 |
| HSK100A-SLA50-130 | 50 | 100 | 130 | M24*2 | 2 |
| HSK100A-SLA08-160 | 8 | 28 | 160 | M8 | 1 |
| HSK100A-SLA10-160 | 10 | 35 | 160 | M10 | 1 |
| HSK100A-SLA12-160 | 12 | 42 | 160 | M12 | 1 |
| HSK100A-SLA14-160 | 14 | 44 | 160 | M12 | 1 |
| HSK100A-SLA16-160 | 16 | 48 | 160 | M14 | 1 |
| HSK100A-SLA18-160 | 18 | 50 | 160 | M14 | 1 |
| HSK100A-SLA20-160 | 20 | 52 | 160 | M16 | 1 |
| HSK100A-SLA25-160 | 25 | 65 | 160 | M18*2 | 2 |
| HSK100A-SLA32-160 | 32 | 72 | 160 | M20*2 | 2 |
| HSK100A-SLA40-160 | 40 | 80 | 160 | M20*2 | 2 |
