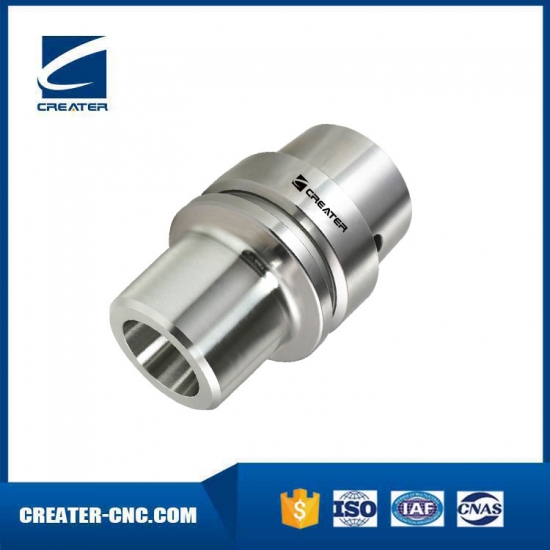

DIN69893 HSK-E Shrink Chuck Taper
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao Shanghai |
| Payment: | T/T |
- Specification
- Simple figure
- Precautions
INTRODUCTION
Material:Heat shrinkable steel
Hardness:HRC56-60
Runout: 0.003 mm
Blancing: G2.5/25000 RPM
Usage: Working with induction shrink machine for mounting straight shank tools.
Hardness:HRC56-60
Runout: 0.003 mm
Blancing: G2.5/25000 RPM
Usage: Working with induction shrink machine for mounting straight shank tools.

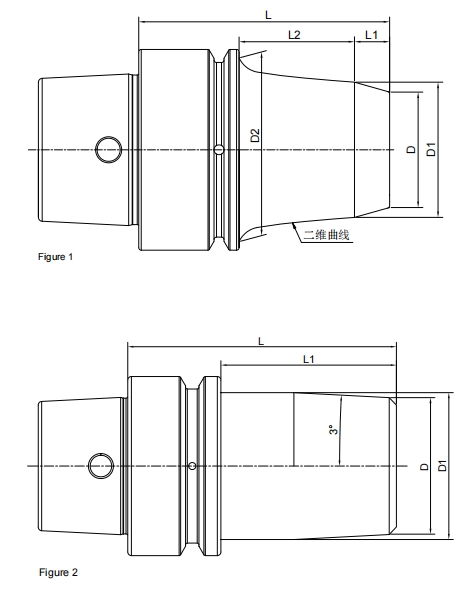

| Size | D | D1 | D2 | L | L1 | L2 | Figure |
| HSK32E-TSF06-50 | 19 | 26 | - | 50 | 7 | 23 | 1 |
| HSK40E-TSF06-50 | 19 | 23.5 | 34 | 50 | 7 | 23 | 1 |
| HSK40E-TSF08-50 | 23 | 27 | 34 | 50 | 7 | 23 | 1 |
| HSK50E-TSF06-55 | 19 | 24.6 | 42 | 55 | 7 | 22 | 1 |
| HSK50E-TSF08-55 | 23 | 28.1 | 42 | 55 | 7 | 22 | 1 |
| HSK50E-TSF12-75 | 38 | - | - | 75 | 49 | - | 2 |
