Quick Change Tapping Chuck
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening |
| Lead Time: | 5-40 Days |
| Payment: | TT in Advance |
- Specification

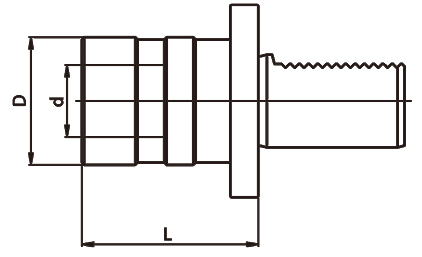

- Simple figure
- Precautions

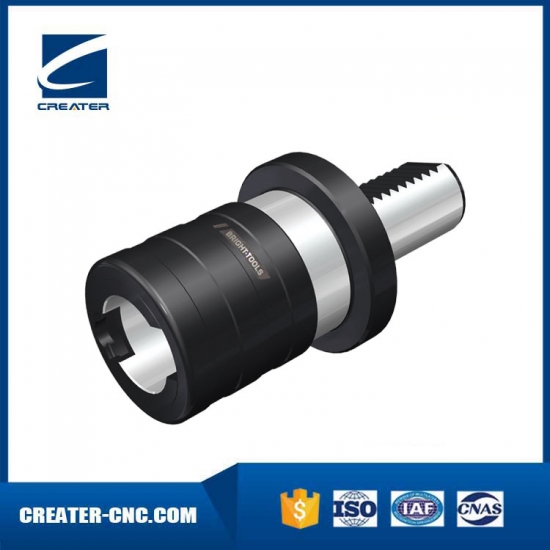

Quick Change Tapping Chuck with Length Compensation
VDI Tool Holder is a Quick Change Toolholding System, which provides a fast and accurate way of affixing tools to the Turret; Tool Changes are performed in seconds.
Metric sizes can be ordered directly, Inch sizes can be make by request.
Tapping Chuck VDI Tool Holder is manufactured by DIN 69880 standard with sizes as VDI20, VDI30, VDI40, VDI50 and VDI60.
| Size | Collet Size | d1 | d2 | d3 | d4 | l1 |
| VDI20-TC312-55 | 1 | 20 | 38 | 50 | 19 | 55 |
| VDI30-TC312-55 | 1 | 30 | 38 | 68 | 19 | 55 |
| VDI30-TC820-77 | 2 | 30 | 55 | 68 | 31 | 77 |
| VDI40-TC312-55 | 1 | 40 | 38 | 83 | 19 | 55 |
| VDI40-TC820-77 | 2 | 40 | 55 | 83 | 31 | 77 |
| VDI40-TC1433-110 | 3 | 40 | 79 | 83 | 48 | 110 |
| VDI50-TC312-55 | 1 | 50 | 38 | 98 | 19 | 55 |
| VDI50-TC820-77 | 2 | 50 | 55 | 98 | 31 | 77 |
| VDI50-TC1433-110 | 3 | 50 | 79 | 98 | 48 | 110 |
