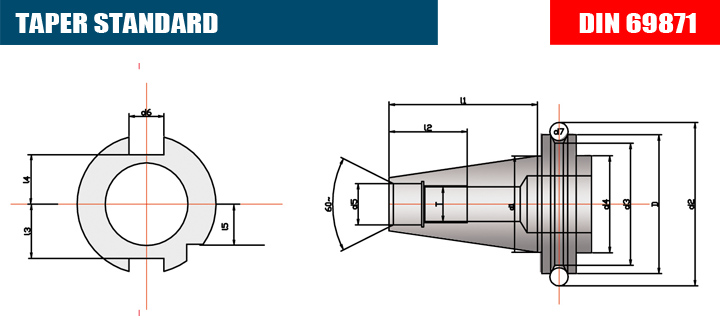

| Model | D | d1 | d2 | d3 | d4 | d5 | d6 | d7 | l1 | l2 | l3 | l4 | l5 | e1 | e2 |
| SK30 | 50 | 31.75 | 59.3 | 44.3 | 45 | 13 | 16.1 | 4 | 47.8 | 24 | 19 | 16.4 | 15 | 21 | 5 |
| SK40 | 63.55 | 44.45 | 72.3 | 56.25 | 50 | 17 | 16.1 | 4 | 68.4 | 32 | 25 | 22.8 | 18.5 | 27 | 5 |
| SK50 | 97.5 | 69.85 | 107.25 | 91.25 | 80 | 25 | 25.7 | 6 | 101.8 | 47 | 37.7 | 35.5 | 30 | 42 | 7 |
ISO30, ISO40, ISO50, SK30, SK40, SK50 Tool Holders
Manufactured from alloy steel with good core strength and long wear life.
Tool Holder Standard is DIN 69871 SK.
Toolholder Taper ground to AT3 or better accuracy standard for maximum contact with spindle.
-
DIN 69871 SK Alignment Tool for ATC Arm
Alignment Tool For ATC Arm
SK-ATC Arm Alignment tools is used to correct the Arm position, Long-term use of the Arm will cause different degrees of wear and deformation, so that the tool cannot be effectively clamped, stored in the tool warehouse, and the Alignment tool can effectively adjust the Arm position to solve this problem
-
DIN 69871 SK Boring Bar Blank
Boring Bar Blank
Tool holder blanks is widely used for secondary processing
Taper with collar, hardened and ground, Hardness 50-55HRC.
Soft shank for further machining, Hardness 35-45HRC
-
DIN 69871 SK UM Adjustable Tool Holder
UM Adjustable Tool Holder
Extremely tight bore tolerances
High process reliability can be ensured
-
DIN 69871 SKRunout Adjustable Flange Adapter
Runout Adjustable Flange Adapter
Flange tool holders need to be used in conjunction with flange cutters.
The flange holder can adjust the tool to within 1u jump through the handle screw.
Generally used in the manufacture of high precision machining industries such as automobiles/aerospace
-
DIN 69871 SK Screw-in Milling Cutter Holder
Screw-in Milling Cutter Holder
SK SOM tool holder is connected the tools directly, this improve processing accuracy, rigidity and easy to make tools exchange
1. High precision
2. High rigidity, improving quality and reducing consumption.
3. Improve efficiency.
4. Convenience
-
DIN 69871 SK Screw-in Milling Cutter Holder
SK-SOM Tool holder is connected the tools directly, this improve processing accuracy, rigidity and easy to make tools exchange
1. High precision
2. High rigidity, improving quality and reducing consumption.
3. Improve efficiency.
4. Convenience
-
DIN 69871 SK Precision Drill Chuck Holder
Precision Drill Chuck Holder
SK-CPU Drill chuck ,worm and gear structure greatly increase the clamping power. integral structure increase the rigidity and accuracy. Runout reach 0.05mm. The claw use Nitriding process increase the wear resistance and longer tool life
1)worm and gear structure greatly increase the clamping power. integral structure increase the rigidity and accuracy
2)Runout reach 0.05mm
3)Claw use Nitriding Porcess
-
DIN 69871 SK APU Drill Chuck Holder
APU Drill Chuck Holder
SK-APU Used for clamping and fixing drill bits, APU tool handle can be adjusted by a hook wrench to realize clamping and releasing cutting tools, easy to operate and easy to replace tools.
-
DIN 69871 SK Tool Holder Adatper Sleeve
Tool Holder Adapter Sleeve
Copy spindle connection, stronger rigidity and higher precision.
1) Can be used for tool setting instrument
2) Can be used as a fixture, quick clamping improves efficiency.
3) It can be applied to non-standard tool processing to save costs.
-
DIN 69871 SK Power Milling Chuck
End Mill Holder Whistle Notch
End mill holders hold cutting tools with more rigidity than collets. Available in Weldon type for using tools with Weldon flats.
Easy to use for clamping tools and disassemble tools.
This clamping system assures the end mill cannot spin in the holder during a heavy cut as is possible in a collet.
