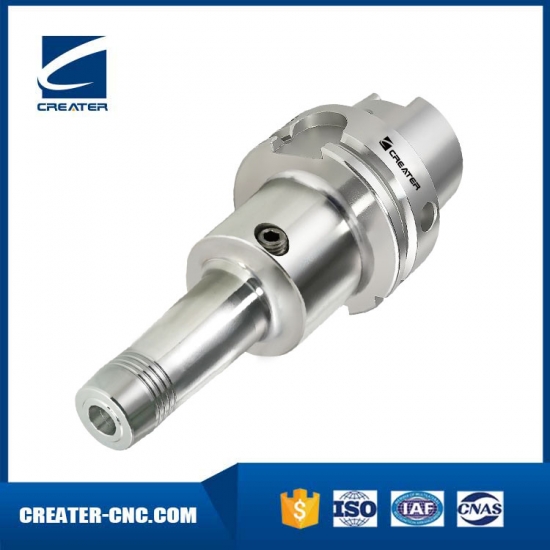

DIN69893 HSK Hydraulic Chuck,for Mould Tool,Suppliers,Manufacturers,Wholesalers

HSK type Hydraulic holder is popular used by woodworking industry, With a few simple actions, the tool can be changed quickly and rocess reliably. Insert the tool into the hydraulic expansion toolholder, use an Allen key to screw in the clamping screw to dead stop – finished! It is ime savings due to reduced set-up times and no investment and ergy costs for additional clamping devices.

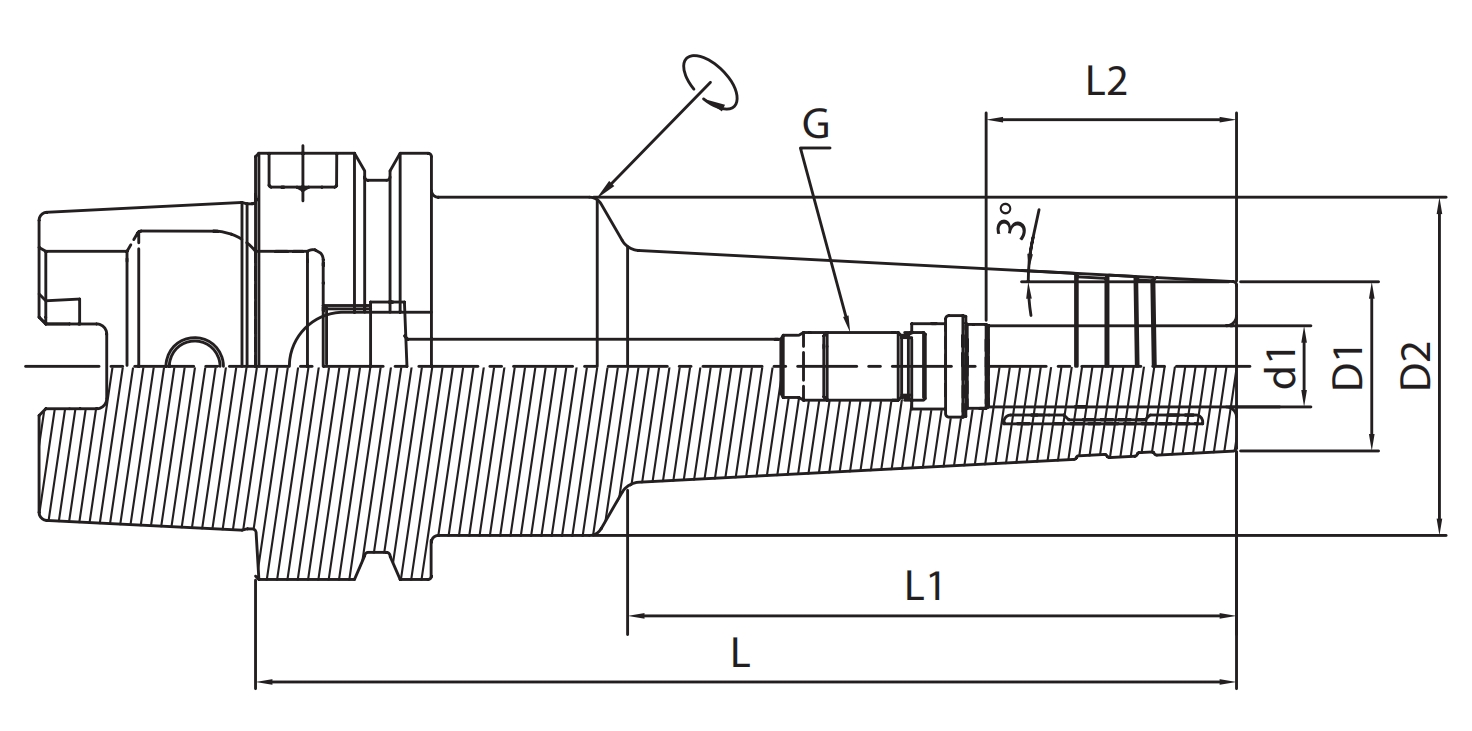

Size	d1	D1	D2	L	L1	L2	G
HSK63A-HYM6-145	6	20	50	145	90	27	M5
HSK63A-HYM8-145	8	22	50	145	90	27	M6
HSK63A-HYM10-145	10	24	50	145	90	32	M8×1
HSK63A-HYM12-145	12	25	50	145	90	37	M10×1
HSK63A-HYM16-145	16	32	50	145	90	42	M12×1
HSK63A-HYM20-145	20	34	50	145	90	42	M16×1

HSK100A-HYM6-150	6	20	50	150	90	27	M5
HSK100A-HYM8-150	8	22	50	150	90	27	M6
HSK100A-HYM10-150	10	24	50	150	90	32	M8×1
HSK100A-HYM12-150	12	25	50	150	90	37	M10×1
HSK100A-HYM16-150	16	32	50	150	90	42	M12×1
HSK100A-HYM20-150	20	34	50	150	90	42	M16×1

High precision 0.003mm
Better anti-vibration result
High precision machining
