Hydraulic Chuck MAS403
/uploadfile/202308/16/1a9c6d8dc8066eaac8fb761a8ac2f014_square.jpg

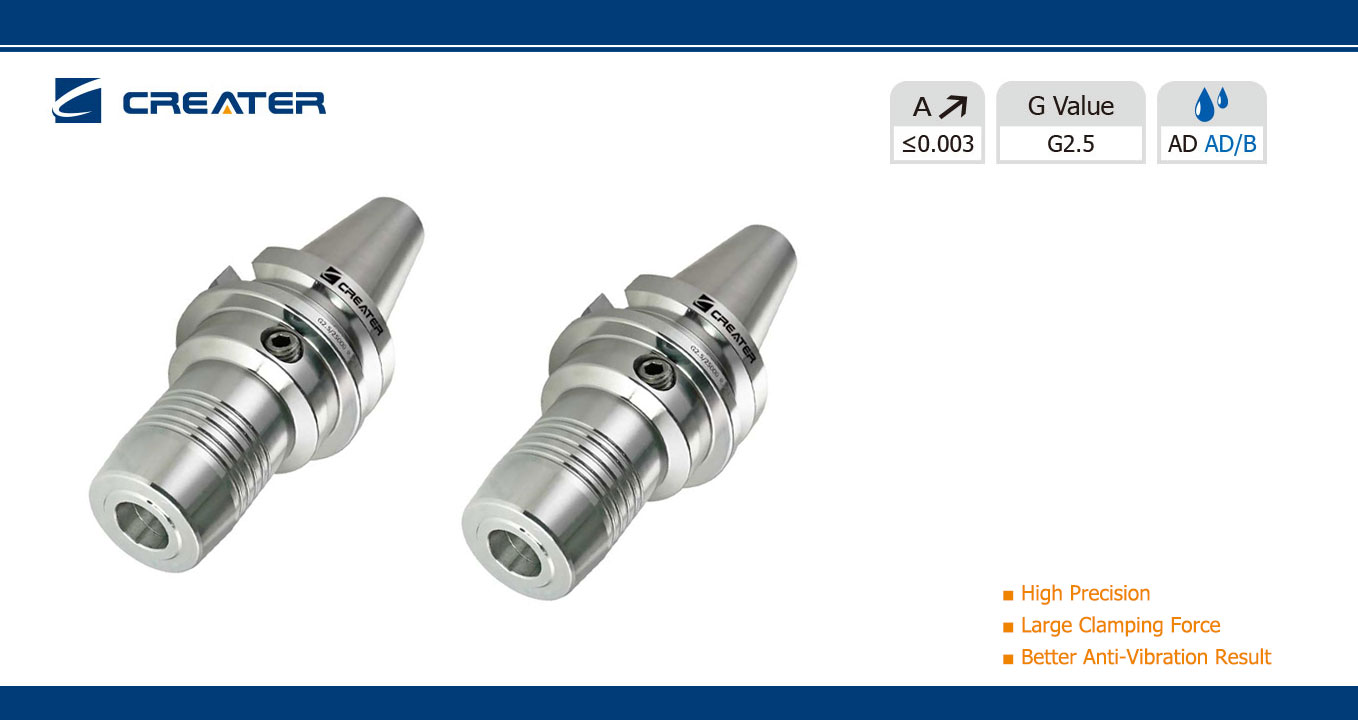

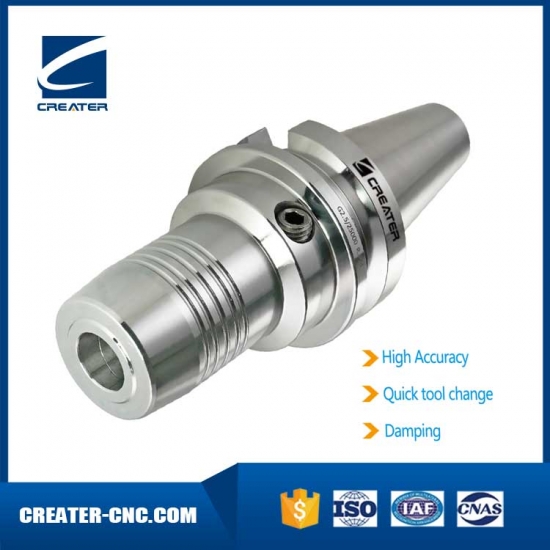

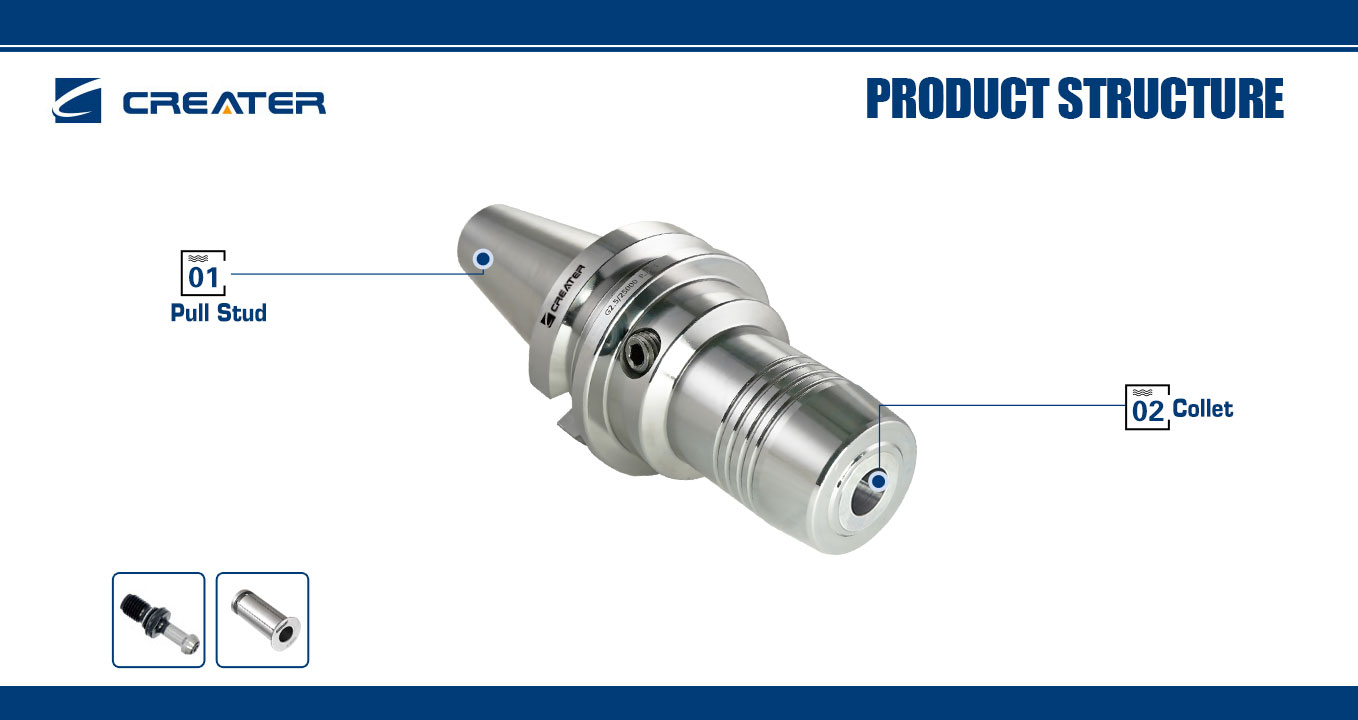

Hydraulic Chuck MAS403
Brand: creater
contact now
  • Specification
  • Simple figure
  • Precautions











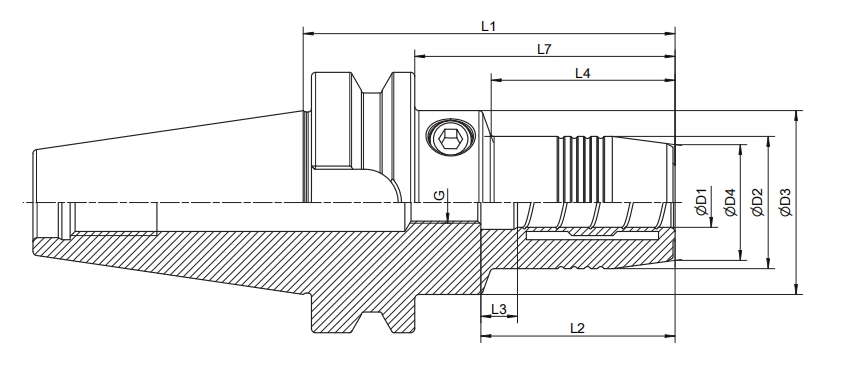

Size d D D1 L L1 L2 Screw
BT30-HY06-70 6 26 44.5 70 29.5 27 M5x0.8
BT30-HY08-70 8 28 44.5 70 30 27 M6x1.0
BT30-HY10-75 10 30 44.5 75 31 32 M8x1.0
BT30-HY12-85 12 32 45 85 45 37 M10x1.0
BT30-HY14-85 14 34 45 85 45 37 M10x1.0
BT30-HY16-90 16 38 45 90 50 42 M10x1.0
BT30-HY18-90 18 40 45 90 50 42 M10x1.0
BT30-HY20-90 20 42 45 90 50 42 M6x1.0
BT40-HY06-90 6 26 44.5 90 43 27 M5x0.8
BT40-HY08-90 8 28 44.5 90 44.5 27 M6x1.0
BT40-HY10-90 10 30 44.5 90 44.5 32 M8x1.0
BT40-HY12-90 12 32 44.5 90 44.5 37 M10x1.0
BT40-HY14-90 14 34 44.5 90 44.5 37 M10x1.0
BT40-HY16-90 16 38 44.5 90 47.5 42 M12x1.0
BT40-HY18-90 18 40 44.5 90 47.5 42 M12x1.0
BT40-HY20-90 20 42 44.5 90 47.5 42 M16x1.0
BT40-HY25-100 25 50 60 100 47.5 48 M16x1.0
BT40-HY32-105 32 60 - 105 - 55 M16x1.0
BT50-HY06-90 6 26 44.5 90 34 27 M5×0.8
BT50-HY08-90 8 28 44.5 90 34 27 M6×1.0
BT50-HY10-90 10 30 44.5 90 34 32 M8×1.0
BT50-HY12-90 12 32 44.5 90 34 37 M10×1.0
BT50-HY14-90 14 34 44.5 90 34 37 M10×1.0
BT50-HY16-90 16 38 44.5 90 34 42 M12×1.0
BT50-HY18-90 18 40 44.5 90 34 42 M12×1.0
BT50-HY20-90 20 42 44.5 90 34 42 M16×1.0
BT50-HY25-105 25 57 63 105 52 48 M16×1.0
BT50-HY32-115 32 64 75 115 62 55 M16×1.0
BT50-HY06-120 6 26 44.5 120 34 27 M5×0.8
BT50-HY08-120 8 28 44.5 120 34 27 M6×1.0
BT50-HY10-120 10 30 44.5 120 34 32 M8×1.0
BT50-HY12-120 12 32 44.5 120 34 37 M10×1.0
BT50-HY14-120 14 34 44.5 120 34 37 M10×1.0
BT50-HY16-120 16 38 44.5 120 34 42 M12×1.0
BT50-HY18-120 18 40 44.5 120 34 42 M12×1.0
BT50-HY20-120 20 42 44.5 120 34 42 M16×1.0
BT50-HY06-150 6 26 44.5 150 34 27 M5×0.8
BT50-HY08-150 8 28 44.5 150 34 27 M6×1.0
BT50-HY10-150 10 30 44.5 150 34 32 M8×1.0
BT50-HY12-150 12 32 44.5 150 34 37 M10×1.0
BT50-HY14-150 14 34 44.5 150 34 37 M10×1.0
BT50-HY16-150 16 38 44.5 150 34 42 M12×1.0
BT50-HY18-150 18 40 44.5 150 34 42 M12×1.0
BT50-HY20-150 20 42 44.5 150 34 42 M16×1.0
BT50-HY25-150 25 57 63 150 97 48 M16×1.0
BT50-HY32-150 32 64 75 150 97 55 M16×1.0

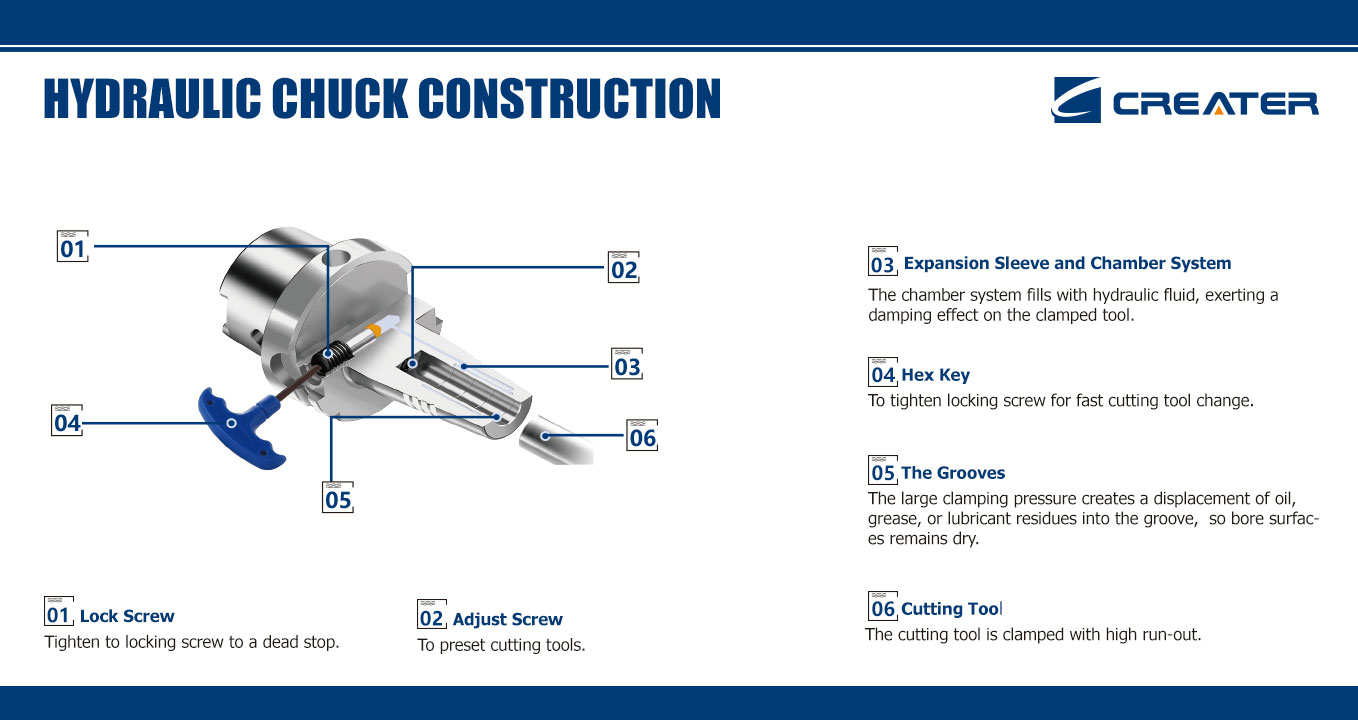

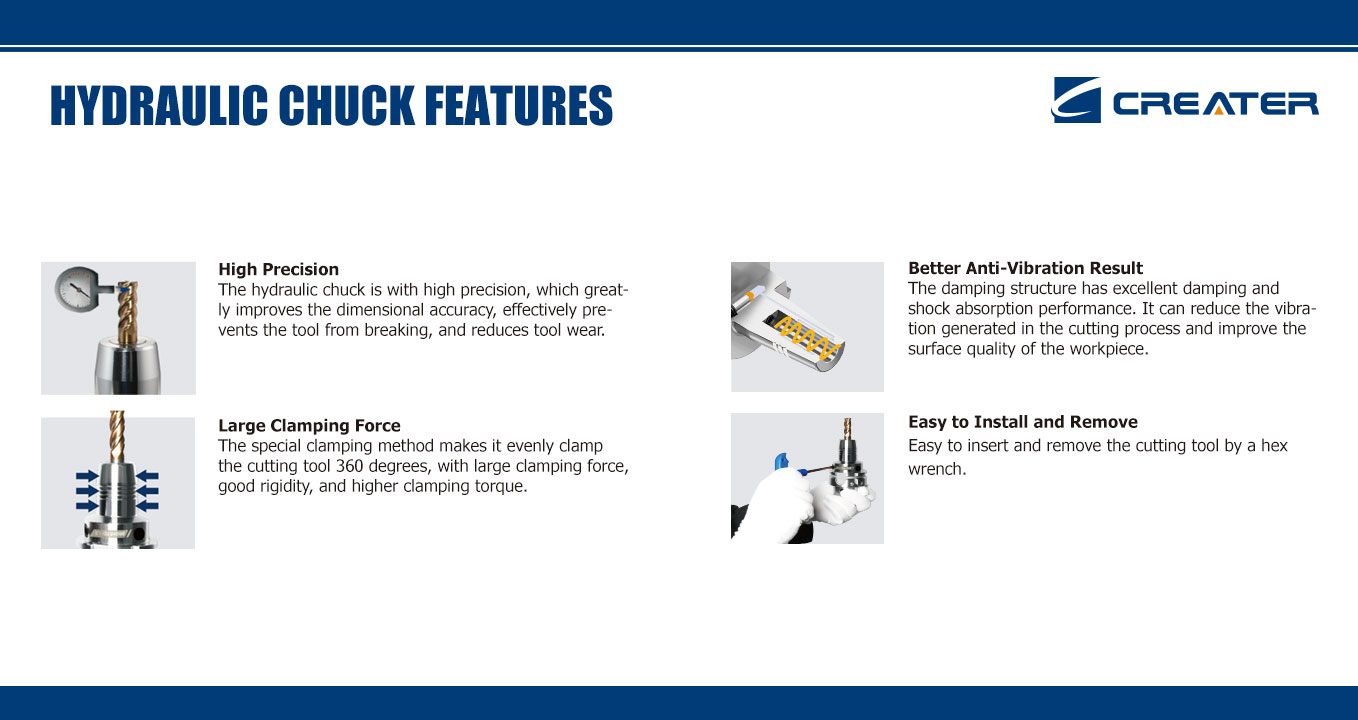

The hydraulic collet shank is very different from the traditional one, only one pressure bolt is used for tightening. When the bolt is tightened, the piston seal is pushed to create a hydraulic oil pressure in the handle, which is evenly transmitted from all sides (360°) to the steel expansion sleeve, and the expansion wall clamps the tool.

Different tools can be held by hydraulic collet, no other auxiliary tools are required.
