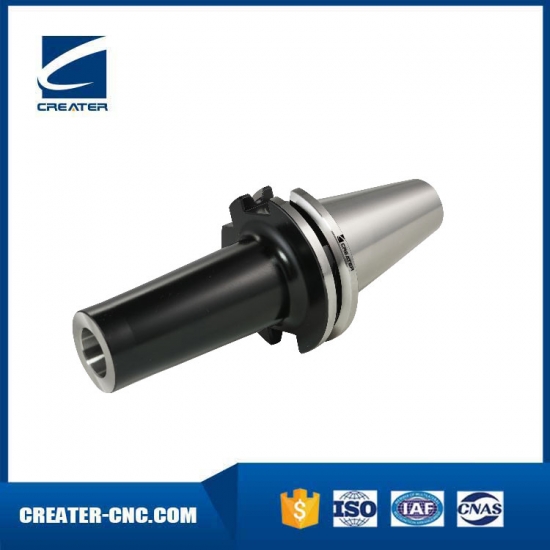

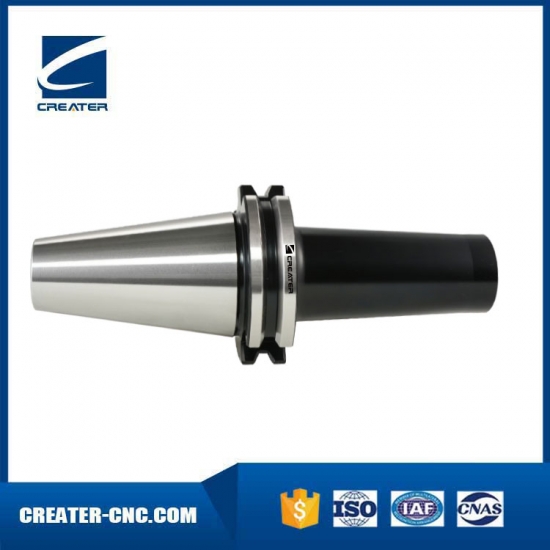

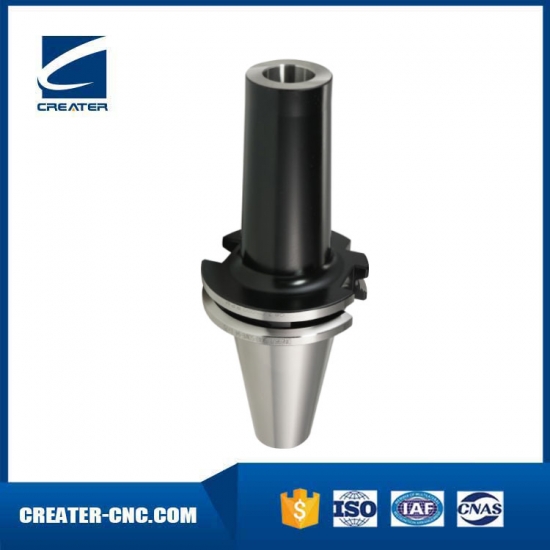

DIN 69871 SK Screw-in Milling Cutter Holder
Brand: creater
contact now
  • Specification
  • Simple figure
  • Precautions

Screw-in Milling Holder

SK-SOM Tool holder is connected the tools directly, this improve processing accuracy, rigidity  and easy to make tools exchange

1. High precision

2. High rigidity, improving quality and reducing consumption.

3. Improve efficiency.

4. Convenience

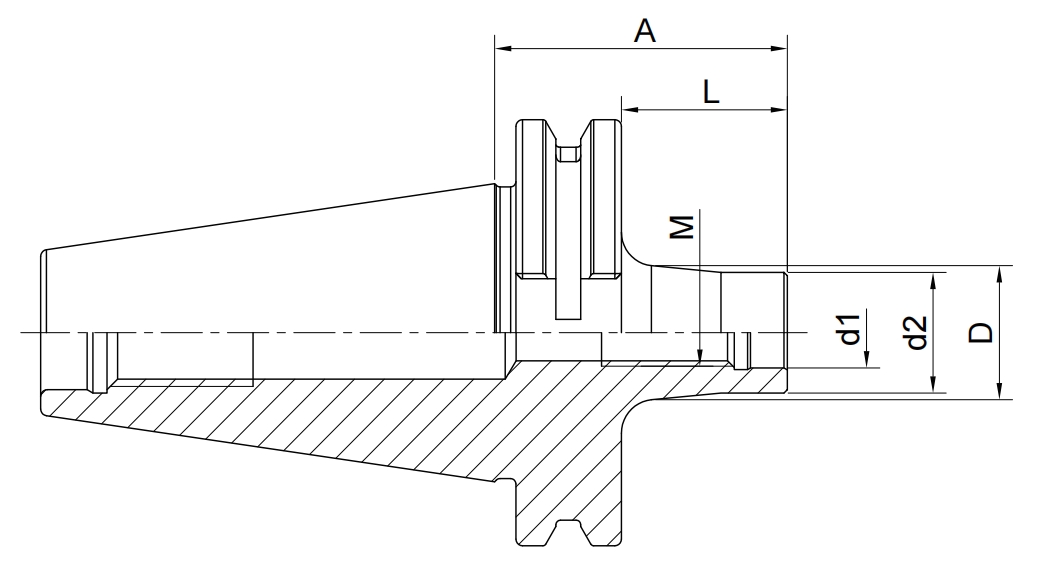

Size M d1 d2 A L D
SK40-SOM08-44  L=25 8 8.5 14.5 44 25 15
SK40-SOM08-69  L=50 8 8.5 14.5 69 50 23
SK40-SOM08-94  L=75 8 8.5 14.5 94 75 23
SK40-SOM08-119  L=100 8 8.5 14.5 119 100 25
SK40-SOM10-24  L=5 10 10.5 18 24 5 18
SK40-SOM10-44  L=25 10 10.5 18 44 25 20
SK40-SOM10-69  L=50 10 10.5 18 69 50 23
SK40-SOM10-94  L=75 10 10.5 18 94 75 28
SK40-SOM10-119  L=100 10 10.5 18 119 100 32
SK40-SOM10-169  L=150 10 10.5 18 169 150 36.5
SK40-SOM12-24  L=5 12 12.5 21 24 5 21
SK40-SOM12-44  L=25 12 12.5 21 44 25 24
SK40-SOM12-69  L=50 12 12.5 21 69 50 24
SK40-SOM12-94  L=75 12 12.5 21 94 75 31
SK40-SOM12-119  L=100 12 12.5 21 119 100 33
SK40-SOM12-144  L=125 12 12.5 21 144 125 36
SK40-SOM12-169  L=150 12 12.5 21 169 150 40
SK40-SOM16-24  L=5 16 17 29 24 5 29
SK40-SOM16-44  L=25 16 17 29 44 25 29
SK40-SOM16-69  L=50 16 17 29 69 50 34
SK40-SOM16-94  L=75 16 17 29 94 75 34
SK40-SOM16-119  L=100 16 17 29 119 100 36
SK40-SOM16-144  L=125 16 17 29 144 125 40
SK40-SOM16-169  L=150 16 17 29 169 150 42.5
Size M d1 d2 A L D
SK50-SOM08-69  L=50 8 8.5 14.5 69 50 23
SK50-SOM08-119  L=100 8 8.5 14.5 119 100 25
SK50-SOM08-169  L=150 8 8.5 14.5 169 150 30
SK50-SOM10-69  L=50 10 10.5 18 69 50 23
SK50-SOM10-119  L=100 10 10.5 18 119 100 32
SK50-SOM10-169  L=150 10 10.5 18 169 150 36.5
SK50-SOM12-69  L=50 12 12.5 21 69 50 24
SK50-SOM12-119  L=100 12 12.5 21 119 100 33
SK50-SOM12-169  L=150 12 12.5 21 169 150 40
SK50-SOM16-69  L=50 16 17 29 69 50 34
SK50-SOM16-119  L=100 16 17 29 119 100 36
SK50-SOM16-169  L=150 16 17 29 169 150 42.5
