Collet Chuck without Drive Slots
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening, Sandblasting, Plating |
| Lead Time: | 25 days |
| Payment: | TT |
- Specification
- Simple figure
- Precautions

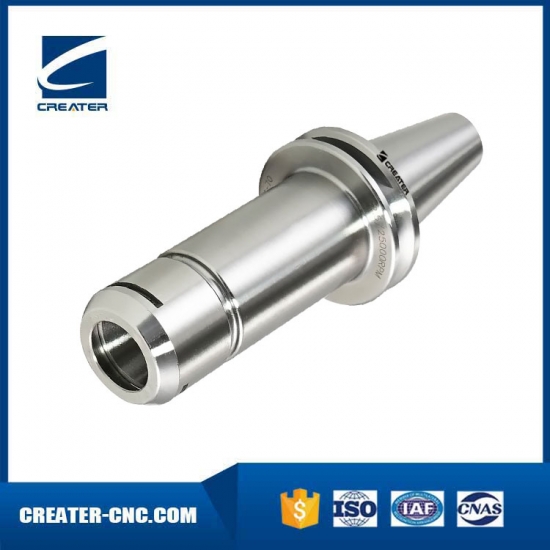

DIN69871 ER Collet Chuck DIN6499 without Drive Slots
Taper: DIN69871
Runout: <0.005mm
Taper Torlerabce: <AT3
Balancing: G6.3/15000; G2.5/25000
Surface Treatment: Blackening; Sandblasting; Plating
Application: Collet chucks for collets DIN 6499 (ISO 15488) ER system without drive slots are for mounting straight shank tools for woodworking in collets DIN 6499.

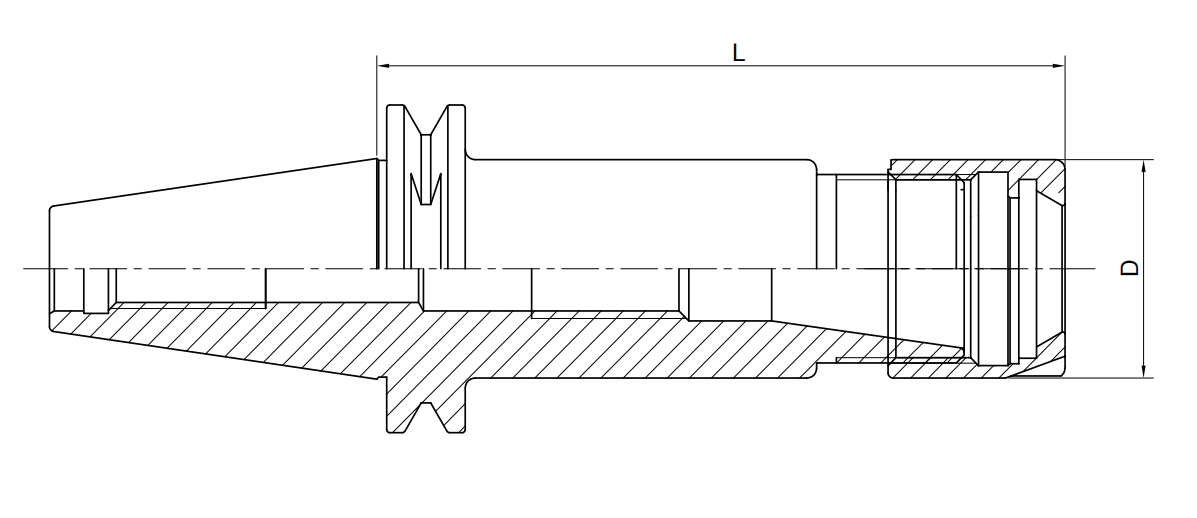

| Size | D | L | Capacity |
| ISO10-ER11A-25 | 19 | 25 | 1-7 |
| ISO20-ER16A-35 | 28 | 35 | 1-10 |
| ISO20-ER20A-35 | 34 | 35 | 1-13 |
| ISO25-ER16A-35 | 28 | 35 | 1-10 |
| ISO25-ER20A-35 | 34 | 35 | 1-13 |
| ISO30-ER16A-50 | 28 | 50 | 1-10 |
| ISO30-ER20A-50 | 34 | 50 | 1-13 |
| ISO20-ER16MS-35 | 22 | 35 | 1-10 |
| ISO20-ER20MS-35 | 28 | 35 | 1-13 |
| ISO25-ER16MS-35 | 22 | 35 | 1-10 |
| ISO25-ER20MS-35 | 28 | 35 | 1-13 |
| ISO25-ER25MS-35 | 35 | 35 | 2-16 |
| ISO10-ER11M-25 | 16 | 25 | 1-7 |
| ISO20-ER20M-35 | 28 | 35 | 1-13 |
| ISO25-ER20M-35 | 28 | 35 | 1-13 |
| ISO30-ER25M-50 | 35 | 50 | 2-16 |
| ISO25-ER25-35 | 42 | 35 | 2-16 |
| ISO30-ER25-50 | 42 | 50 | 2-16 |
| ISO30-ER32-50 | 50 | 50 | 2-20 |
| ISO30-ER40-60 | 63 | 60 | 3-26 |
