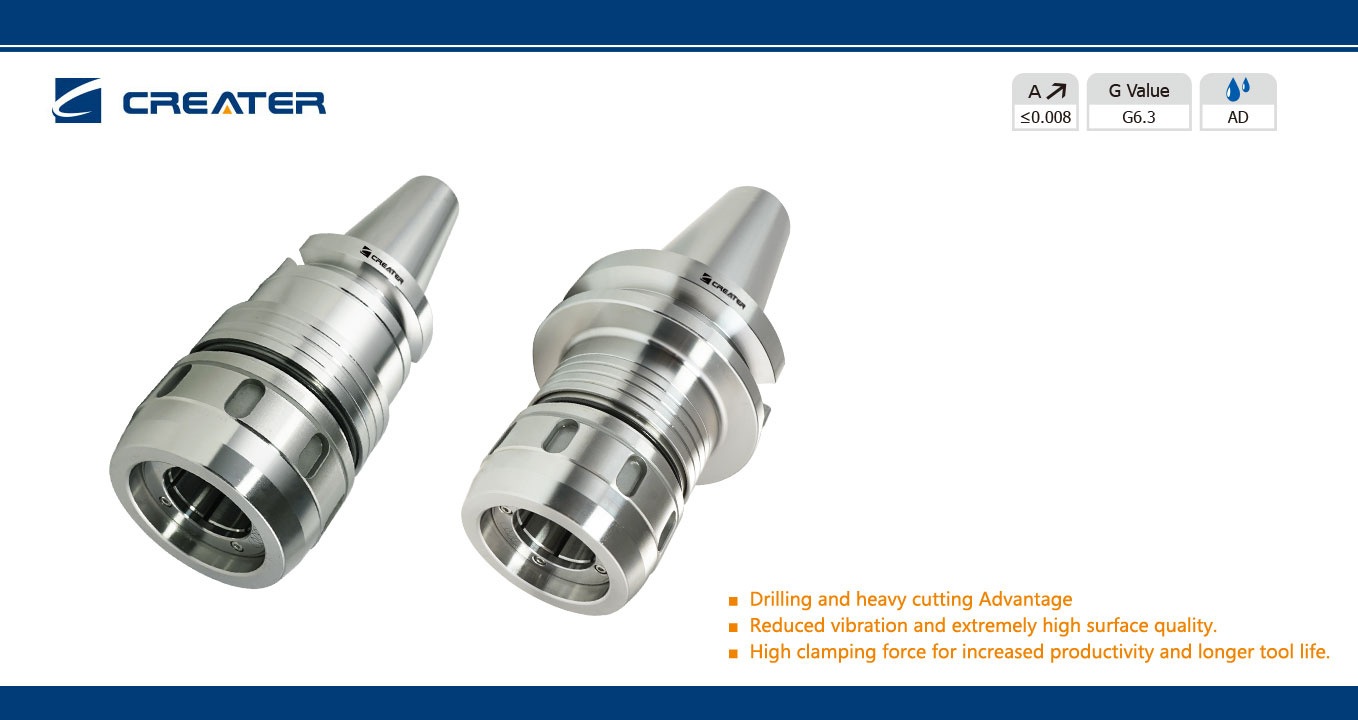

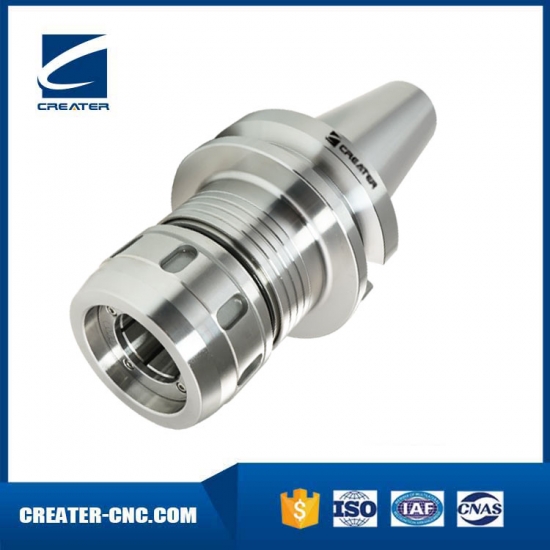

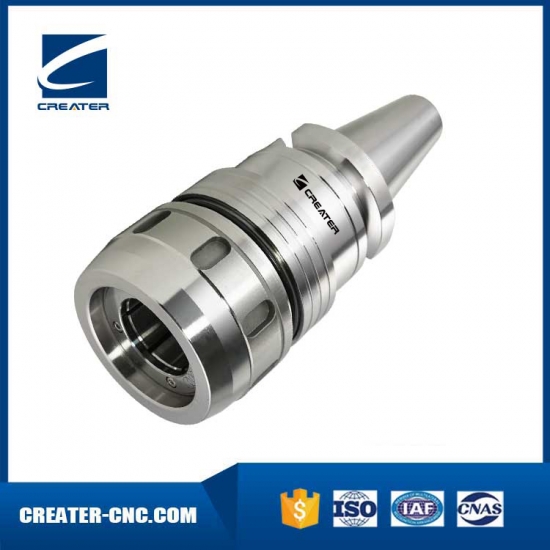

Power Milling Chuck

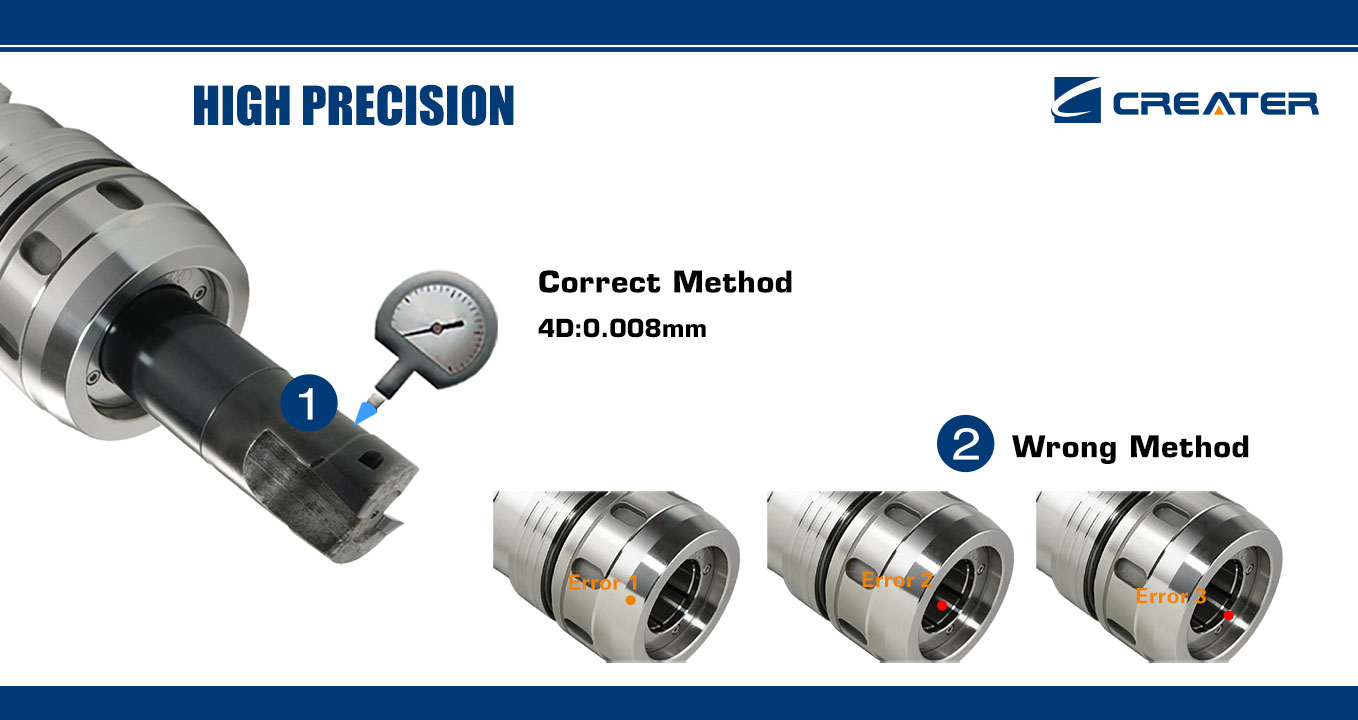

Accuracy: 0.005-0.01mm
7/24 Taper: AT3
Coolant: AD

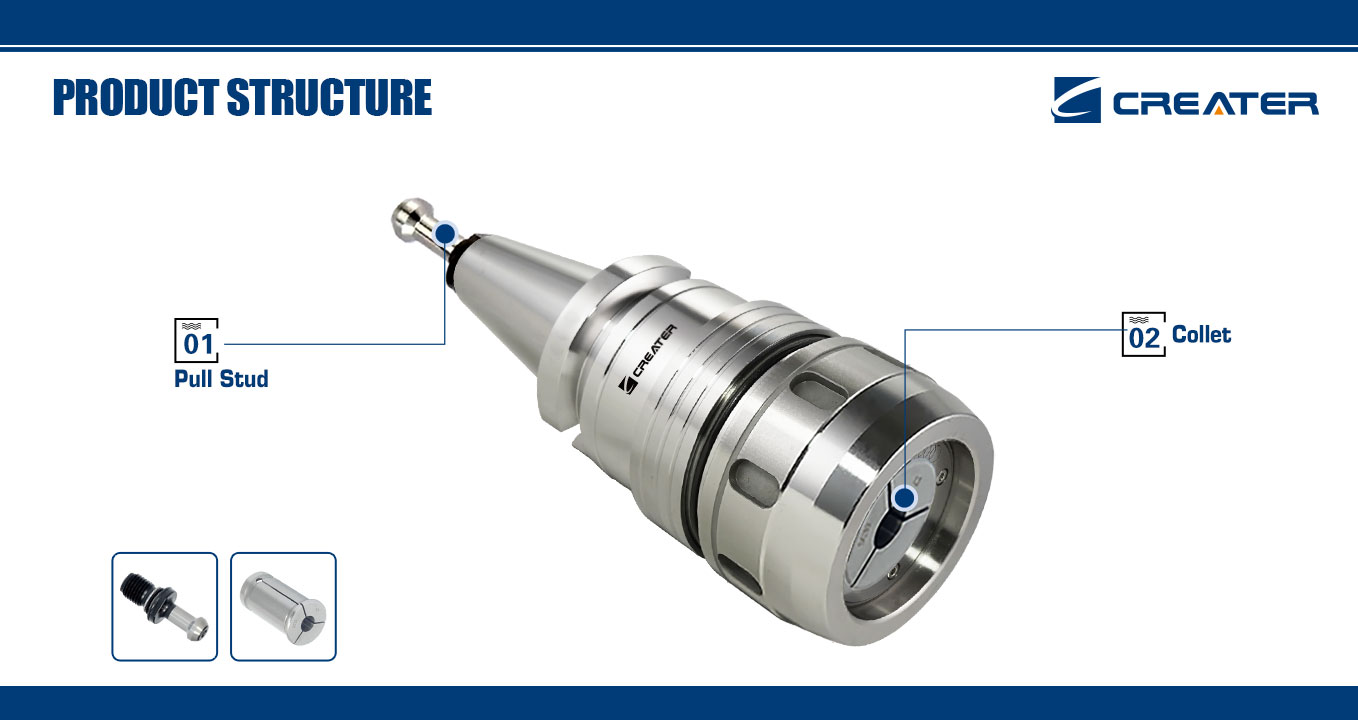

Use: For mounting shank tools in collets, for precision
milling and heavy metal working

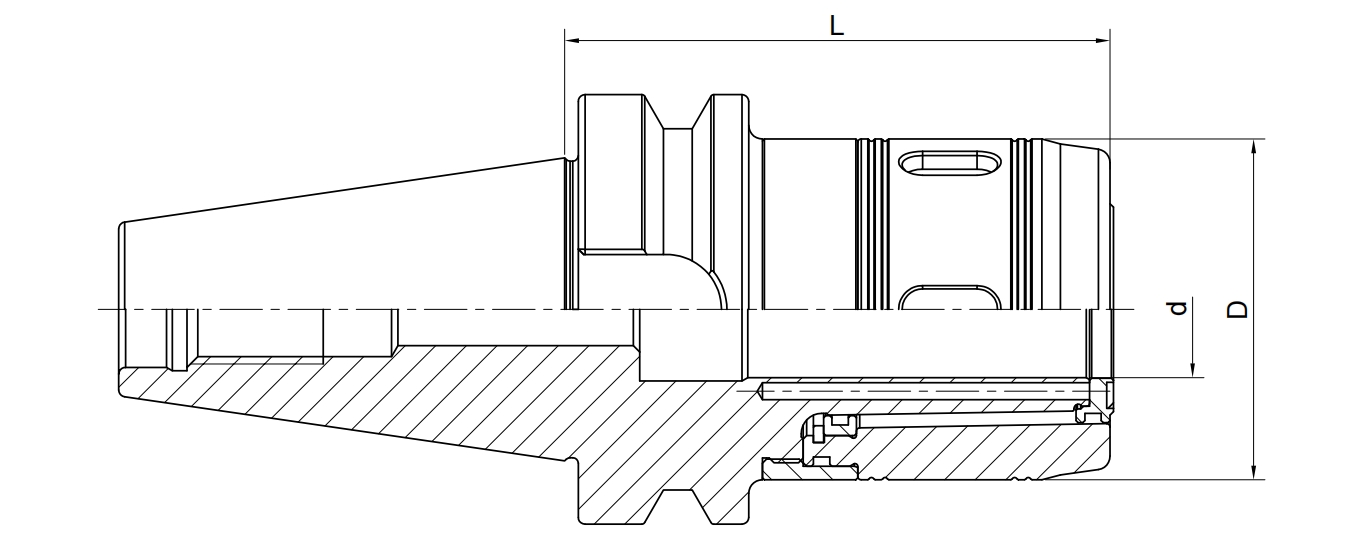

Size
d
D
L
Capacity
BT30-HC20-80
20
50
80
3-16; 20
BT30-HC25-90
25
59
90
3-20; 25
BT30-HC32-110
32
72
110
3-25; 32
BT40-HC20-90
20
50
90
3-16; 20
BT40-HC25-100
25
59
100
3-20; 25
BT40-HC32-90
32
72
90
3-25; 32
BT40-HC32-105
32
72
105
3-25; 32
BT40-HC32-165
32
72
165
3-25; 32
BT40-HC42-130
42
99
130
3-32; 42
BT50-HC20-105
20
50
105
3-16; 20
BT50-HC25-105
25
59
105
3-20; 25
BT50-HC32-110
32
72
110
3-25; 32
BT50-HC42-110
42
99
110
3-32; 42
BT50-HC32-165
32
72
165
3-25; 32
BT50-HC32-200
32
72
200
3-25; 32
BT50-HC32-250
32
72
250
3-25; 32
BT50-HC32-300
32
72
300
3-25; 32
