DIN 69871 SK Alignment Tool for ATC Arm
Brand: creater
contact now
  • Specification
  • Simple figure
  • Precautions

Alignment Tool For ATC Arm

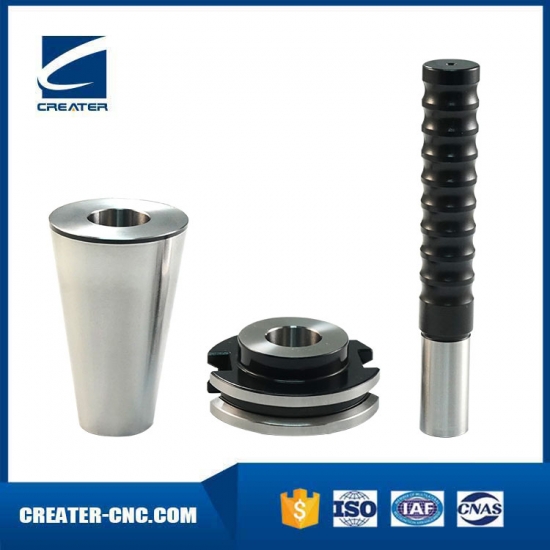

SK-ATC Arm Alignment tools is used to correct the Arm position, Long-term use of the Arm will cause different degrees of wear and deformation, so that the tool cannot be effectively clamped, stored in the tool warehouse, and the Alignment tool can effectively adjust the Arm position to solve this problem

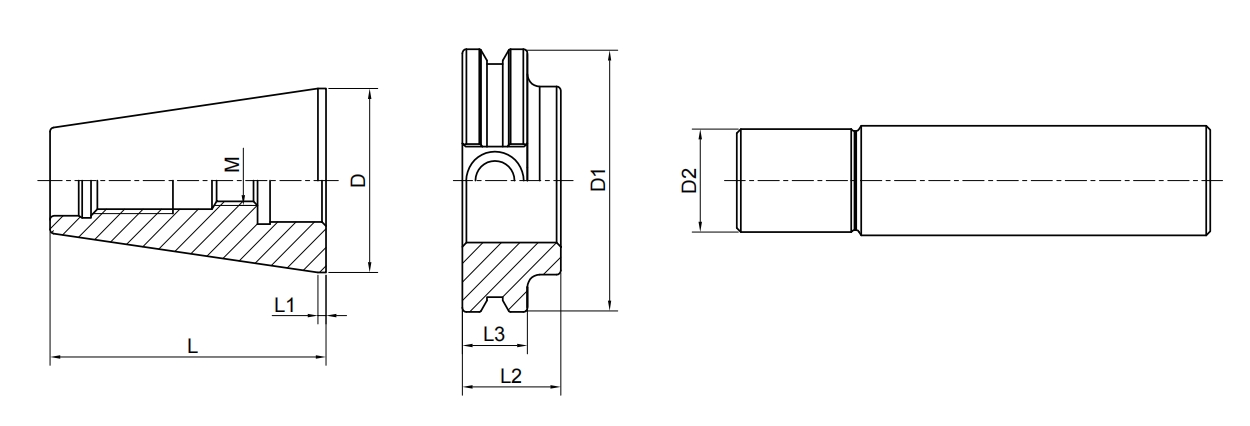

Size D D1 D2 L L1 L2 L3 M
SK30-ATC-18D 31.75 50 18 51 3.2 20 15.9 M12
SK40-ATC-20D 44.45 63.55 20 71.6 3.2 25 15.9 M12
SK50-ATC-28D 69.85 97.5 28 104.95 3.2 35 15.9 M16
