Material:Heat shrinkable steel
Hardness:HRC56-60

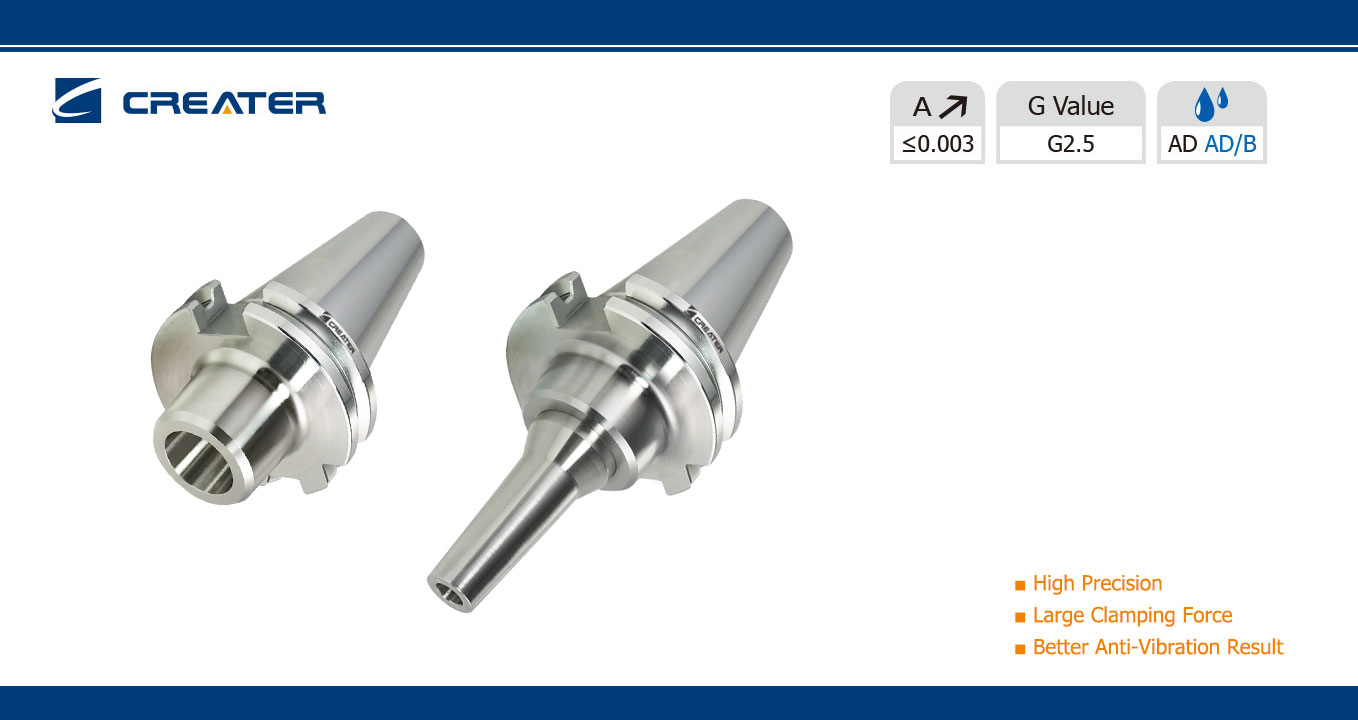

Runout: 0.003 mm
Blancing: G2.5/25000 RPM

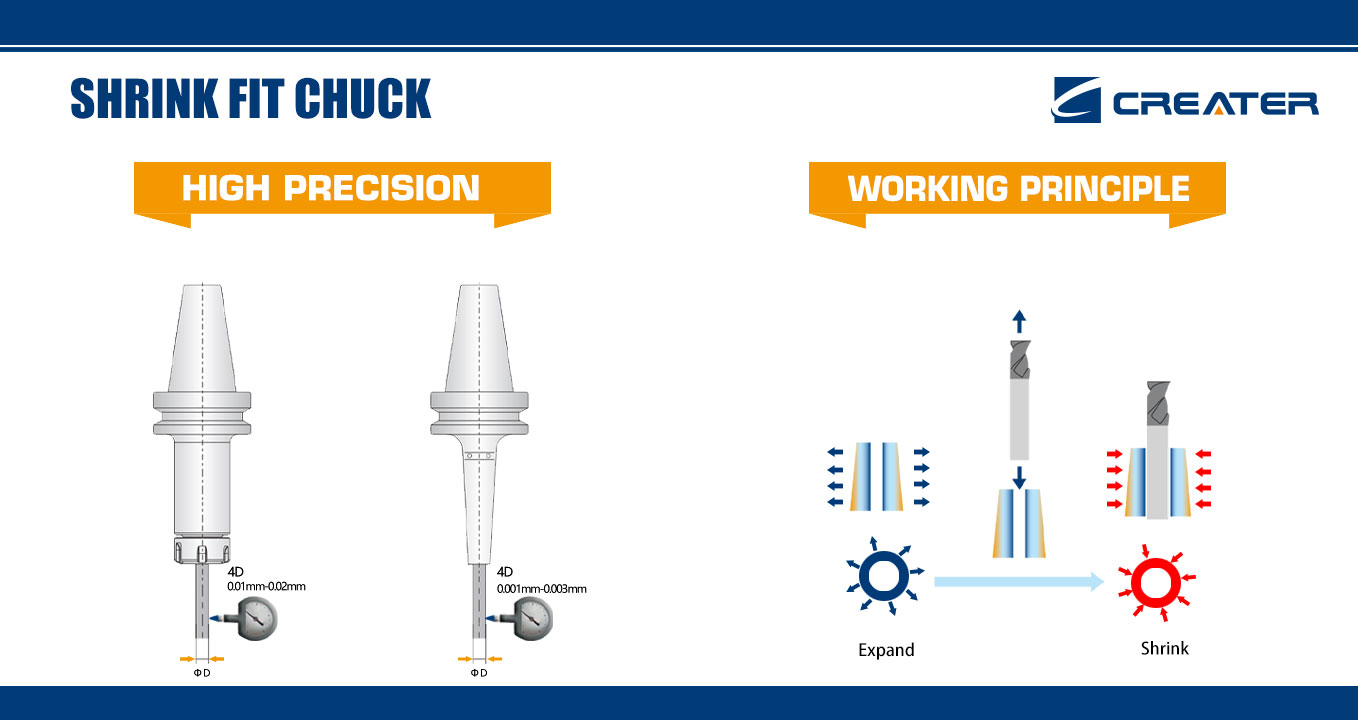

Usage: Working with induction shrink machine for mounting straight shank tools.
-
Contact us
- Office Address: 253000, Chongde 5th Avenue, Gaotie New District, Dezhou, China
- Tel: +86-534-8127588
- Mob: +86-18865728871
- Email: sales@bright-tools.com
- Skype: sdjinjie101
Products

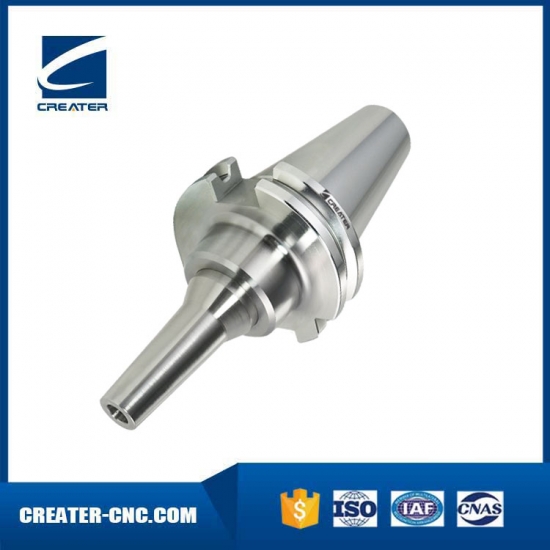

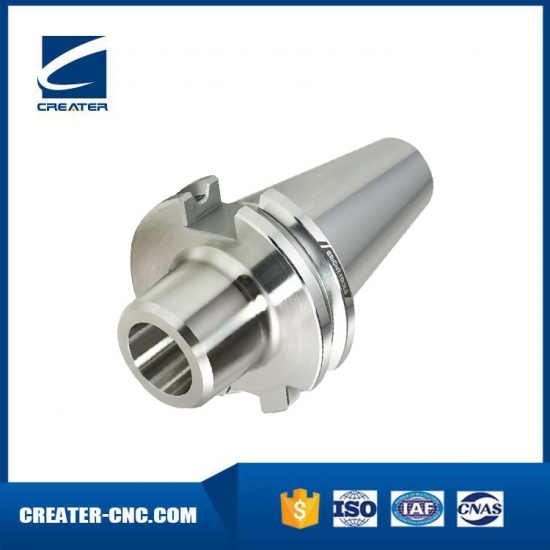

DIN 69871 Shrink Chuck Taper
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao Shanghai |
| Payment: | T/T |
- Specification
- Simple figure
- Precautions
INTRODUCTION

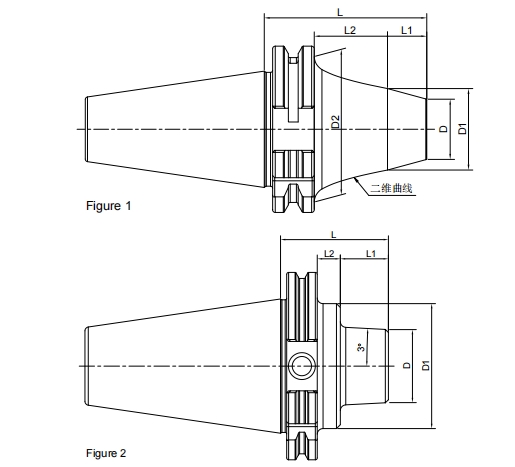

| Size | D | D1 | D2 | L | L1 | L2 | Figure |
| SK30-TSF06-35 | 19 | - | 34 | 35 | 15.9 | - | 1 |
| SK30-TSF08-35 | 23 | - | 34 | 35 | 15.9 | - | 1 |
| SK30-TSF12-35 | 38 | - | - | 35 | 15.9 | - | 2 |
| SK40-TSF08-40 | 23 | - | 50 | 40 | 20.9 | - | 1 |
| SK40-TSF12-45 | 38 | - | - | 45 | 25.9 | - | 2 |
| SK40-TSF12-75 | 38 | - | - | 75 | 55.9 | - | 2 |
| SK40-TSF12-135 | |||||||
| SK50-TSF12-75 | 38 | 65 | - | 75 | 43.9 | 12 | 2 |
| SK50-TSF12-105 | |||||||
| SK50-TSF12-135 |
