Material:Heat shrinkable steel
Hardness:HRC56-60

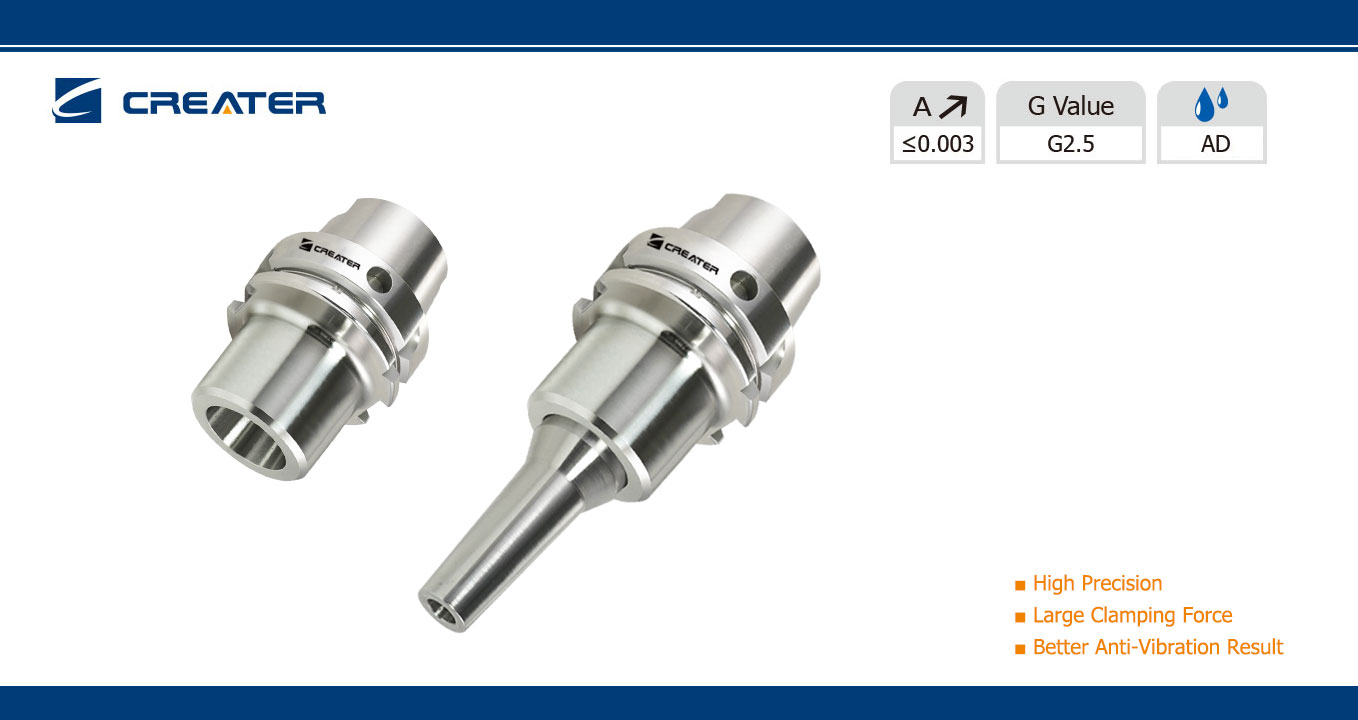

Runout: 0.003 mm
Blancing: G2.5/25000 RPM

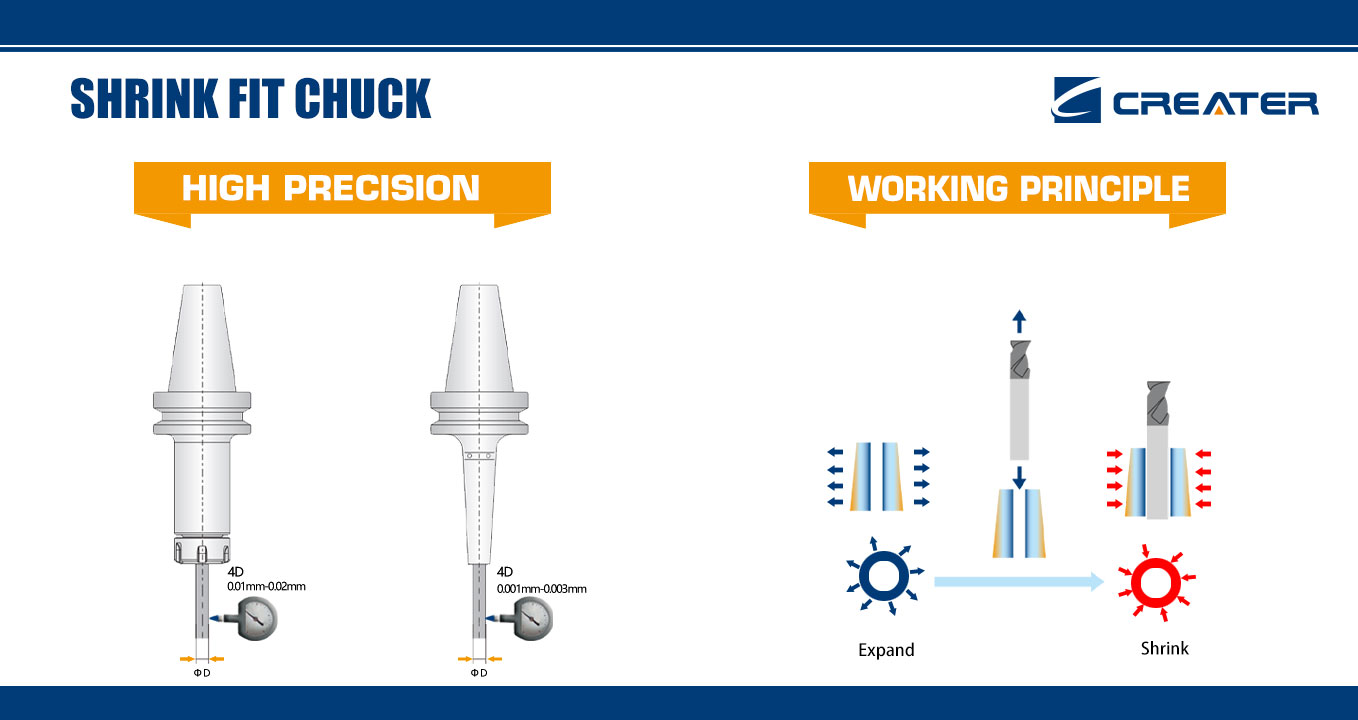

Usage: Working with induction shrink machine for mounting straight shank tools.
-
Contact us
- Office Address: 253000, Chongde 5th Avenue, Gaotie New District, Dezhou, China
- Tel: +86-534-8127588
- Mob: +86-18865728871
- Email: sales@bright-tools.com
- Skype: sdjinjie101
Products

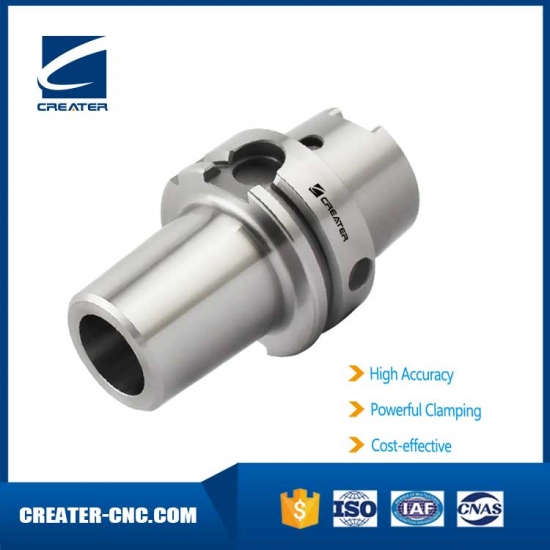

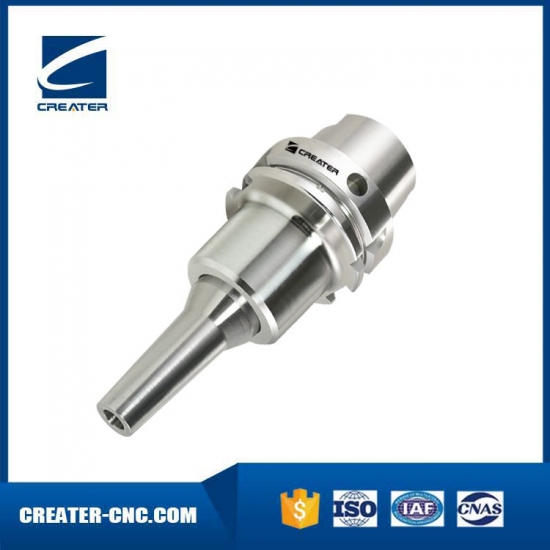

DIN 69893 HSK-A Shrink Chuck Taper
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao Shanghai |
| Payment: | T/T |
- Specification
- Simple figure
- Precautions
INTRODUCTION
| Size | D | D1 | D2 | L | L1 | L2 | Figure |
| HSK50A-TSF06-55 | 19 | 24.6 | 42 | 55 | 7 | 22 | 1 |
| HSK50A-TSF08-55 | 23 | 28.1 | 42 | 55 | 7 | 22 | 1 |
| HSK50A-TSF12-75 | 38 | - | - | 75 | 49 | - | 2 |
| HSK63A-TSF08-55 | 23 | 29.5 | 53 | 55 | 7 | 22 | 1 |
| HSK63A-TSF12-75 | 38 | - | - | 75 | 49 | - | 2 |
| HSK63A-TSF12-135 | 38 | - | - | 135 | 109 | - | 2 |
| HSK100A-TSF12-105 | 38 | 65 | - | 105 | 43 | 33 | 2 |
