| Brand: | creater |
|---|
- Specification

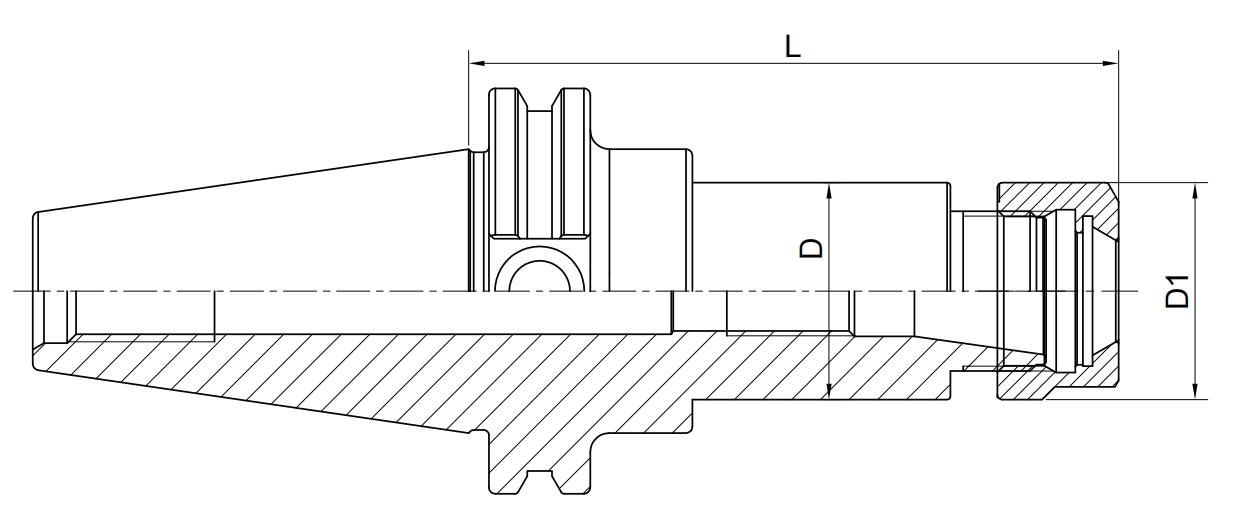

- Simple figure
- Precautions

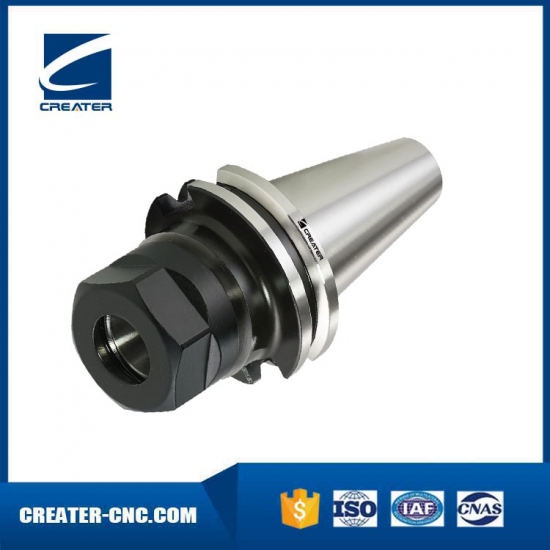

CAT-ER tool holder is a commonly used tool holder in machine tool processing. It is composed of a tool holder body and an ER collet. It is mainly used to clamp and fix straight-shank cutting tools such as drills and milling cutters machining.
1.Various specifications: ER11, ER16, ER20, ER25, ER32, ER40
2. Easy to operate
3, Wide applicability
Size
D
D1
L
Capacity
CAT40-ER11A-2.5"
19
19
2.5"
1-7
CAT40-ER16A-2.5
44.45
28
2.5"
1-10
CAT40-ER20A-2.5
34
34
2.5"
1-13
CAT40-ER11A-4"
19
19
4"
1-7
CAT40-ER16A-4"
28
28
4"
1-10
CAT40-ER20A-4"
34
34
4"
1-13
CAT40-ER11A-6"
19
19
6''
1-7
CAT40-ER16A-6"
28
28
6''
1-10
CAT40-ER20A-6"
34
34
6''
1-13
CAT40-ER16A-8"
28
28
8''
1-10
CAT40-ER20A-8"
34
34
8''
1-13
CAT50-ER16A-2"
28
28
2"
1-10
CAT50-ER20A-2"
34
34
2"
1-13
CAT50-ER16A-4"
28
28
4"
1-10
CAT50-ER20A-4"
34
34
4"
1-13
CAT50-ER16A-6"
28
28
6''
1-10
CAT50-ER20A-6"
34
34
6''
1-13
CAT50-ER16A-8"
28
28
8''
1-10
CAT50-ER20A-8"
34
34
8''
1-13
