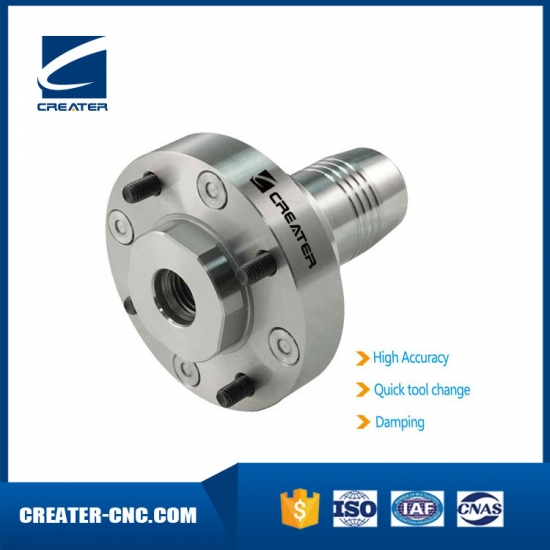

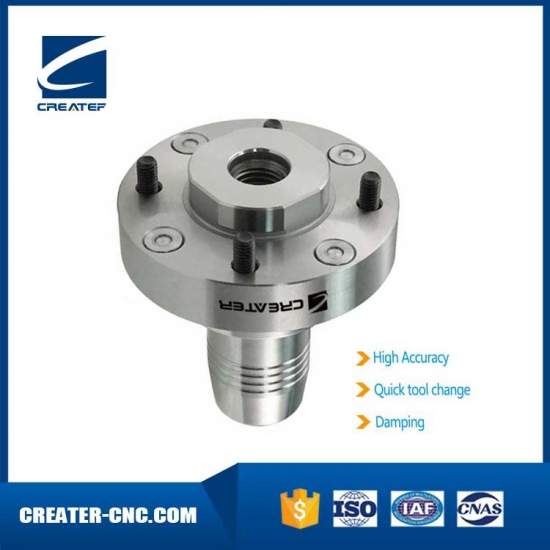

Hydraulic Chuck, Module
/uploadfile/202401/18/f0fe929b40a18828ac6ec21897b61ed4_square.jpg /uploadfile/202401/12/a22ddf6280a42c262fed7c82c8298ca5_square.jpg
Hydraulic Chuck, Module
Brand: creater
contact now
  • Specification
  • Simple figure
  • Precautions











Size D d1 d2 d3 l5 L G Hex wrench dm D1
MOD60-HY06-80 60 06 26 40 30 80 TS5 36 53
MOD60-HY08-80 60 08 28 40 30 80 TS5 36 53
MOD60-HY10-80 60 10 30 40 35 80 TS5 36 53
MOD60-HY12-80 60 12 32 40 40 80 TS5 36 53
MOD70-HY06-80 70 06 26 40 30 80 TS5 36 53
MOD70-HY08-80 70 08 28 40 30 80 TS5 36 53
MOD70-HY10-80 70 10 30 40 35 80 TS5 36 53
MOD70-HY12-80 70 12 32 40 40 80 TS5 36 53
MOD80-HY06-80 80 06 26 50 24 80 TS5 40 63
MOD80-HY08-80 80 08 28 50 25 80 TS5 40 63
MOD80-HY10-80 80 10 30 50 35 80 TS5 40 63
MOD80-HY12-80 80 12 32 50 45 80 TS5 40 63
MOD80-HY16-80 80 16 38 50 46 80 TS5 40 63
MOD80-HY20-80 80 20 42 50 48 80 TS5 40 63
MOD100-HY12-80 100 12 35 50 45 80 TS5 56 82
MOD100-HY16-80 100 16 38 50 46 80 TS5 56 82
MOD100-HY20-80 100 20 42 50 48 80 TS5 56 82
MOD100-HY25-90 100 25 57 63 59 90 TS6 56 82

High precision 0.003mm
Better anti-vibration result
High precision machining
