VDI Tool Holders Form B7 Tool,Suppliers,Manufacturers,Wholesalers

Radial VDI Tool Holders Static B7 Type (Right-Hand) are available in metric sizes, inch sizes can be made by request.
Form B7 VDI Tool Holder is for Turrets with clamping mechanism at 12 O'Clock.
When VDI Tool Holder in Turret : Coolant Nozzle will be located at the outer Bottom.
Our Radial B7 Type Tool Holder is cut from alloyed steel, hardened up to HRC 55-60, and then precisely grind to the highest accuracy standards.

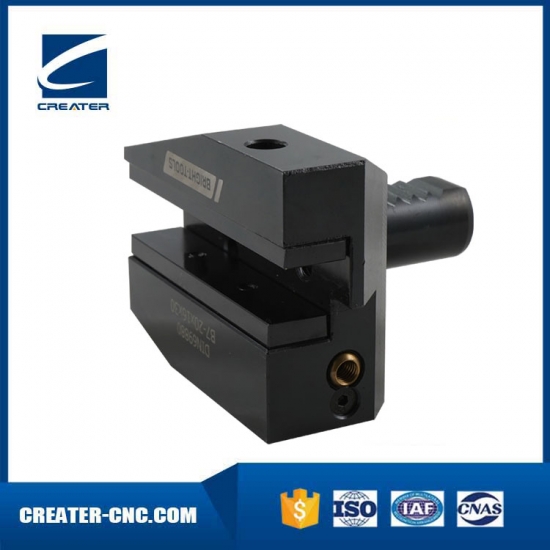

VDI Form B7 Right Hand Long Inverted Turning Tool Holder

Metric

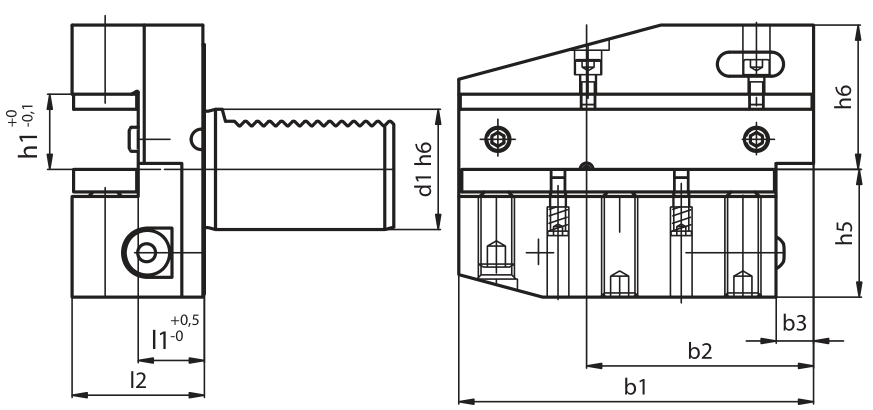

Size	d1	b1	b2	b3	h1	h5	h6	l1	l2
B7-16x12x24	16	58	39	5	12	20	22	13	24
B7-16x12x34	16	58	39	5	12	20	22	23	34
B7-20x16x30	20	75	50	7	16/12	25	30	16	30
B7-20x16x40	20	75	50	7	16/12	25	30	26	40
B7-25x16x30	25	75	50	7	16/12	25	30	16	30
B7-25x16x40	25	75	50	7	16/12	25	30	26	40
B7-30x20x40	30	100	65	10	20/16	35	38	22	40
B7-30x20x60	30	100	65	10	20/16	35	38	42	60
B7-40x25x44	40	118	75.5	12.5	25/20	42.5	48	22	44
B7-50x32x55	50	130	80	16	32/25	50	60	30	55
B7-60x32x60	60	145	82.5	16	32/25	62.5	62.5	30	60
B7-80x40x75	80	190	110	20	40/32	80	80	40	75



Inch
Size	d1	b1	b2	b3	h1	h5	h6	l1	l2
B7-20x5/8"x30	20	75	50	7	5/8"	25	30	16	30
B7-30x3/4"x40	30	100	65	10	3/4"	35	38	22	40
B7-40x1"x44	40	118	75.5	12.5	1"	42.5	48	22	44
B7-50x1-1/4" x55	50	130	80	16	1-1/4"	50	60	30	55
B7-60x1-1/4" x60	60	145	82.5	16	1-1/4"	62.5	62.5	30	60
