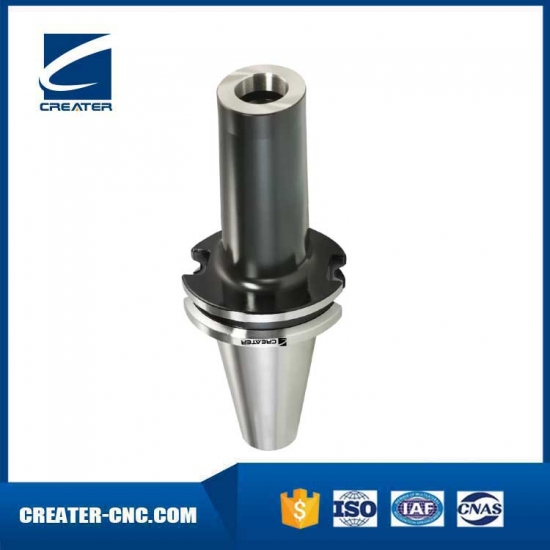

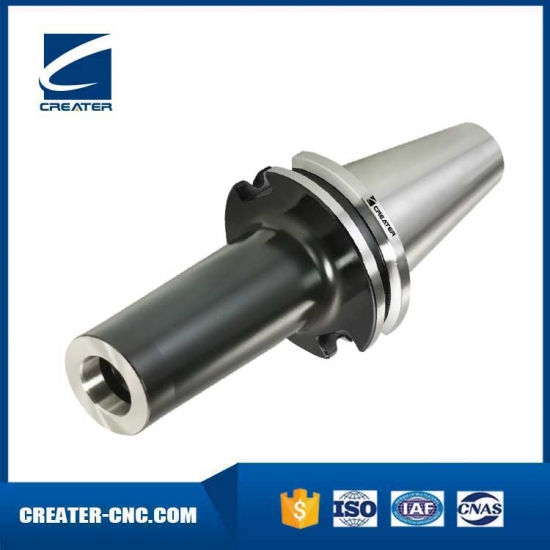

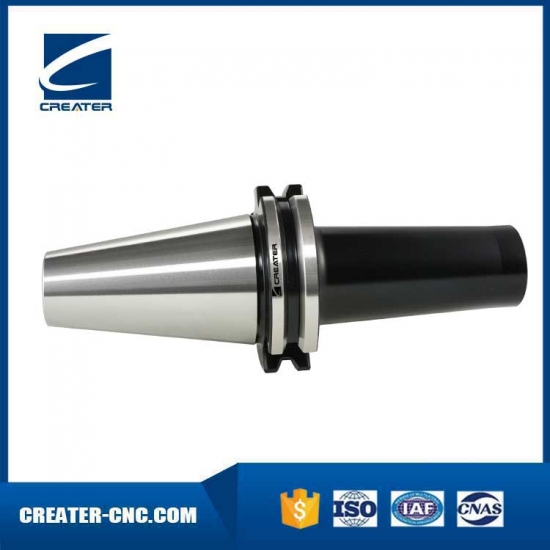

ANSI B5.50 Screw-in Milling Cutter Holder
contact now
| Brand: | creater |
|---|
- Specification
- Simple figure
- Precautions
SOM tool holder is connected the tools directly, this improve processing accuracy, rigidity and easy to make tools exchange
1. High precision
2. High rigidity, improving quality and reducing consumption.
3. Improve efficiency.
4. Convenience

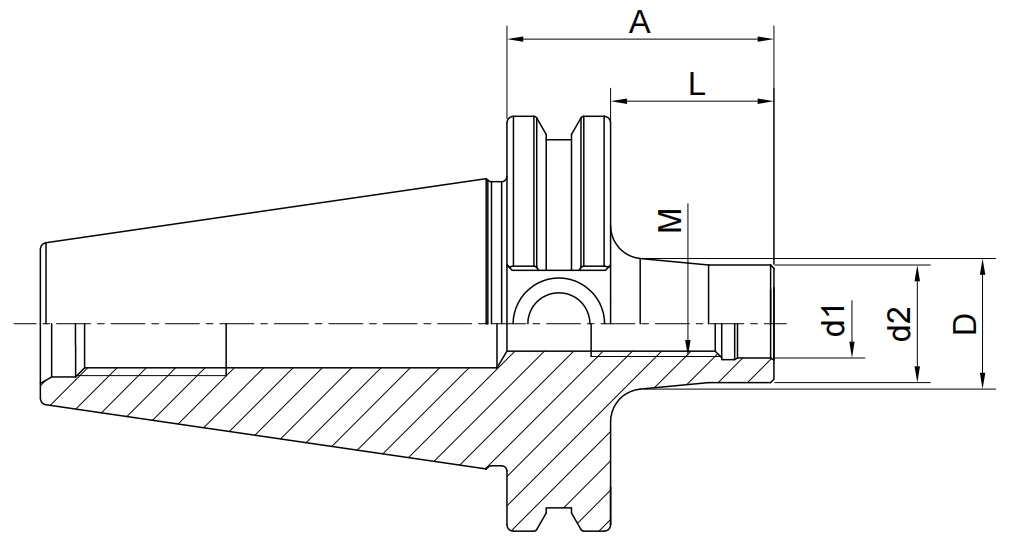

| Size | M | d1 | d2 | A | L | D |
| CAT40-SOM08-44 L=25 | 8 | 8.5 | 14.5 | 44 | 25 | 15 |
| CAT40-SOM08-69 L=50 | 8 | 8.5 | 14.5 | 69 | 50 | 23 |
| CAT40-SOM08-94 L=75 | 8 | 8.5 | 14.5 | 94 | 75 | 23 |
| CAT40-SOM08-119 L=100 | 8 | 8.5 | 14.5 | 119 | 100 | 25 |
| CAT40-SOM10-24 L=5 | 10 | 10.5 | 18 | 24 | 5 | 18 |
| CAT40-SOM10-44 L=25 | 10 | 10.5 | 18 | 44 | 25 | 20 |
| CAT40-SOM10-69 L=50 | 10 | 10.5 | 18 | 69 | 50 | 23 |
| CAT40-SOM10-94 L=75 | 10 | 10.5 | 18 | 94 | 75 | 28 |
| CAT40-SOM10-119 L=100 | 10 | 10.5 | 18 | 119 | 100 | 32 |
| CAT40-SOM10-169 L=150 | 10 | 10.5 | 18 | 169 | 150 | 36.5 |
| CAT40-SOM12-24 L=5 | 12 | 12.5 | 21 | 24 | 5 | 21 |
| CAT40-SOM12-44 L=25 | 12 | 12.5 | 21 | 44 | 25 | 24 |
| CAT40-SOM12-69 L=50 | 12 | 12.5 | 21 | 69 | 50 | 24 |
| CAT40-SOM12-94 L=75 | 12 | 12.5 | 21 | 94 | 75 | 31 |
| CAT40-SOM12-119 L=100 | 12 | 12.5 | 21 | 119 | 100 | 33 |
| CAT40-SOM12-144 L=125 | 12 | 12.5 | 21 | 144 | 125 | 36 |
| CAT40-SOM12-169 L=150 | 12 | 12.5 | 21 | 169 | 150 | 40 |
| CAT40-SOM16-24 L=5 | 16 | 17 | 29 | 24 | 5 | 29 |
| CAT40-SOM16-44 L=25 | 16 | 17 | 29 | 44 | 25 | 29 |
| CAT40-SOM16-69 L=50 | 16 | 17 | 29 | 69 | 50 | 34 |
| CAT40-SOM16-94 L=75 | 16 | 17 | 29 | 94 | 75 | 34 |
| CAT40-SOM16-119 L=100 | 16 | 17 | 29 | 119 | 100 | 36 |
| CAT40-SOM16-144 L=125 | 16 | 17 | 29 | 144 | 125 | 40 |
| CAT40-SOM16-169 L=150 | 16 | 17 | 29 | 169 | 150 | 42.5 |
| CAT50-SOM08-69 L=50 | 8 | 8.5 | 14.5 | 69 | 50 | 23 |
| CAT50-SOM08-119 L=100 | 8 | 8.5 | 14.5 | 119 | 100 | 25 |
| CAT50-SOM08-169 L=150 | 8 | 8.5 | 14.5 | 169 | 150 | 30 |
| CAT50-SOM10-69 L=50 | 10 | 10.5 | 18 | 69 | 50 | 23 |
| CAT50-SOM10-119 L=100 | 10 | 10.5 | 18 | 119 | 100 | 32 |
| CAT50-SOM10-169 L=150 | 10 | 10.5 | 18 | 169 | 150 | 36.5 |
| CAT50-SOM12-69 L=50 | 12 | 12.5 | 21 | 69 | 50 | 24 |
| CAT50-SOM12-119 L=100 | 12 | 12.5 | 21 | 119 | 100 | 33 |
| CAT50-SOM12-169 L=150 | 12 | 12.5 | 21 | 169 | 150 | 40 |
| CAT50-SOM16-69 L=50 | 16 | 17 | 29 | 69 | 50 | 34 |
| CAT50-SOM16-119 L=100 | 16 | 17 | 29 | 119 | 100 | 36 |
| CAT50-SOM16-169 L=150 | 16 | 17 | 29 | 169 | 150 | 42.5 |
