Morse Taper Adapter DIN6383
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening |
| Lead Time: | 20 Days |
| Payment: | TT |
- Specification
- Simple figure
- Precautions

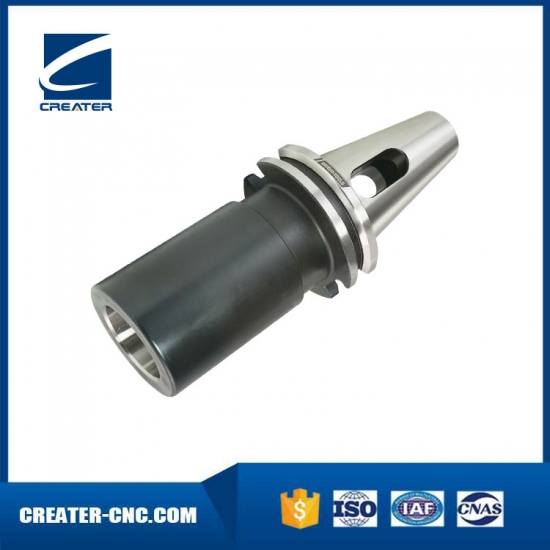

CAT MTA Morse Taper Adapter with Tang DIN6383
Taper: CAT
Runout: <0.005mm
Taper Torlerabce: <AT3
Balancing: G6.3/15000
Surface Treatment: Blackening
Application: CAT MORSE TAPER ADAPTER is for holding tools with morse tapers and tang according to DIN 228-1 form A.

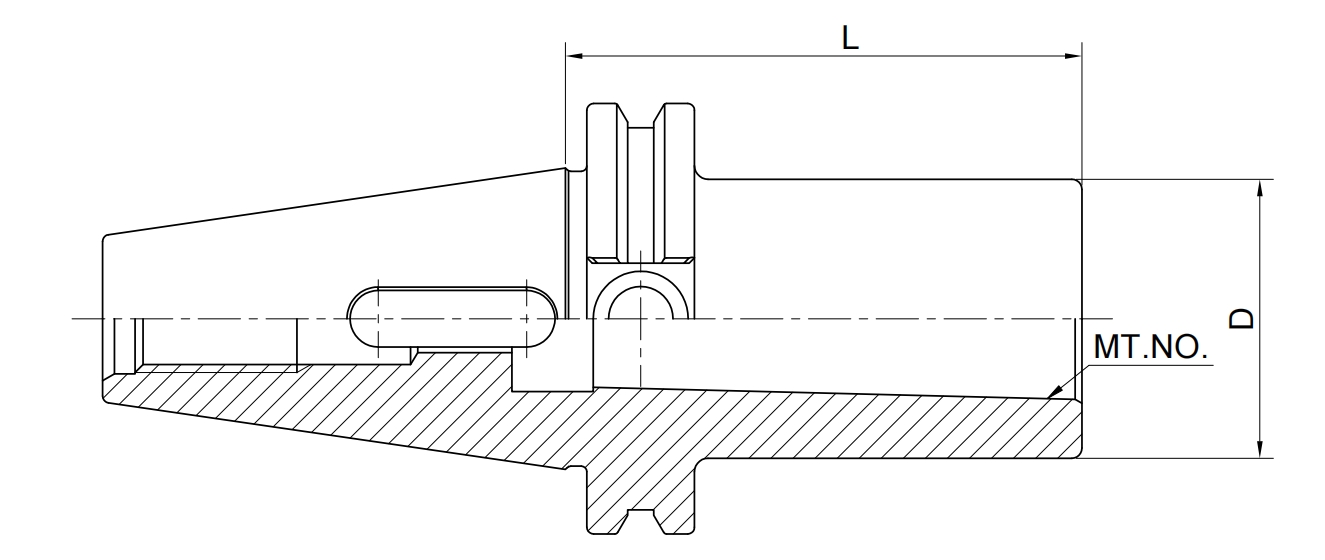

| Size | MT. NO. | D | L |
| CAT40-MTA1-1.75" | 1 | 25.40 | 1.75" |
| CAT40-MTA2-2" | 2 | 31.75 | 2'' |
| CAT40-MTA3-3" | 3 | 41.45 | 3'' |
| CAT40-MTA4-4" | 4 | 50.80 | 4'' |
| CAT50-MTA2-2" | 2 | 31.75 | 2'' |
| CAT50-MTA3-2" | 3 | 41.45 | 2" |
| CAT50-MTA4-3" | 4 | 50.80 | 3'' |
| CAT50-MTA5-4" | 5 | 69.85 | 4'' |
