Hydraulic collet
/uploadfile/202410/14/08a417d78a1b7c8902c5e71d41f18397_square.jpg

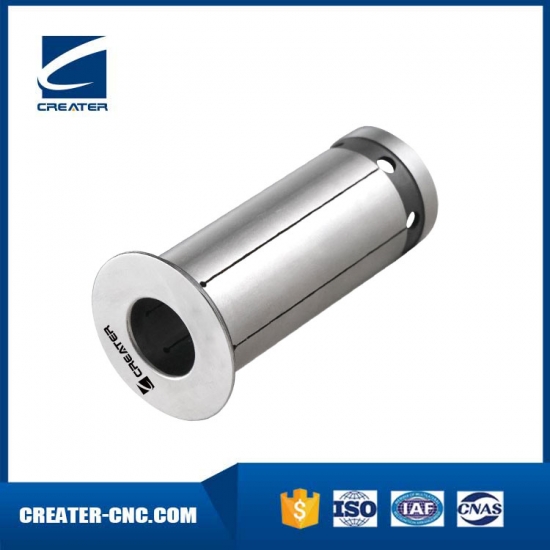

Hydraulic collet
Brand: creater
contact now
  • Specification
  • Simple figure
  • Precautions

Sealed Hydraulic collet,

Run-out accuracy ≤ 0.003 mm

For internal coolant supply Coolant-proof up to max. 80 bar

Closed collar

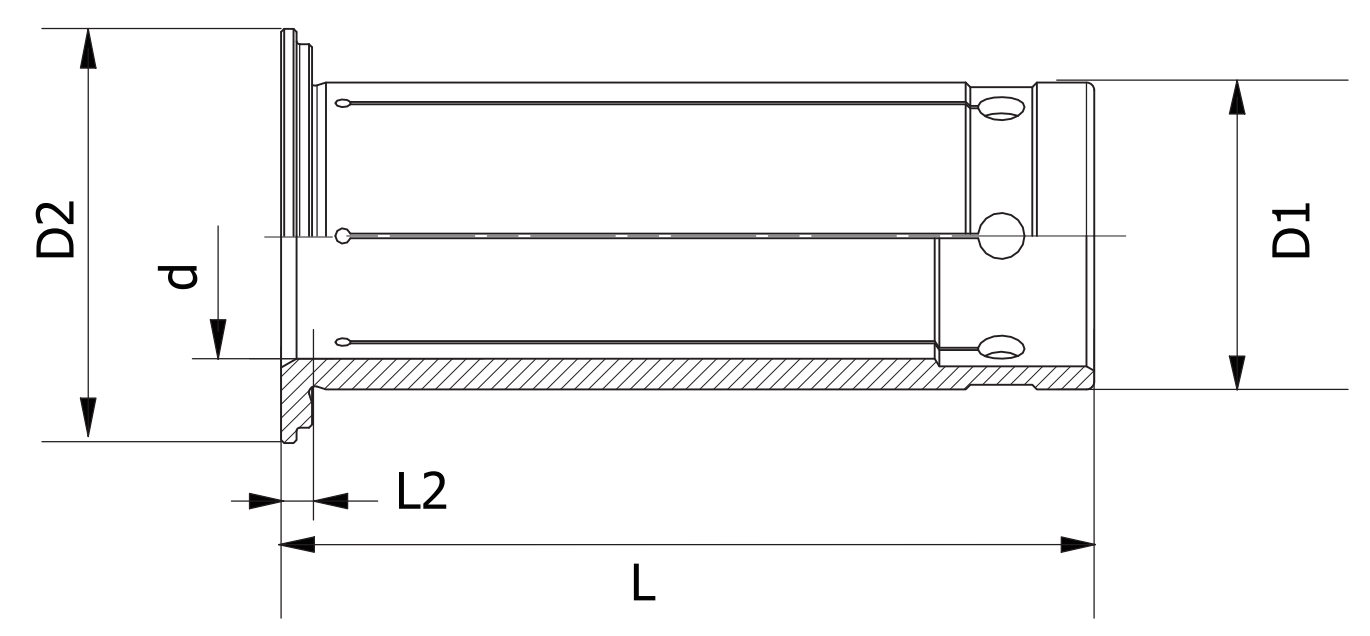

Size d D1 D2 L L2
HY12-03 3 12 19 47 2
HY12-04 4 12 19 47 2
HY12-05 5 12 19 47 2
HY12-06 6 12 19 47 2
HY12-07 7 12 19 47 2
HY12-08 8 12 19 47 2
HY20-03 3 20 27 52.5 2
HY20-04 4 20 27 52.5 2
HY20-05 5 20 27 52.5 2
HY20-06 6 20 27 52.5 2
HY20-07 7 20 27 52.5 2
HY20-08 8 20 27 52.5 2
HY20-09 9 20 27 52.5 2
HY20-10 10 20 27 52.5 2
HY20-11 11 20 27 52.5 2
HY20-12 12 20 27 52.5 2
HY20-13 13 20 27 52.5 2
HY20-14 14 20 27 52.5 2
HY20-15 15 20 27 52.5 2
HY20-16 16 20 27 52.5 2
HY32-06 6 32 39 63.5 3
HY32-08 8 32 39 63.5 3
HY32-10 10 32 39 63.5 3
HY32-12 12 32 39 63.5 3
HY32-14 14 32 39 63.5 3
HY32-16 16 32 39 63.5 3
HY32-18 18 32 39 63.5 3
HY32-20 20 32 39 63.5 3
HY32-25 25 32 39 63.5 3









High precision 0.003mm
Better anti-vibration result
High precision machining
