MAS 403 BT End Mill Holder with Coolant Channels
contact now
| Brand: | creater |
|---|
- Specification
- Simple figure
- Precautions

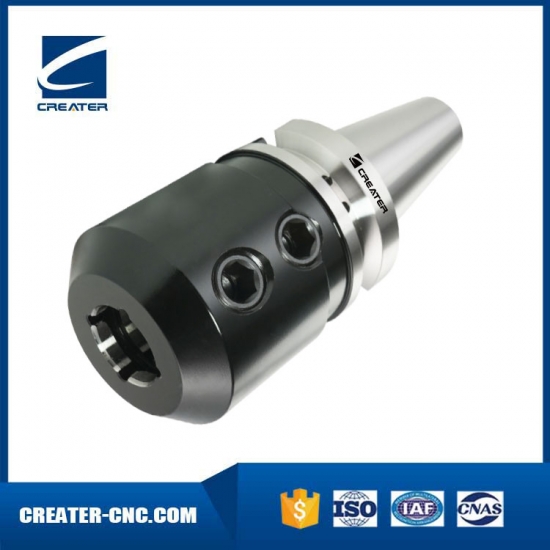

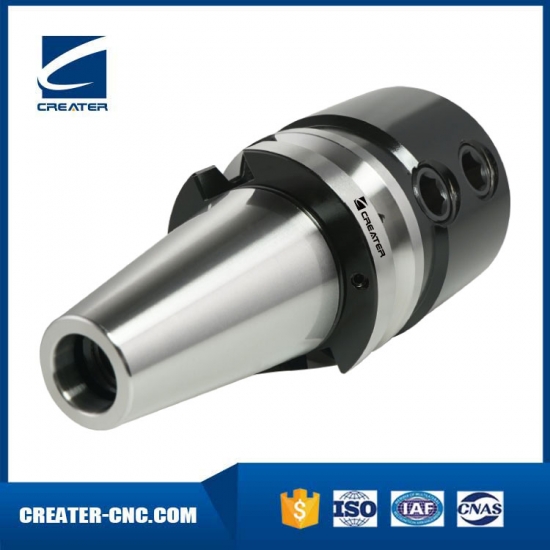

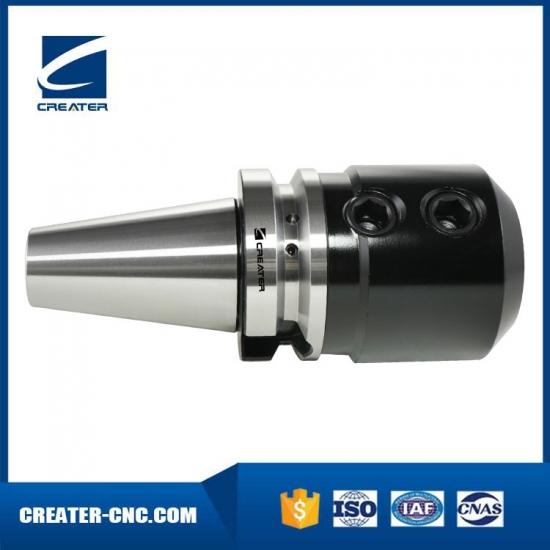

End Mill Holder with Coolant Channels
MAS 403 BT End mill holders hold cutting tools with more rigidity than collets.
Available in Weldon type for using tools with Weldon flats. Easy to use for clamping tools and disassemble tools. This clamping system assures the end mill cannot spin in the holder during a heavy cut as is possible in a collet

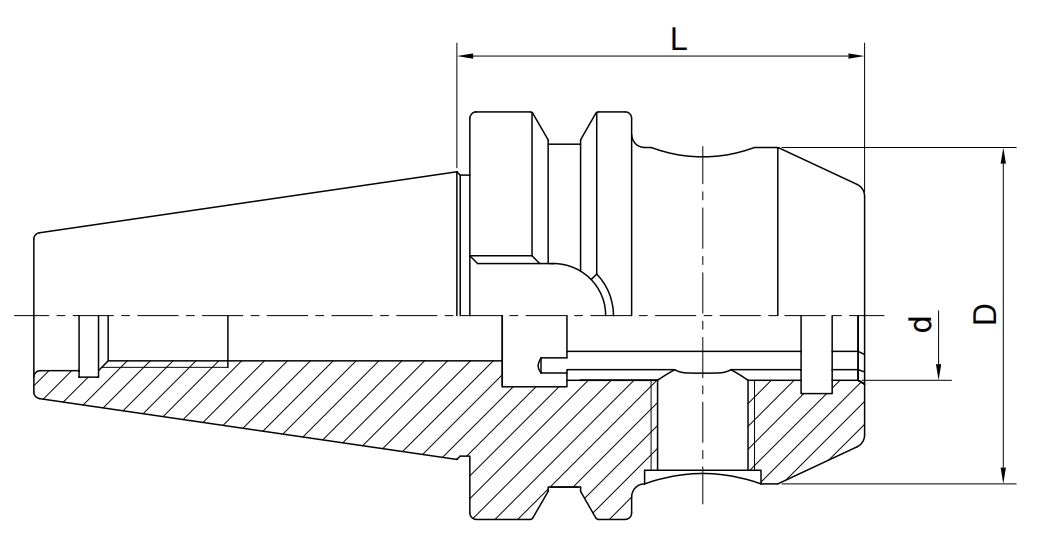

| Size | d | D | L | M | Screw Quantity |
| BT40-SLA06-50K | 6 | 25 | 50 | M6 | 1 |
| BT40-SLA08-50K | 8 | 28 | 50 | M8 | 1 |
| BT40-SLA10-63K | 10 | 35 | 63 | M10 | 1 |
| BT40-SLA12-63K | 12 | 42 | 63 | M12 | 1 |
| BT40-SLA14-63K | 14 | 44 | 63 | M12 | 1 |
| BT40-SLA16-63K | 16 | 48 | 63 | M14 | 1 |
| BT40-SLA18-63K | 18 | 50 | 63 | M14 | 1 |
| BT40-SLA20-63K | 20 | 52 | 63 | M16 | 1 |
| BT40-SLA25-90K | 25 | 65 | 90 | M18*2 | 2 |
| BT40-SLA32-100K | 32 | 72 | 100 | M20*2 | 2 |
| BT40-SLA40-120K | 40 | 80 | 120 | M20*2 | 2 |
| BT40-SLA06-100K | 6 | 25 | 100 | M6 | 1 |
| BT40-SLA08-100K | 8 | 28 | 100 | M8 | 1 |
| BT40-SLA10-100K | 10 | 35 | 100 | M10 | 1 |
| BT40-SLA12-100K | 12 | 42 | 100 | M12 | 1 |
| BT40-SLA14-100K | 14 | 44 | 100 | M12 | 1 |
| BT40-SLA16-100K | 16 | 48 | 100 | M14 | 1 |
| BT40-SLA18-100K | 18 | 50 | 100 | M14 | 1 |
| BT40-SLA20-100K | 20 | 52 | 100 | M16 | 1 |
| BT50-SLA06-63K | 6 | 25 | 63 | M6 | 1 |
| BT50-SLA08-63K | 8 | 28 | 63 | M8 | 1 |
| BT50-SLA10-63K | 10 | 35 | 63 | M10 | 1 |
| BT50-SLA12-80K | 12 | 42 | 80 | M12 | 1 |
| BT50-SLA14-80K | 14 | 44 | 80 | M12 | 1 |
| BT50-SLA16-80K | 16 | 48 | 80 | M14 | 1 |
| BT50-SLA18-80K | 18 | 50 | 80 | M14 | 1 |
| BT50-SLA20-80K | 20 | 52 | 80 | M16 | 1 |
| BT50-SLA25-100K | 25 | 65 | 100 | M18*2 | 2 |
| BT50-SLA32-105K | 32 | 72 | 105 | M20*2 | 2 |
| BT50-SLA40-110K | 40 | 80 | 110 | M20*2 | 2 |
| BT50-SLA06-100K | 6 | 25 | 100 | M6 | 1 |
| BT50-SLA08-100K | 8 | 28 | 100 | M8 | 1 |
| BT50-SLA10-100K | 10 | 35 | 100 | M10 | 1 |
| BT50-SLA12-100K | 12 | 42 | 100 | M12 | 1 |
| BT50-SLA14-100K | 14 | 44 | 100 | M12 | 1 |
| BT50-SLA16-100K | 16 | 48 | 100 | M14 | 1 |
| BT50-SLA18-100K | 18 | 50 | 100 | M14 | 1 |
| BT50-SLA20-100K | 20 | 52 | 100 | M16 | 1 |
