Products
NBT Collet Chuck
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Lead Time: | 20-30days |
| Payment: | TT |
- Specification
- Simple figure
- Precautions

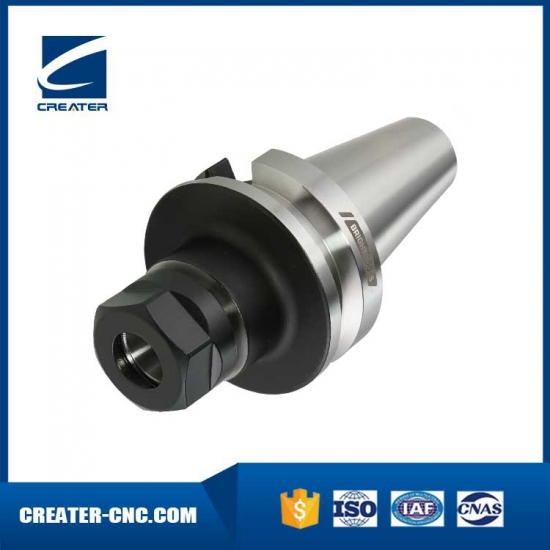

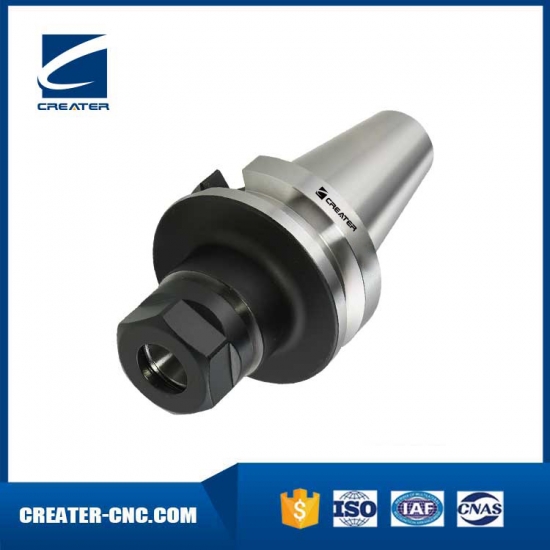

NBT Collet Chuck
Taper Standard: NBT
Balancing: 15000rpm, 25000rpm
Surface: Sand blasting blackening plating

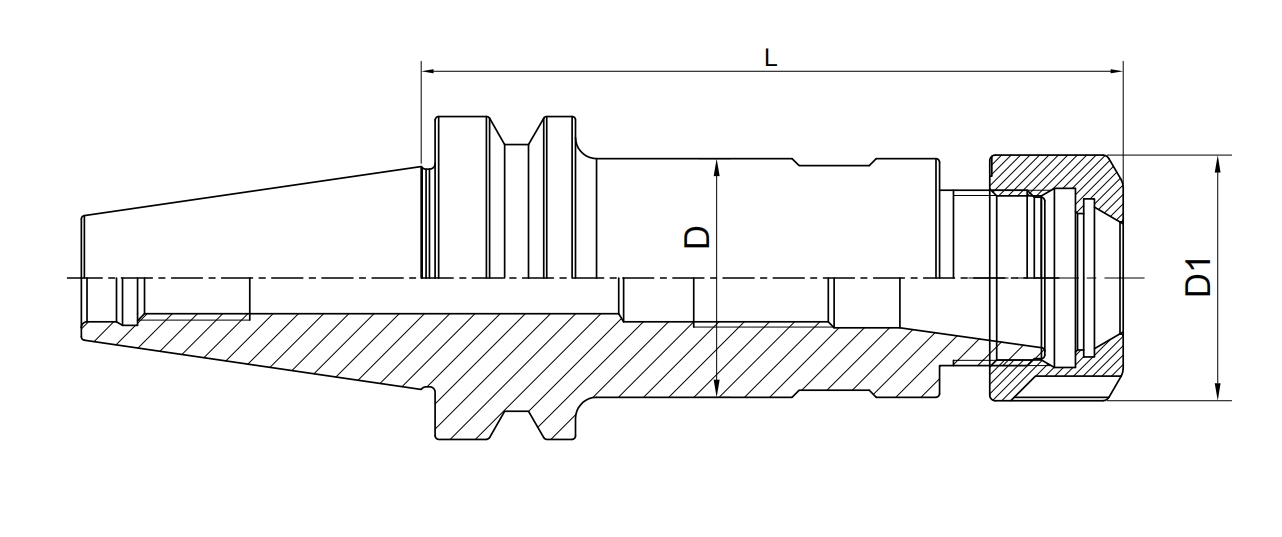

| Size | D | D1 | L | Capacity |
| NBT30-ER16A-60 | 28 | 28 | 60 | 1-10 |
| NBT30-ER20A-60 | 34 | 34 | 60 | 1-13 |
| NBT30-ER25-70 | 42 | 42 | 70 | 2-16 |
| NBT30-ER32-70 | 50 | 50 | 70 | 2-20 |
| NBT40-ER16A-70 | 28 | 28 | 70 | 1-10 |
| NBT40-ER20A-70 | 34 | 34 | 70 | 1-13 |
| NBT40-ER25-70 | 42 | 42 | 70 | 2-16 |
| NBT40-ER32-70 | 50 | 50 | 70 | 2-20 |
