| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | qingdao |
| Lead Time: | 20-30days |
| Payment: | TT |
- Specification
- Simple figure
- Precautions

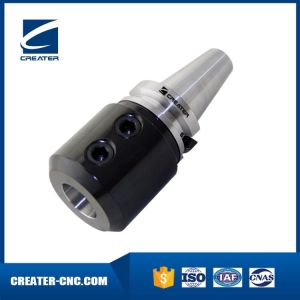

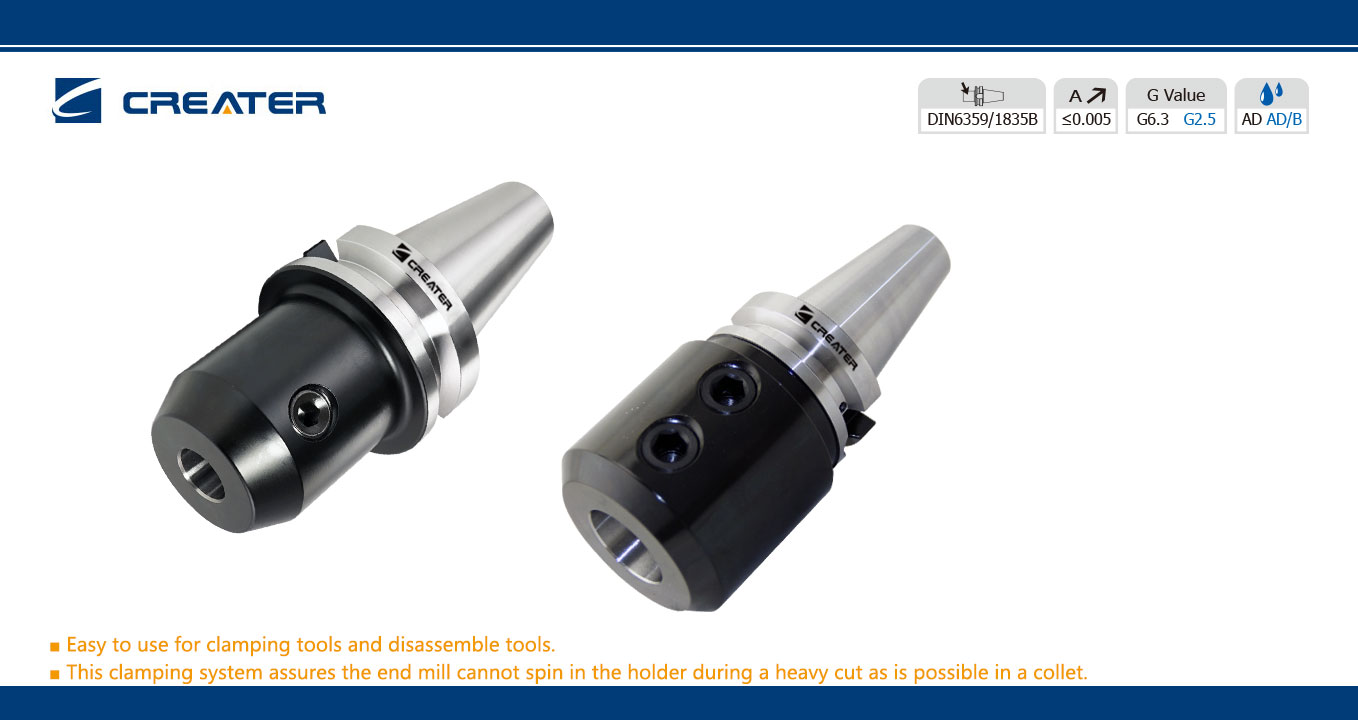

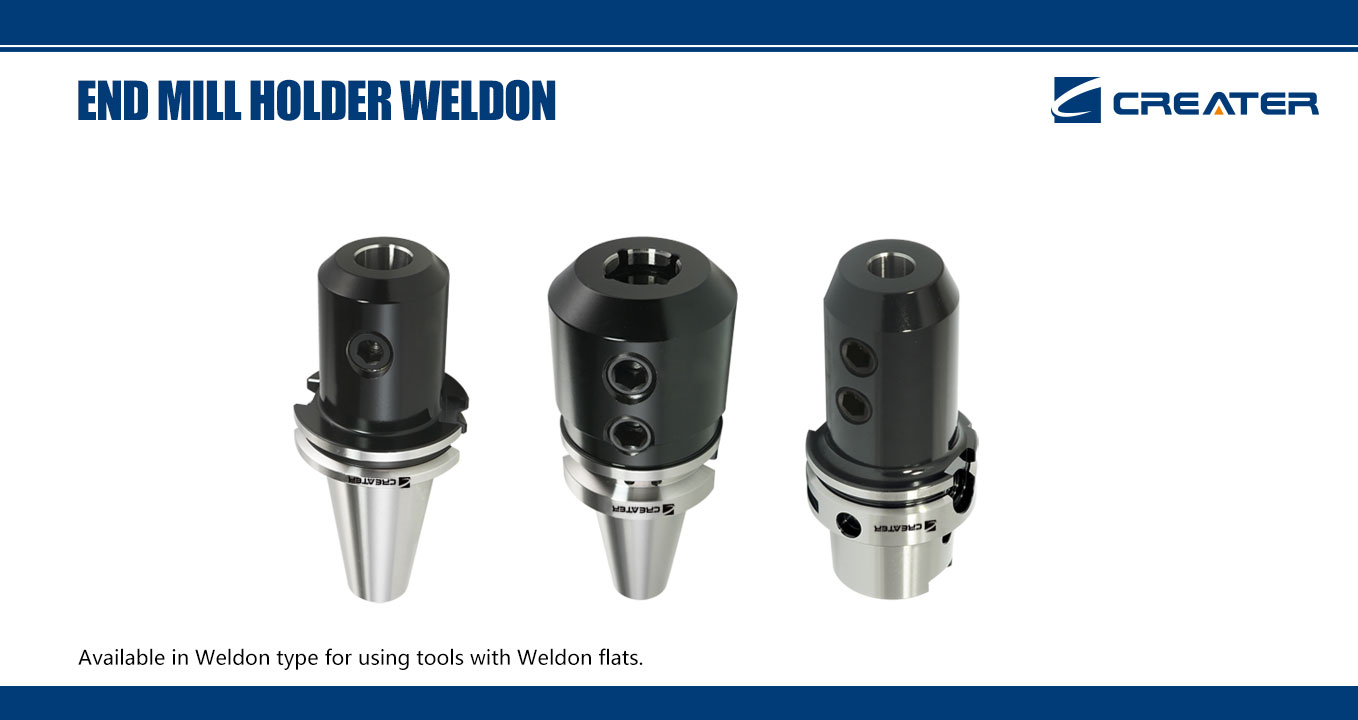

End Mill Holder Weldon DIN6359/1835B
7:24 Taper:AT3
Accuracy: 0.005mm
Coolant: AD, ADB
Hole tolerance: H4-H5
standard: MAS403BT, DIN69871, DIN2080, CAT, HSK69893
|

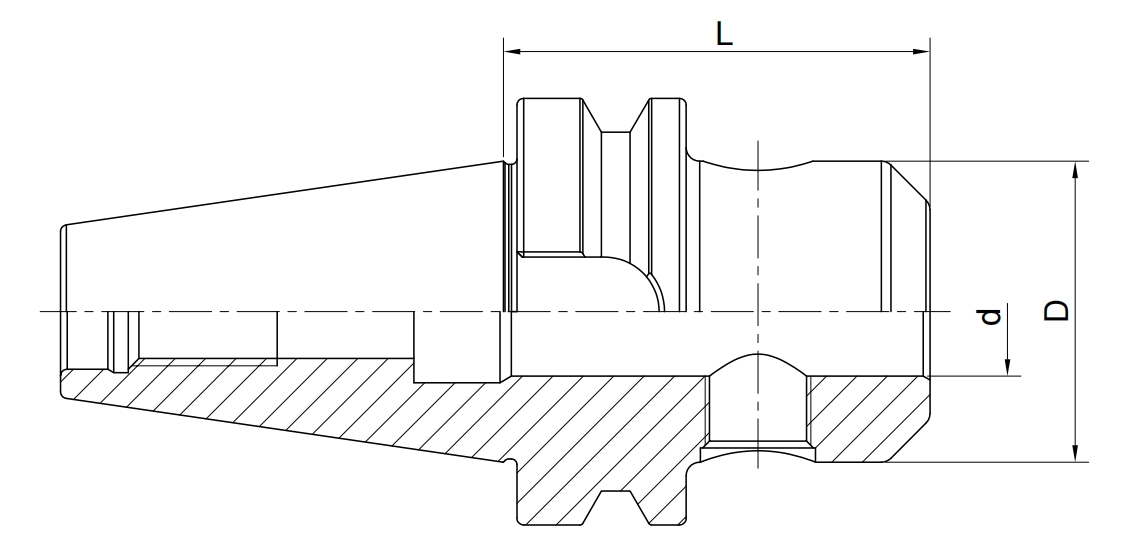

Size |
d |
D |
L |
M |
Screw Quantity |
|
BT30-SLA06-50 |
6 |
25 |
50 |
M6 |
1 |
|
BT30-SLA08-50 |
8 |
28 |
50 |
M8 |
1 |
|
BT30-SLA10-50 |
10 |
35 |
50 |
M10 |
1 |
|
BT30-SLA12-50 |
12 |
42 |
50 |
M12 |
1 |
|
BT30-SLA14-50 |
14 |
44 |
50 |
M12 |
1 |
|
BT30-SLA16-63 |
16 |
48 |
63 |
M14 |
1 |
|
BT30-SLA18-63 |
18 |
50 |
63 |
M14 |
1 |
|
BT30-SLA20-63 |
20 |
52 |
63 |
M16 |
1 |
|
BT30-SLA25-90 |
25 |
65 |
90 |
M18*2 |
2 |
|
|
|
|
|
|
|
|
BT40-SLA06-50 |
6 |
25 |
50 |
M6 |
1 |
|
BT40-SLA08-50 |
8 |
28 |
50 |
M8 |
1 |
|
BT40-SLA10-63 |
10 |
35 |
63 |
M10 |
1 |
|
BT40-SLA12-63 |
12 |
42 |
63 |
M12 |
1 |
|
BT40-SLA14-63 |
14 |
44 |
63 |
M12 |
1 |
|
BT40-SLA16-63 |
16 |
48 |
63 |
M14 |
1 |
|
BT40-SLA18-63 |
18 |
50 |
63 |
M14 |
1 |
|
BT40-SLA20-63 |
20 |
52 |
63 |
M16 |
1 |
|
BT40-SLA25-90 |
25 |
65 |
90 |
M18*2 |
2 |
|
BT40-SLA32-100 |
32 |
72 |
100 |
M20*2 |
2 |
|
BT40-SLA40-120 |
40 |
80 |
120 |
M20*2 |
2 |
|
|
|
|
|
|
|
|
BT40-SLA06-100 |
6 |
25 |
100 |
M6 |
1 |
|
BT40-SLA08-100 |
8 |
28 |
100 |
M8 |
1 |
|
BT40-SLA10-100 |
10 |
35 |
100 |
M10 |
1 |
|
BT40-SLA12-100 |
12 |
42 |
100 |
M12 |
1 |
|
BT40-SLA14-100 |
14 |
44 |
100 |
M12 |
1 |
|
BT40-SLA16-100 |
16 |
48 |
100 |
M14 |
1 |
|
BT40-SLA18-100 |
18 |
50 |
100 |
M14 |
1 |
|
BT40-SLA20-100 |
20 |
52 |
100 |
M16 |
1 |
|
|
|
|
|
|
|
|
BT40-SLA06-160 |
6 |
25 |
160 |
M6 |
1 |
|
BT40-SLA08-160 |
8 |
28 |
160 |
M8 |
1 |
|
BT40-SLA10-160 |
10 |
35 |
160 |
M10 |
1 |
|
BT40-SLA12-160 |
12 |
42 |
160 |
M12 |
1 |
|
BT40-SLA14-160 |
14 |
44 |
160 |
M12 |
1 |
|
BT40-SLA16-160 |
16 |
48 |
160 |
M14 |
1 |
|
BT40-SLA18-160 |
18 |
50 |
160 |
M14 |
1 |
|
BT40-SLA20-160 |
20 |
52 |
160 |
M16 |
1 |
|
BT40-SLA25-160 |
25 |
65 |
160 |
M18*2 |
2 |
|
BT40-SLA32-160 |
32 |
72 |
160 |
M20*2 |
2 |
|
BT40-SLA40-160 |
40 |
80 |
160 |
M20*2 |
2 |
|
|
|
|
|
|
|
|
BT50-SLA06-63 |
6 |
25 |
63 |
M6 |
1 |
|
BT50-SLA08-63 |
8 |
28 |
63 |
M8 |
1 |
|
BT50-SLA10-63 |
10 |
35 |
63 |
M10 |
1 |
|
BT50-SLA12-80 |
12 |
42 |
80 |
M12 |
1 |
|
BT50-SLA14-80 |
14 |
44 |
80 |
M12 |
1 |
|
BT50-SLA16-80 |
16 |
48 |
80 |
M14 |
1 |
|
BT50-SLA18-80 |
18 |
50 |
80 |
M14 |
1 |
|
BT50-SLA20-80 |
20 |
52 |
80 |
M16 |
1 |
|
BT50-SLA25-100 |
25 |
65 |
100 |
M18*2 |
2 |
|
BT50-SLA32-105 |
32 |
72 |
105 |
M20*2 |
2 |
|
BT50-SLA40-110 |
40 |
80 |
110 |
M20*2 |
2 |
|
BT50-SLA50-125 |
50 |
98 |
125 |
M24*2 |
2 |
|
|
|
|
|
|
|
|
BT50-SLA06-160 |
6 |
25 |
160 |
M6 |
1 |
|
BT50-SLA08-160 |
8 |
28 |
160 |
M8 |
1 |
|
BT50-SLA10-160 |
10 |
35 |
160 |
M10 |
1 |
|
BT50-SLA12-160 |
12 |
42 |
160 |
M12 |
1 |
|
BT50-SLA14-160 |
14 |
44 |
160 |
M12 |
1 |
|
BT50-SLA16-160 |
16 |
48 |
160 |
M14 |
1 |
|
BT50-SLA18-160 |
18 |
50 |
160 |
M14 |
1 |
|
BT50-SLA20-160 |
20 |
52 |
160 |
M16 |
1 |
|
BT50-SLA25-160 |
25 |
65 |
160 |
M18*2 |
2 |
|
BT50-SLA32-160 |
32 |
72 |
160 |
M20*2 |
2 |
|
BT50-SLA40-160 |
40 |
80 |
160 |
M20*2 |
2 |
