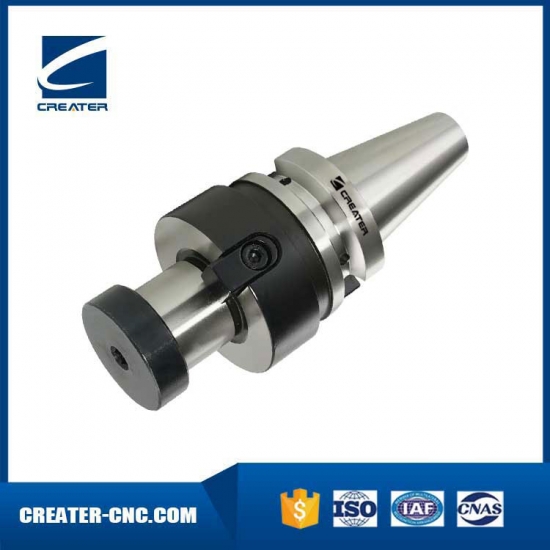

FMA Face Mill Holder
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
- Specification
- Simple figure
- Precautions

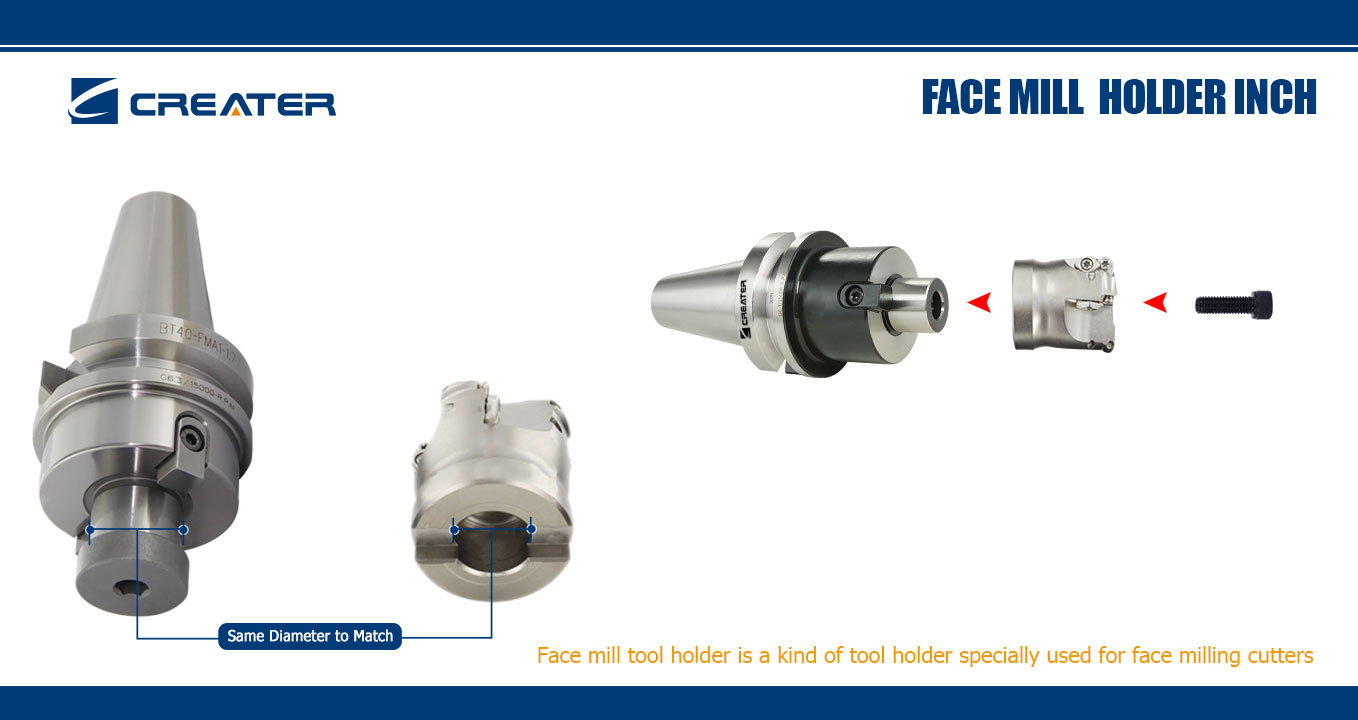

BT FMA Face Mill Holder
7:24 Taper:AT3
Accuracy: 0.005mm
Coolant: AD, ADB
Hole tolerance: H4-H5
Balancing : G6.3/15000rpm, G2.5/25000rpm
standard: MAS403BT, DIN69871, DIN2080, CAT, HSK69893

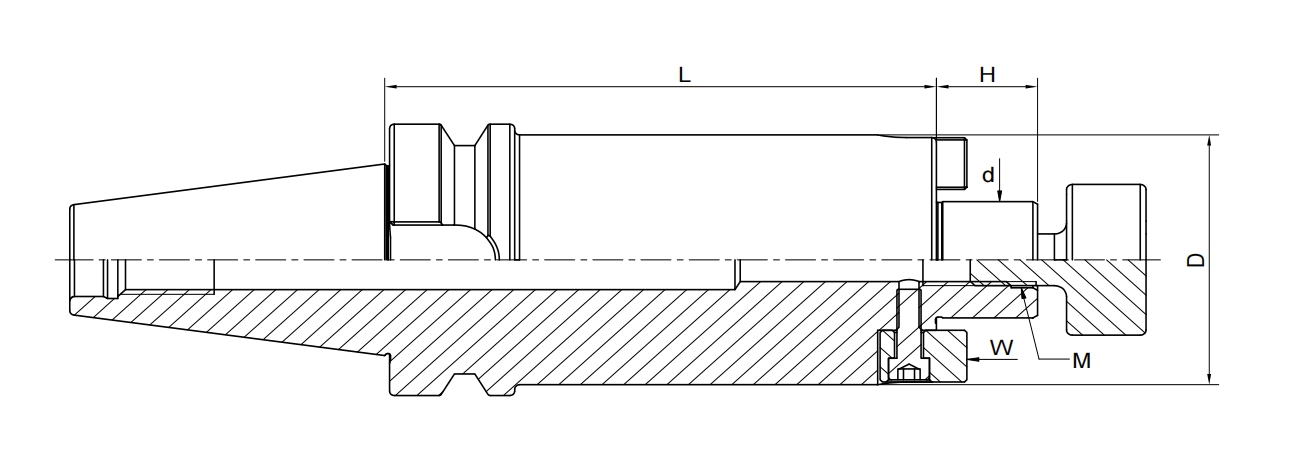

| Size | d | L | D | H | M |
| BT40-FMA3/4"-40 | 3/4" | 40 | 42.926 | 17.45 | 3/8-24 |
| BT40-FMA1"-40 | 1" | 40 | 55.626 | 17.45 | 1/2-20 |
| BT40-FMA1-1/4"-50 | 1-1/4" | 50 | 69.85 | 17.45 | 5/8-18 |
| BT40-FMA1-1/2"-50 | 1-1/2" | 50 | 78 | 23.83 | 3/4-16 |
| BT40-FMA3/4"-100 | 3/4" | 100 | 42.926 | 17.45 | 3/8-24 |
| BT40-FMA1"-100 | 1" | 100 | 55.626 | 17.45 | 1/2-20 |
| BT40-FMA1-1/4"-100 | 1-1/4" | 100 | 69.85 | 17.45 | 5/8-18 |
| BT40-FMA1-1/2"-100 | 1-1/2" | 100 | 78 | 23.83 | 3/4-16 |
| BT40-FMA3/4"-150 | 3/4" | 150 | 42.926 | 17.45 | 3/8-24 |
| BT40-FMA1"-150 | 1" | 150 | 55.626 | 17.45 | 1/2-20 |
| BT40-FMA1-1/4"-150 | 1-1/4" | 150 | 69.85 | 17.45 | 5/8-18 |
| BT40-FMA1-1/2"-150 | 1-1/2" | 150 | 78 | 23.83 | 3/4-16 |
| BT50-FMA3/4"-40 | 3/4" | 40 | 42.926 | 17.45 | 3/8-24 |
| BT50-FMA1"-40 | 1" | 40 | 55.626 | 17.45 | 1/2-20 |
| BT50-FMA1-1/4"-50 | 1-1/4" | 50 | 69.85 | 17.45 | 5/8-18 |
| BT50-FMA1-1/2"-50 | 1-1/2" | 50 | 78 | 23.83 | 3/4-16 |
| BT50-FMA3/4"-100 | 3/4" | 100 | 42.926 | 17.45 | 3/8-24 |
| BT50-FMA1"-100 | 1" | 100 | 55.626 | 17.45 | 1/2-20 |
| BT50-FMA1-1/4"-100 | 1-1/4" | 100 | 69.85 | 17.45 | 5/8-18 |
| BT50-FMA1-1/2"-100 | 1-1/2" | 100 | 78 | 23.83 | 3/4-16 |
| BT50-FMA3/4"-150 | 3/4" | 150 | 42.926 | 17.45 | 3/8-24 |
| BT50-FMA1"-150 | 1" | 150 | 55.626 | 17.45 | 1/2-20 |
| BT50-FMA1-1/4"-150 | 1-1/4" | 150 | 69.85 | 17.45 | 5/8-18 |
| BT50-FMA1-1/2"-150 | 1-1/2" | 150 | 78 | 23.83 | 3/4-16 |
