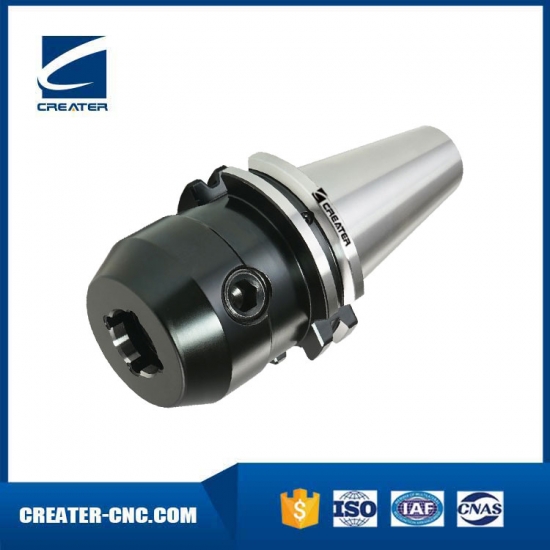

Weldon Holder with Coolant Channels
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening |
| Lead Time: | 30 Days |
| Payment: | TT |
- Specification
- Simple figure
- Precautions

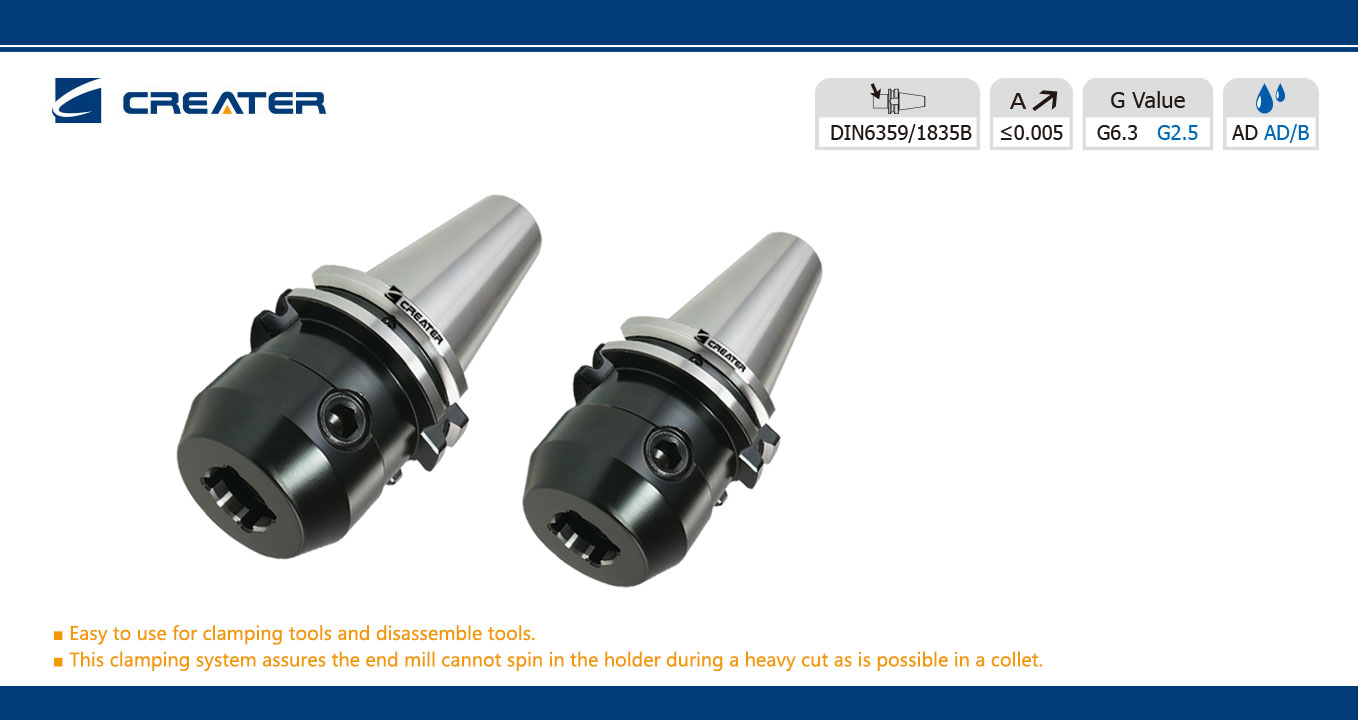

DIN69871 Taper End Mill Holder DIN6359/1835B (Weldon) with Coolant Channels
Taper: DIN69871
Runout: <0.005mm
Taper Torlerabce: <AT3
Balancing: G6.3/15000
Surface Treatment: Blackening
Application: DIN69871 WELDON HOLDER with COOLANT CHANNELS is for clamping cutting tools with straight shank and inclined flat DIN1835B. It is with coolant channels for optional coolant at the cutting edge.

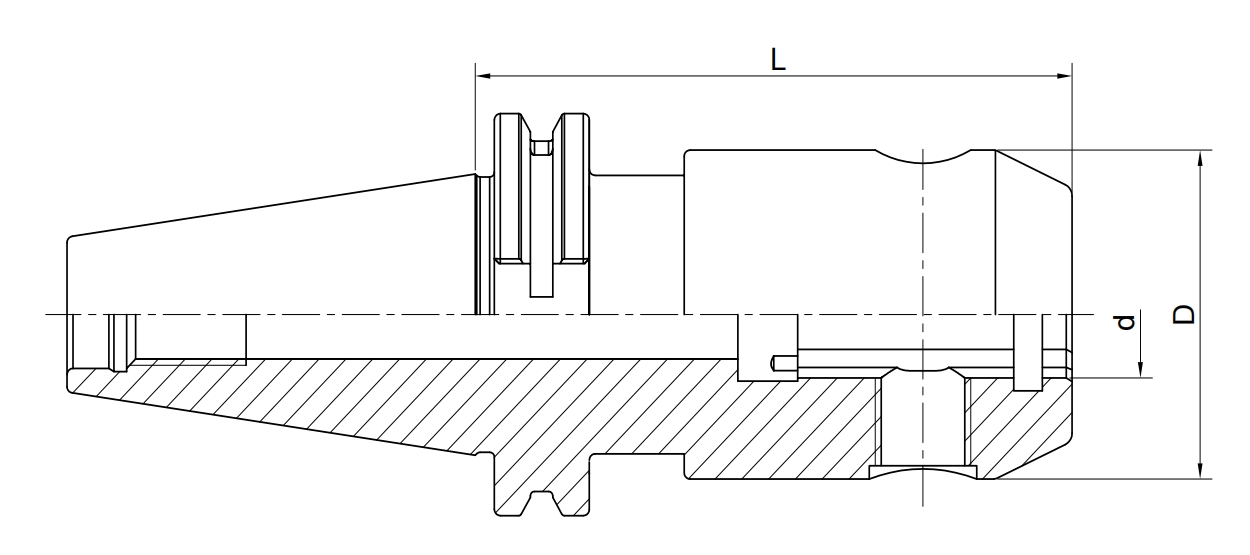

| Size | d | D | L | M | Screw Quantity |
| SK40-SLA06-50K | 6 | 25 | 50 | M6 | 1 |
| SK40-SLA08-50K | 8 | 28 | 50 | M8 | 1 |
| SK40-SLA10-50K | 10 | 35 | 50 | M10 | 1 |
| SK40-SLA12-50K | 12 | 42 | 50 | M12 | 1 |
| SK40-SLA14-50K | 14 | 44 | 50 | M12 | 1 |
| SK40-SLA16-63K | 16 | 48 | 63 | M14 | 1 |
| SK40-SLA18-63K | 18 | 50 | 63 | M14 | 1 |
| SK40-SLA20-63K | 20 | 52 | 63 | M16 | 1 |
| SK40-SLA25-100K | 25 | 65 | 100 | M18*2 | 2 |
| SK40-SLA32-100K | 32 | 72 | 100 | M20*2 | 2 |
| SK40-SLA40-120K | 40 | 80 | 120 | M20*2 | 2 |
| SK40-SLA06-100K | 6 | 25 | 100 | M6 | 1 |
| SK40-SLA08-100K | 8 | 28 | 100 | M8 | 1 |
| SK40-SLA10-100K | 10 | 35 | 100 | M10 | 1 |
| SK40-SLA12-100K | 12 | 42 | 100 | M12 | 1 |
| SK40-SLA14-100K | 14 | 44 | 100 | M12 | 1 |
| SK40-SLA16-100K | 16 | 48 | 100 | M14 | 1 |
| SK40-SLA18-100K | 18 | 50 | 100 | M14 | 1 |
| SK40-SLA20-100K | 20 | 52 | 100 | M16 | 1 |
| SK50-SLA06-63K | 6 | 25 | 63 | M6 | 1 |
| SK50-SLA08-63K | 8 | 28 | 63 | M8 | 1 |
| SK50-SLA10-63K | 10 | 35 | 63 | M10 | 1 |
| SK50-SLA12-63K | 12 | 42 | 63 | M12 | 1 |
| SK50-SLA16-63K | 16 | 48 | 63 | M14 | 1 |
| SK50-SLA18-63K | 18 | 50 | 63 | M14 | 1 |
| SK50-SLA20-63K | 20 | 52 | 63 | M16 | 1 |
| SK50-SLA25-80K | 25 | 65 | 80 | M18*2 | 2 |
| SK50-SLA32-100K | 32 | 72 | 100 | M20*2 | 2 |
| SK50-SLA40-100K | 40 | 80 | 100 | M20*2 | 2 |
| SK50-SLA06-100K | 6 | 25 | 100 | M6 | 1 |
| SK50-SLA08-100K | 8 | 28 | 100 | M8 | 1 |
| SK50-SLA10-100K | 10 | 35 | 100 | M10 | 1 |
| SK50-SLA12-100K | 12 | 42 | 100 | M12 | 1 |
| SK50-SLA14-100K | 14 | 44 | 100 | M12 | 1 |
| SK50-SLA16-100K | 16 | 48 | 100 | M14 | 1 |
| SK50-SLA18-100K | 18 | 50 | 100 | M14 | 1 |
| SK50-SLA20-100K | 20 | 52 | 100 | M16 | 1 |
| SK50-SLA25-120K | 25 | 65 | 120 | M18*2 | 2 |
