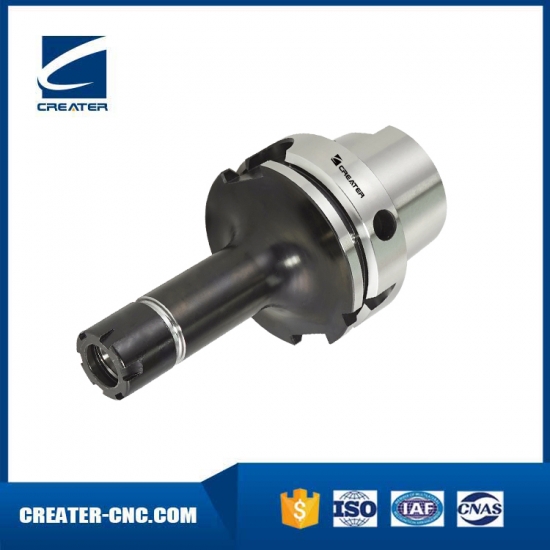

DIN 69893 ER Collet Chuck with Mini Nut
contact now
| Brand: | creater |
|---|
- Specification

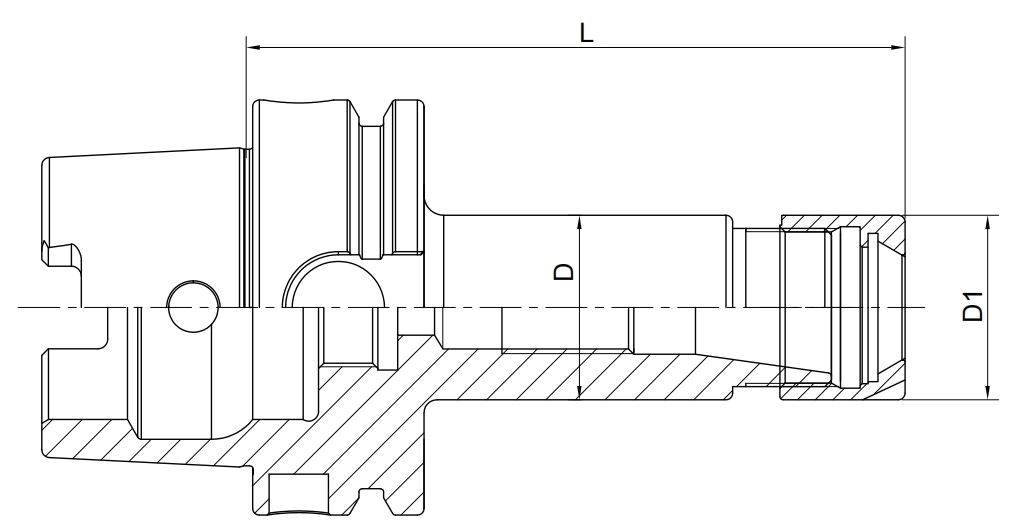

- Simple figure
- Precautions
HSK-ER tool holder is a commonly used tool holder in machine tool processing. It is composed of a tool holder body and an ER collet. It is mainly used to clamp and fix straight-shank cutting tools such as drills and milling cutters machining.
1.Various specifications: ER11, ER16, ER20, ER25, ER32, ER40
2. Easy to operate
3, Wide applicability
| Size | D | D1 | L1 | Capacity |
| HSK32A-ER11M-50 | 16 | 16 | 50 | 1-7 |
| HSK32A-ER16M-50 | 22 | 22 | 50 | 1-10 |
| HSK32A-ER20M-50 | 28 | 28 | 50 | 1-13 |
| HSK40A-ER11M-40 | 16 | 16 | 40 | 1-7 |
| HSK40A-ER16M-60 | 22 | 22 | 60 | 1-10 |
| HSK40A-ER20M-60 | 28 | 28 | 60 | 1-13 |
| HSK50A-ER11M-60 | 16 | 16 | 60 | 1-7 |
| HSK50A-ER16M-60 | 22 | 22 | 60 | 1-10 |
| HSK50A-ER20M-60 | 28 | 28 | 60 | 1-13 |
| HSK63A-ER11M-100 | 16 | 16 | 100 | 1-7 |
| HSK63A-ER16M-100 | 22 | 22 | 100 | 1-10 |
| HSK63A-ER20M-100 | 28 | 28 | 100 | 1-13 |
| HSK63A-ER25M-100 | 35 | 35 | 100 | 2-16 |
| HSK63A-ER11M-160T | 16 | 16 | 160 | 1-7 |
| HSK63A-ER16M-160T | 22 | 22 | 160 | 1-10 |
| HSK63A-ER20M-160 | 28 | 28 | 160 | 1-13 |
| HSK63A-ER25M-160 | 35 | 35 | 160 | 2-16 |
| HSK100A-ER16M-100 | 22 | 22 | 100 | 1-10 |
| HSK100A-ER20M-100 | 28 | 28 | 100 | 1-13 |
| HSK100A-ER25M-100 | 35 | 35 | 100 | 2-16 |
| HSK100A-ER16M-160T | 22 | 22 | 160 | 1-10 |
| HSK100A-ER20M-160 | 28 | 28 | 160 | 1-13 |
| HSK100A-ER25M-160 | 35 | 35 | 160 | 2-16 |
