Morse Taper Adapter DIN6383
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Lead Time: | 20-30days |
- Specification

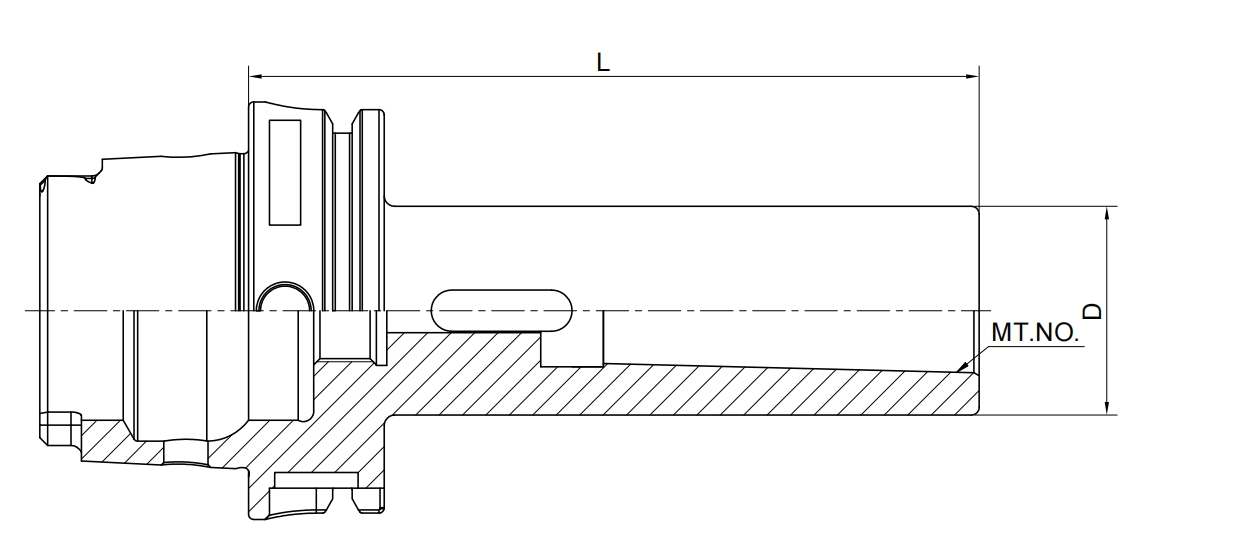

- Simple figure
- Precautions

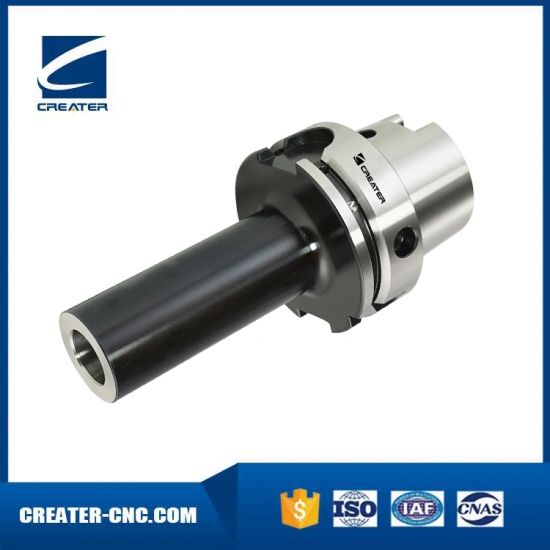

Morse Taper Adapter DIN6383
Taper: AT3
Taper Standard: DIN69893
Accuracy: 0.005mm
Balancing : G2.5/25000RPM
Coolant: A Type inner coolant
| Size | MT. NO. | D | L |
| HSK50A-MTA1-100 | 1 | 25 | 100 |
| HSK50A-MTA2-120 | 2 | 32 | 120 |
| HSK50A-MTA3-140 | 3 | 40 | 140 |
| HSK63A-MTA1-100 | 1 | 25 | 100 |
| HSK63A-MTA2-120 | 2 | 32 | 120 |
| HSK63A-MTA3-140 | 3 | 40 | 140 |
| HSK63A-MTA4-160 | 4 | 48 | 160 |
| HSK80A-MTA1-110 | 1 | 25 | 110 |
| HSK80A-MTA2-120 | 2 | 32 | 120 |
| HSK80A-MTA3-140 | 3 | 40 | 140 |
| HSK80A-MTA4-160 | 4 | 48 | 160 |
| HSK100A-MTA1-110 | 1 | 25 | 110 |
| HSK100A-MTA2-120 | 2 | 32 | 120 |
| HSK100A-MTA3-150 | 3 | 40 | 150 |
| HSK100A-MTA4-170 | 4 | 48 | 170 |
| HSK100A-MTA5-200 | 5 | 63 | 200 |
