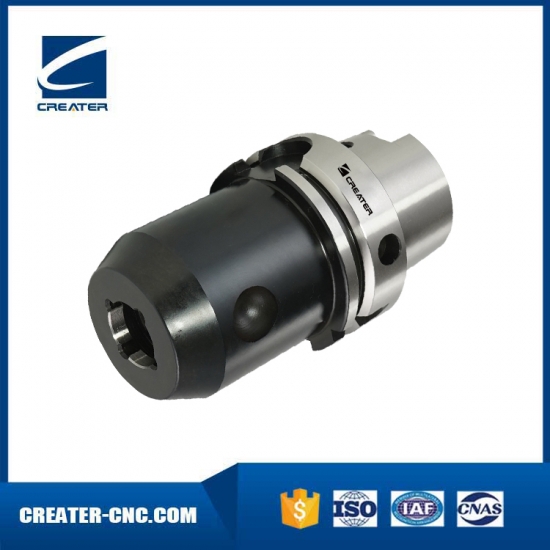

Weldon Holder with Coolant Channels
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening Surface Treatment |
| Lead Time: | 3-30 Days |
| Payment: | TT Payment in Advance |
- Specification
- Simple figure
- Precautions
Side Lock Weldon End Mill Holder Weldon Holder with Coolant Channels DIN6359/1835B
Taper: AT3
Taper Standard: DIN69893 FORM A
Accuracy: 0.005mm
Balancing : G2.5/25000RPM
Coolant: with coolant channels

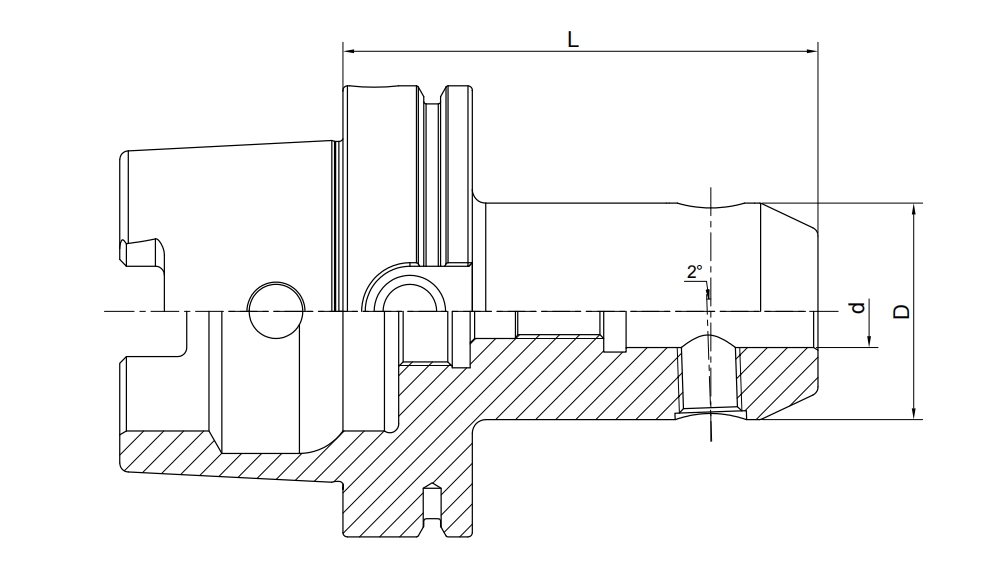

| Model | d | D | L | M | Screw Quantity |
| HSK63A-SLA06-65K | 6 | 25 | 65 | M6 | 1 |
| HSK63A-SLA08-65K | 8 | 28 | 65 | M8 | 1 |
| HSK63A-SLA10-65K | 10 | 35 | 65 | M10 | 1 |
| HSK63A-SLA12-80K | 12 | 42 | 80 | M12 | 1 |
| HSK63A-SLA14-80K | 14 | 44 | 80 | M12 | 1 |
| HSK63A-SLA16-80K | 16 | 48 | 80 | M14 | 1 |
| HSK63A-SLA18-80K | 18 | 50 | 80 | M14 | 1 |
| HSK63A-SLA20-80K | 20 | 52 | 80 | M16 | 1 |
| HSK63A-SLA25-110K | 25 | 65 | 110 | M18*2 | 2 |
| HSK63A-SLA32-110K | 32 | 72 | 110 | M20*2 | 2 |
| HSK63A-SLA40-125K | 40 | 80 | 125 | M20*2 | 2 |
| HSK100A-SLA06-80K | 6 | 25 | 80 | M6 | 1 |
| HSK100A-SLA08-80K | 8 | 28 | 80 | M8 | 1 |
| HSK100A-SLA10-80K | 10 | 35 | 80 | M10 | 1 |
| HSK100A-SLA12-80K | 12 | 42 | 80 | M12 | 1 |
| HSK100A-SLA14-80K | 14 | 44 | 80 | M12 | 1 |
| HSK100A-SLA16-100K | 16 | 48 | 100 | M14 | 1 |
| HSK100A-SLA18-100K | 18 | 50 | 100 | M14 | 1 |
| HSK100A-SLA20-100K | 20 | 52 | 100 | M16 | 1 |
| HSK100A-SLA25-100K | 25 | 65 | 100 | M18*2 | 2 |
| HSK100A-SLA32-100K | 32 | 72 | 100 | M20*2 | 2 |
| HSK100A-SLA40-105K | 40 | 80 | 105 | M20*2 | 2 |
