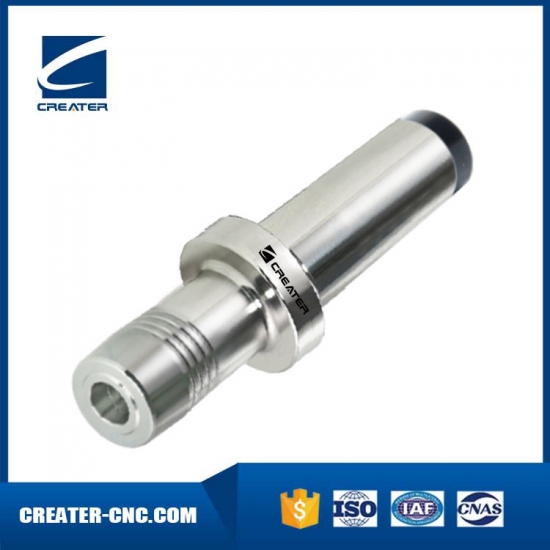

MTB Hydraulic Chuck
contact now
| Brand: | creater |
|---|
- Specification
- Simple figure
- Precautions
MTB type Hydraulic holder is popular used by woodworking industry, With a few simple actions, the tool can be changed quickly and rocess reliably. Insert the tool into the hydraulic expansion toolholder, use an Allen key to screw in the clamping screw to dead stop – finished! It is ime savings due to reduced set-up times and no investment and ergy costs for additional clamping devices.

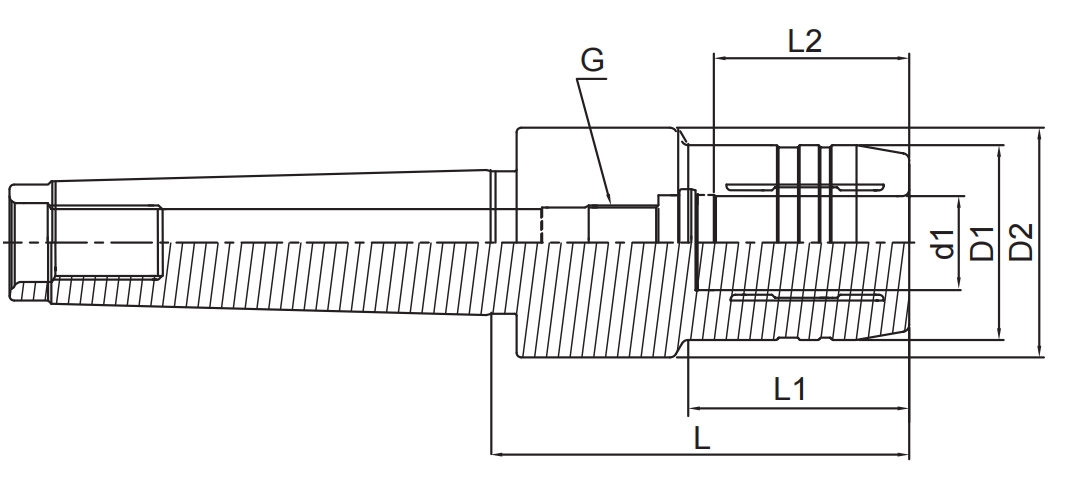

| Size | d1 | D1 | D2 | L | L1 | L2 | G |
| MTB4-HC20-90 | 20 | 42 | 49.5 | 90 | 47.5 | 42 | M16×1 |
| MTB4-HC32-90 | 32 | 72 | 72 | 90 | - | 55 | - |
| MTB5-HC20-90 | 20 | 42 | 49.5 | 90 | 47.5 | 42 | M16×1 |
| MTB5-HC32-90 | 32 | 72 | 72 | 90 | - | 55 | - |
High precision 0.003mm
Better anti-vibration result
High precision machining
