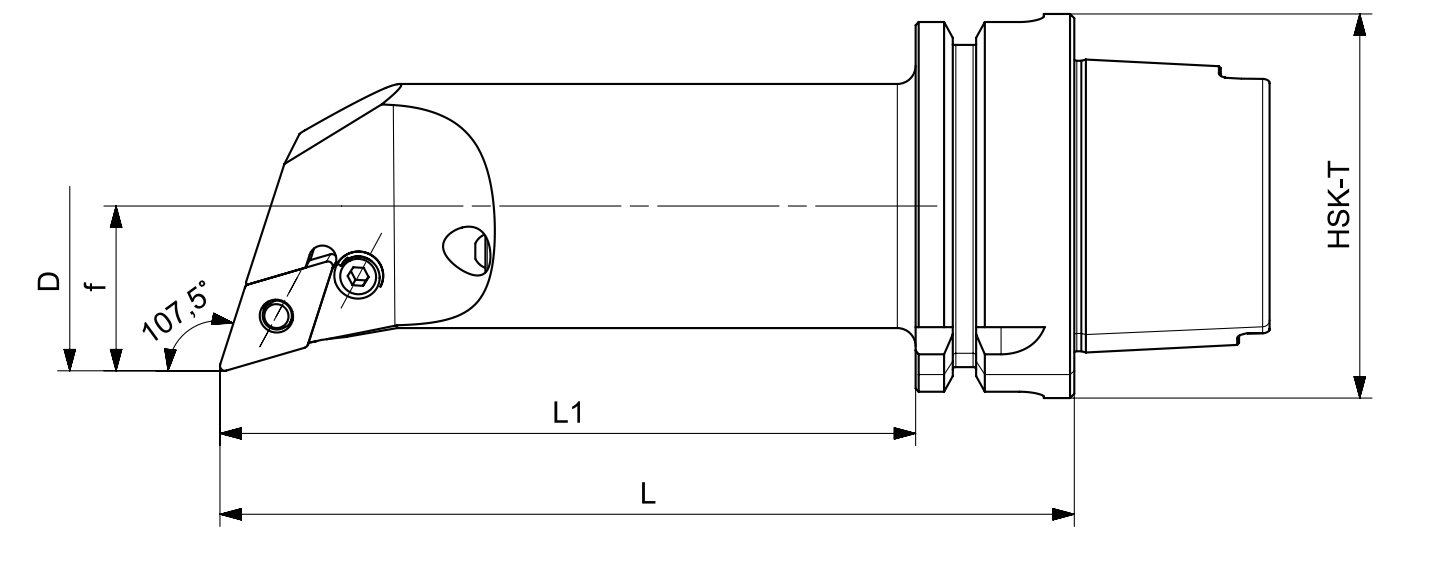

- Simple figure
- Precautions

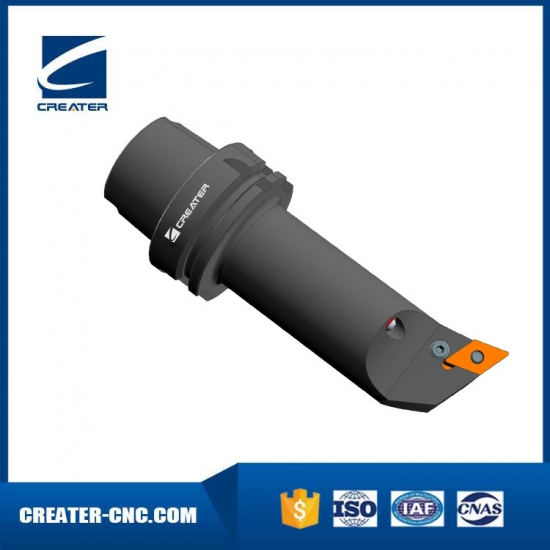

HSK63T and HSK100T Long External Turning Tool Holder for DN Style Negative Inserts
Clamping insert with center hole
Suitable for DN..1506 inserts
Insert clamping system: D
Insert shape code: D
Tool cutting edge angle code: Q
Insert clearance angle: N
Direction of cutting code: R and L
Tool cutting edge angle: 107.5 deg.
Size
f
d1
l1
l2
Direction
Inserts N.
HSK63T-PDQNR-27140-15
27
50
140
114
R
DN..1506..
HSK63T-PDQNL-27140-15
27
50
140
114
L
DN..1506..
HSK63T-PDQNR-27180-15
27
50
180
154
R
DN..1506..
HSK63T-PDQNL-27180-15
27
50
180
154
L
DN..1506..
HSK100T-PDQNR-27150-15
27
50
150
121
R
DN..1506..
HSK100T-PDQNL-27150-15
27
50
150
121
L
DN..1506..
HSK100T-PDQNR-27200-15
27
50
200
171
R
DN..1506..
HSK100T-PDQNL-27200-15
27
50
200
171
L
DN..1506..
HSK100T-PDQNR-35150-15
35
63
150
121
R
DN..1506..
HSK100T-PDQNL-35150-15
35
63
150
121
L
DN..1506..
HSK100T-PDQNR-35200-15
35
63
200
171
R
DN..1506..
HSK100T-PDQNL-35200-15
35
63
200
171
L
DN..1506..
-
