HSK-T Turning Tool DCLNR | DCLNL 95°/80°
contact now
| Brand: | creater |
|---|
- Specification
- Simple figure
- Precautions

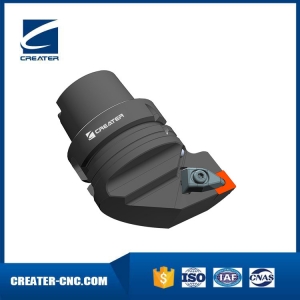

HSK63T and HSK100T Turning Toolholder for CN Style Negative Inserts
For general external turning operations
Permits use of the obtuse edge of a standard CNMG insert
Top clamp for increased security
Suitable for CN..1204 and CN.1606 inserts
Insert clamping system: D
Insert shape code: C
Tool cutting edge angle code: L
Insert clearance angle: 0 deg.
Direction of cutting: Both right hand (R) and left hand (L) are available
Tool cutting edge angle: 95 deg.

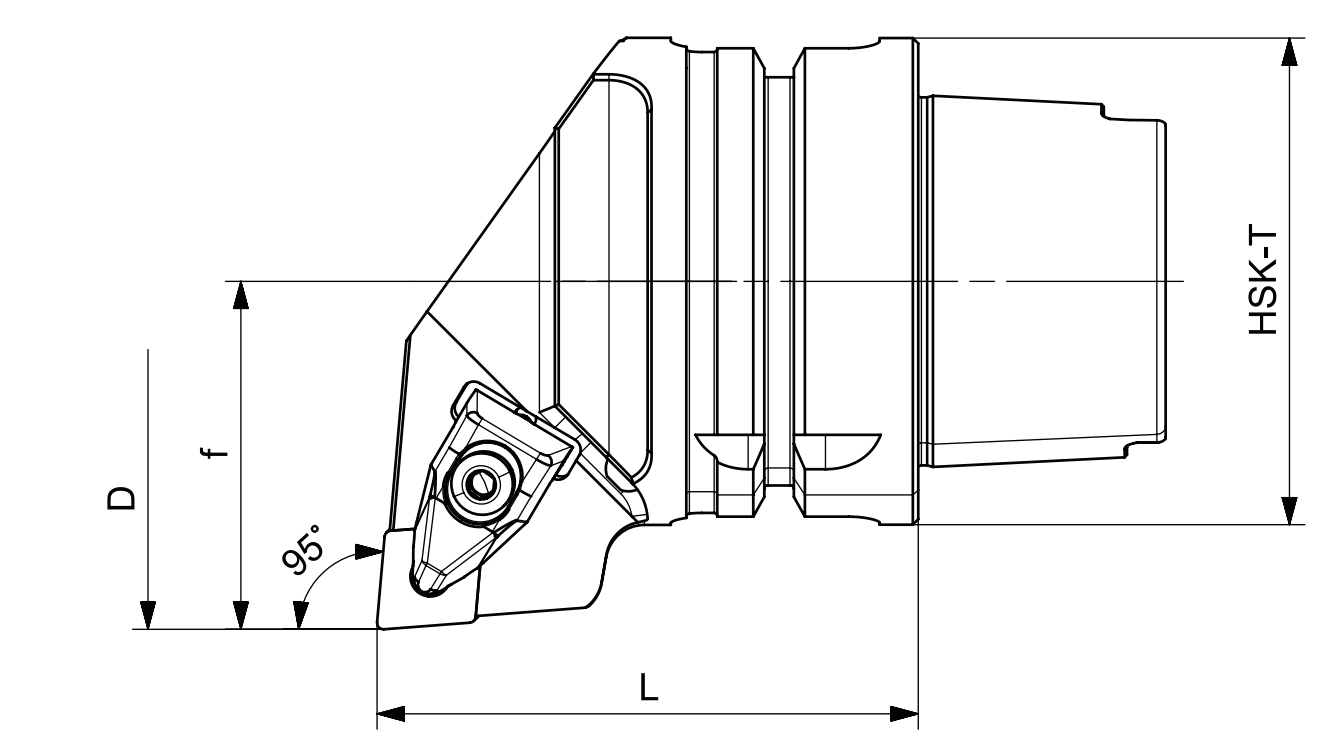

| Size | f | D | L | Direction | Inserts N. |
| HSK63T-DCLNR-45070-12 | 45 | 80 | 70 | R | CN..1204.. |
| HSK63T-DCLNL-45070-12 | 45 | 80 | 70 | L | CN..1204.. |
| HSK63T-DCLNR-45070-16 | 45 | 80 | 70 | R | CN..1606.. |
| HSK63T-DCLNL-45070-16 | 45 | 80 | 70 | L | CN..1606.. |
| HSK100T-DCLNR-63100-12 | 63 | 120 | 100 | R | CN..1204.. |
| HSK100T-DCLNL-63100-12 | 63 | 120 | 100 | L | CN..1204.. |
| HSK100T-DCLNR-63100-16 | 63 | 120 | 100 | R | CN..1606.. |
| HSK100T-DCLNL-63100-16 | 63 | 120 | 100 | L | CN..1606.. |
