Morse Taper ER Collet Chuck
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening |
| Lead Time: | 20 Days |
| Payment: | TT in Advance |
- Specification

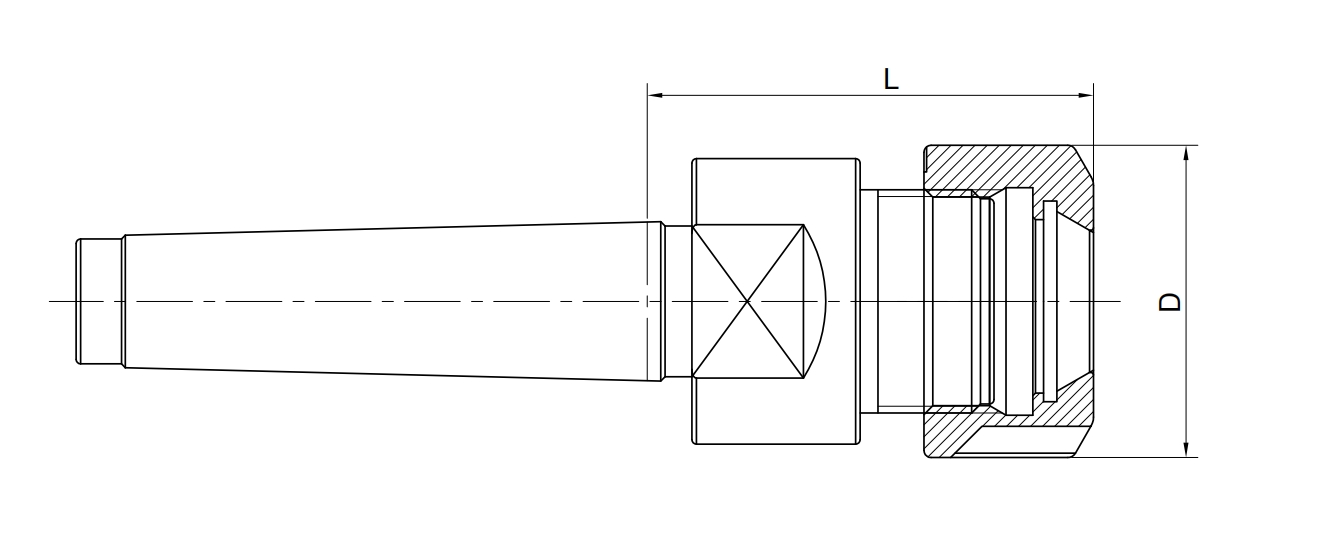

- Simple figure
- Precautions

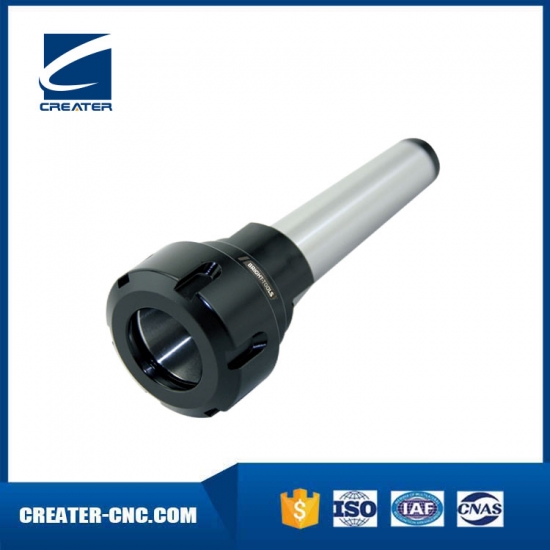

Morse Taper ER Collet Chuck
Morse: MT1 MT2 MT3 MT4
Taper: MTA and MTB. MTA is for tools with tang, MTB is for connected with thread
| Size | D | L | Capacity |
| MTA2-ER16M-50 | 22 | 50 | 1-10 |
| MTA2-ER20M-50 | 28 | 50 | 1-13 |
| MTA2-ER25-60 | 42 | 60 | 2-16 |
| MTA2-ER32-60 | 50 | 60 | 2-20 |
| MTA3-ER16M-60 | 22 | 60 | 1-10 |
| MTA3-ER20M-60 | 28 | 60 | 1-13 |
| MTA3-ER25-60 | 42 | 60 | 2-16 |
| MTA3-ER32-70 | 50 | 70 | 2-20 |
| MTA3-ER40-80 | 63 | 80 | 3-26 |
| MTA4-ER25-60 | 42 | 60 | 2-16 |
| MTA4-ER32-70 | 50 | 70 | 2-20 |
| MTA4-ER40-80 | 63 | 80 | 3-26 |
| MTA5-ER40-80 | 63 | 80 | 3-26 |
