DIN 69893 Precision Drill Chuck Holder
contact now
| Brand: | creater |
|---|
- Specification
- Simple figure
- Precautions

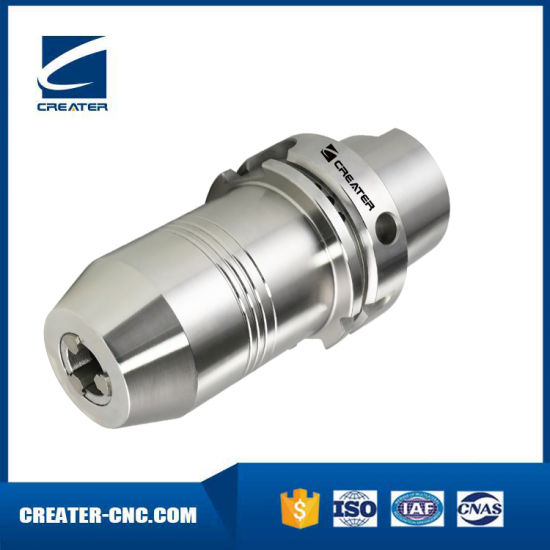

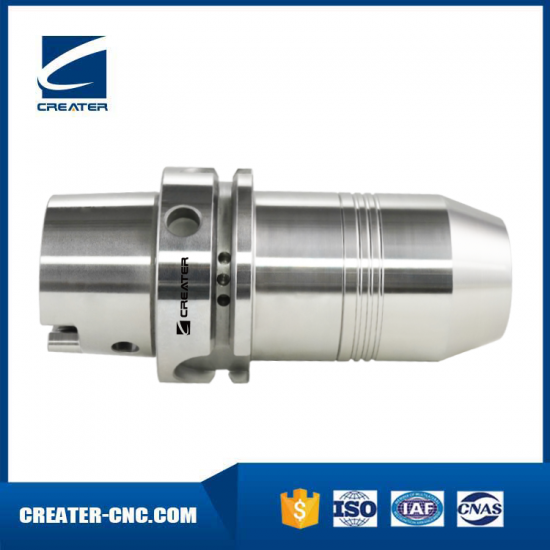

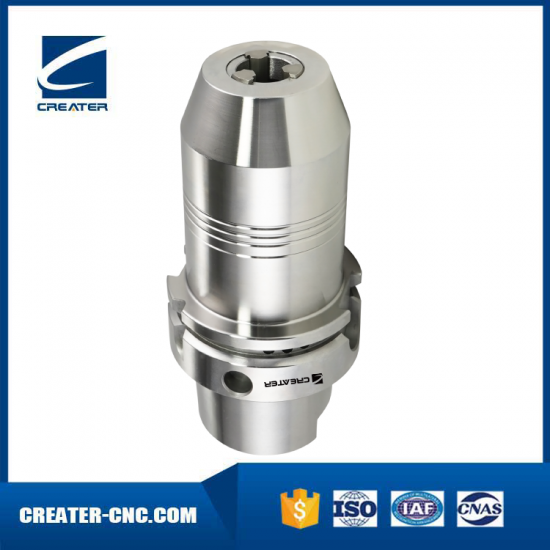

Precision Drill Chuck Holder
HSKA CPU Drill chuck ,worm and gear structure greatly increase the clamping power. integral structure increase the rigidity and accuracy. Runout reach 0.05mm. The claw use Nitriding process increase the wear resistance and longer tool life
1)worm and gear structure greatly increase the clamping power. integral structure increase the rigidity and accuracy
2)Runout reach 0.05mm
3)Claw use Nitriding Porcess

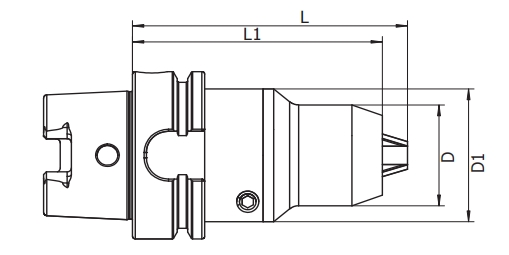

Size
D
D1
L
L1
Capacity
HSK63A-CPU10-90
38
50
90
32
1-10
HSK63A-CPU13-100
50
-
100
-
1-13
HSK63A-CPU16-100
50
-
100
-
1-16
HSK100A-CPU13-105
50
-
105
-
1-13
HSK100A-CPU16-105
50
-
105
-
1-16
