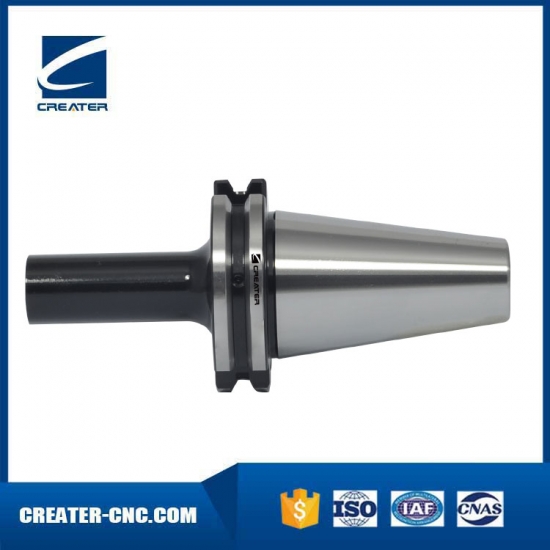

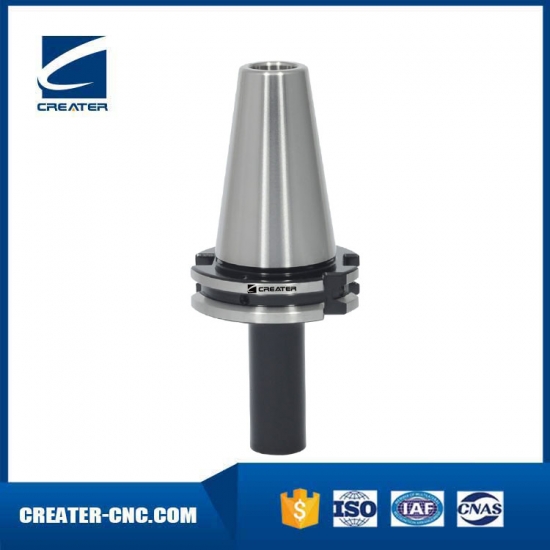

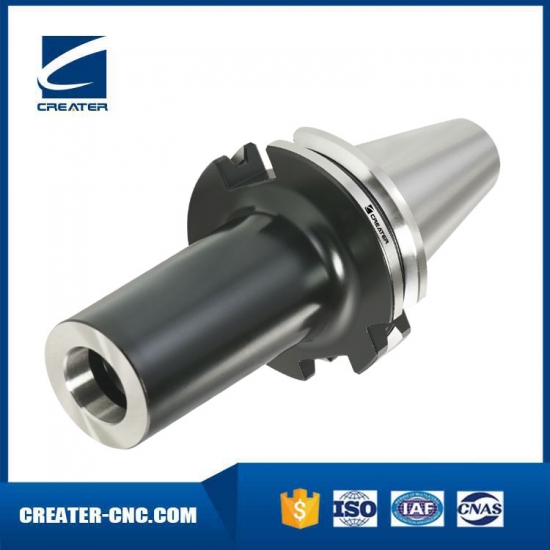

DIN 69871 SK Screw-in Milling Cutter Holder
Brand: creater
contact now
  • Specification
  • Simple figure
  • Precautions

Screw-in Milling Cutter Holder

SK SOM tool holder is connected the tools directly, this improve processing accuracy, rigidity  and easy to make tools exchange

1. High precision

2. High rigidity, improving quality and reducing consumption.

3. Improve efficiency.

4. Convenience

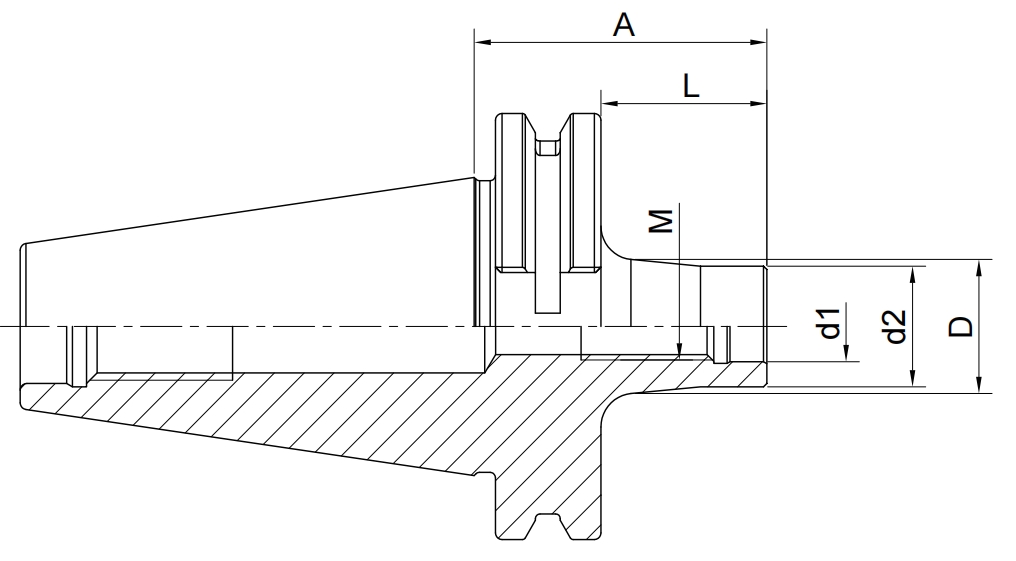

Size M d1 d2 A L
SK40-M10-119  L=100 10 10.5 18 119 100
SK40-M10-169  L=150 10 10.5 18 169 150
SK40-M12-119  L=100 12 12.5 21 119 100
SK40-M12-144  L=125 12 12.5 21 144 125
SK40-M12-169  L=150 12 12.5 21 169 150
SK40-M16-119  L=100 16 17 29 119 100
SK40-M16-144  L=125 16 17 29 144 125
SK40-M16-169  L=150 16 17 29 169 150
SK50-M10-119  L=100 10 10.5 18 119 100
SK50-M10-169  L=150 10 10.5 18 169 150
SK50-M12-119  L=100 12 12.5 21 119 100
SK50-M12-169  L=150 12 12.5 21 169 150
SK50-M16-119  L=100 16 17 29 119 100
SK50-M16-169  L=150 16 17 29 169 150
