| Product Origin: | China |
|---|---|
| Brand: | creater |
- Specification

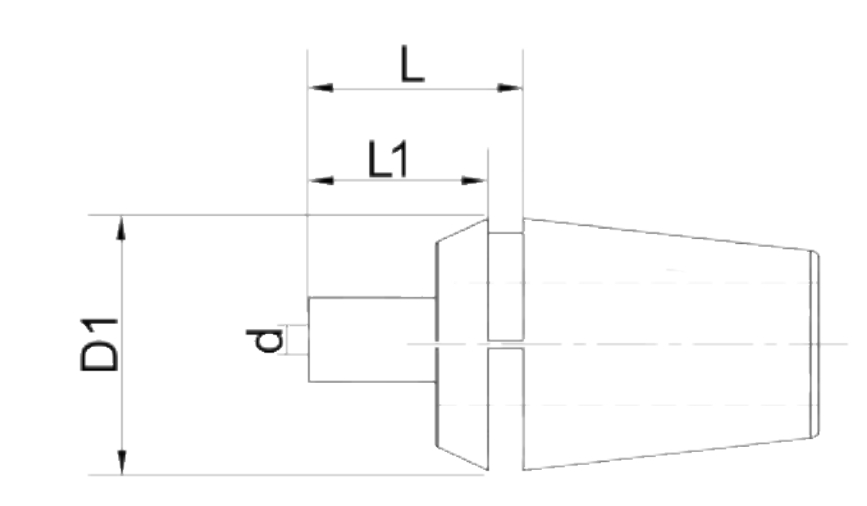

- Simple figure
- Precautions

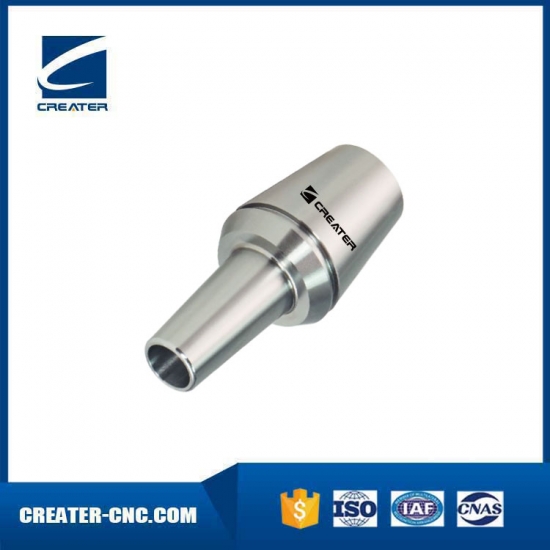

Standard Shrink fit Chuck use Heat resistant hot-working steel to clamp HSS and solid carbide tools via steel thermal expansion character. 0,003 mm accuracy and precise taper tolerances improve tool life, subsequent fine balancing bring Better surface quality and Low wear of the machine spindle
Size
Collet Size
d
D1
L
L1
ER16-SFS03-35
ER16
3
16
41.7
35
ER16-SFS04-35
ER16
4
16
41.7
35
ER16-SFS05-35
ER16
5
16
41.7
35
ER16-SFS06-35
ER16
6
16
41.7
35
ER20-SFS03-35
ER20
3
20
42.52
35
ER20-SFS04-35
ER20
4
20
42.52
35
ER20-SFS05-35
ER20
5
20
42.52
35
ER20-SFS06-35
ER20
6
20
42.52
35
ER20-SFS08-35
ER20
8
20
42.52
35
ER25-SFS03-35
ER25
3
25
43
35
ER25-SFS04-35
ER25
4
25
43
35
ER25-SFS05-35
ER25
5
25
43
35
ER25-SFS06-35
ER25
6
25
43
35
ER25-SFS08-35
ER25
8
25
43
35
ER25-SFS10-35
ER25
10
25
43
35
ER32-SFS03-35
ER32
3
32
44
35
ER32-SFS04-35
ER32
4
32
44
35
ER32-SFS05-35
ER32
5
32
44
35
ER32-SFS06-35
ER32
6
32
44
35
ER32-SFS08-35
ER32
8
32
44
35
ER32-SFS10-35
ER32
10
32
44
35
ER32-SFS12-35
ER32
12
32
44
35
ER32-SFS14-35
ER32
14
32
44
35
ER32-SFS16-35
ER32
16
32
44
35
