DIN 69893 Face Mill Holder
contact now
| Brand: | creater |
|---|
- Specification
- Simple figure
- Precautions

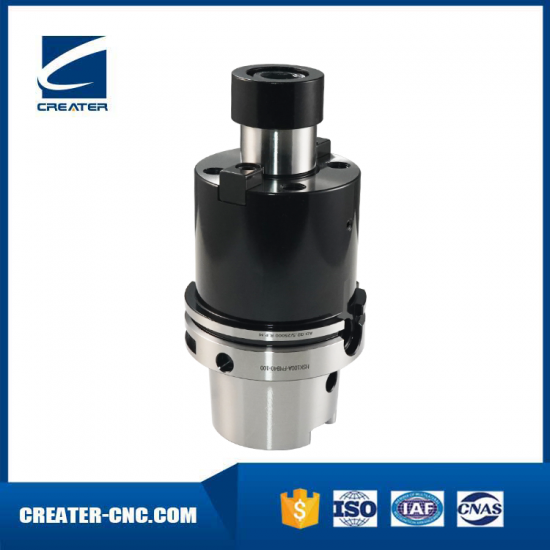

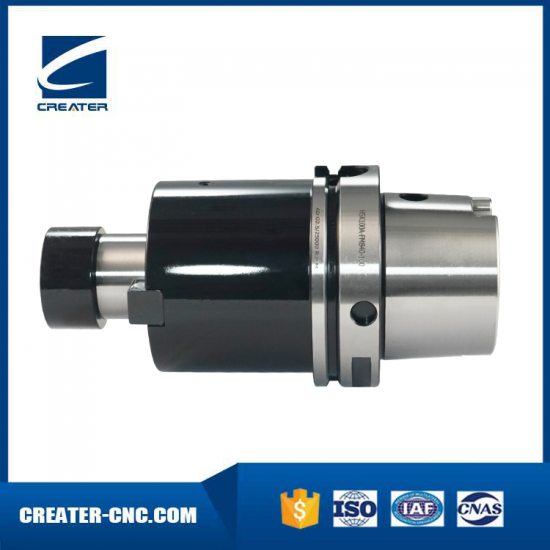

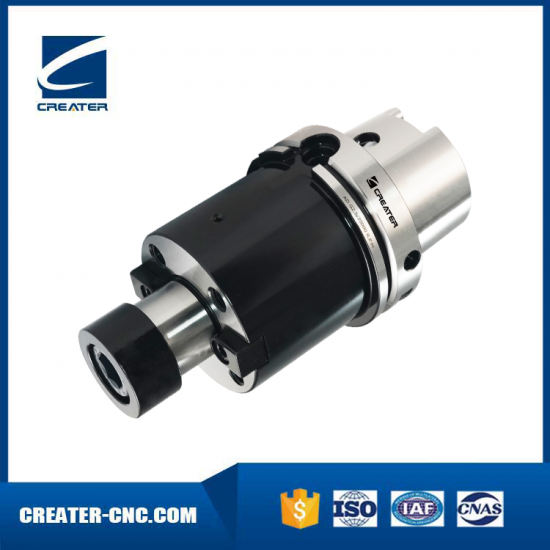

Face Mill Holder
HSKA-FMB face milling tool holder is a kind of tool holder specially used for face milling cutters
1.Good rigidity
2.High cutting efficiency
3.Convenient operation

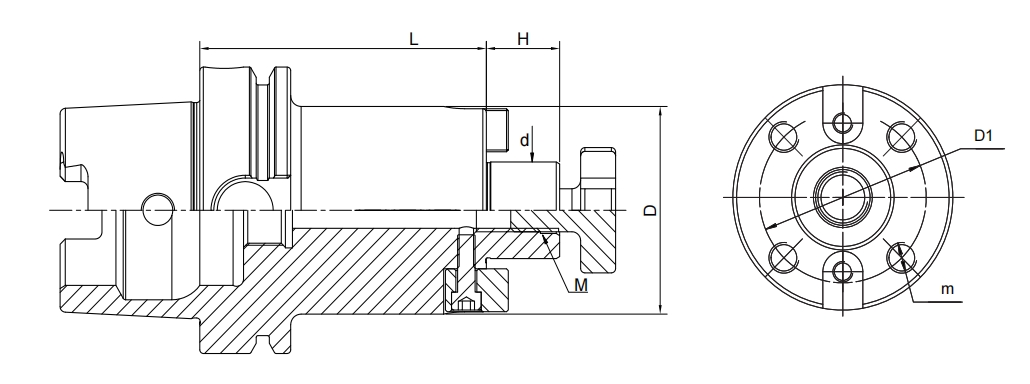

| Size | d | D | D2 | H | L | M | m |
| HSK63A-FMB40-60 | 40 | 88 | 66.7 | 27 | 60 | M20 | M12 |
| HSK63A-FMB40-100 | 40 | 88 | 66.7 | 27 | 100 | M20 | M12 |
| HSK63A-FMB40-160 | 40 | 88 | 66.7 | 27 | 160 | M20 | M12 |
| HSK63A-FMB40-200 | 40 | 88 | 66.7 | 27 | 200 | M20 | M12 |
| HSK80A-FMB40-60 | 40 | 88 | 66.7 | 27 | 60 | M20 | M12 |
| HSK100A-FMB40-60 | 40 | 88 | 66.7 | 27 | 60 | M20 | M12 |
| HSK100A-FMB60-70 | 60 | 129 | 101.6 | 25 | 70 | M30 | M16 |
| HSK100A-FMB40-100 | 40 | 88 | 66.7 | 27 | 100 | M20 | M12 |
| HSK100A-FMB40-160 | 40 | 88 | 66.7 | 27 | 160 | M20 | M12 |
| HSK100A-FMB40-200 | 40 | 88 | 66.7 | 27 | 200 | M20 | M12 |
| HSK100A-FMB40-250 | 40 | 88 | 66.7 | 27 | 250 | M20 | M12 |
| HSK100A-FMB40-300 | 40 | 88 | 66.7 | 27 | 300 | M20 | M12 |
