Products
Rubber Sealed Collet
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening |
| Lead Time: | 5-30 Days |
- Specification
- Simple figure
- Precautions

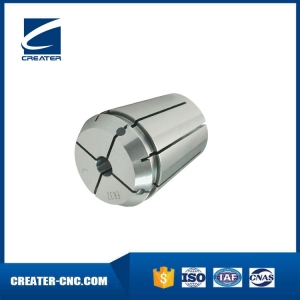

Rubber Sealed Collet
ERS16, ERS20, ERS25, ERS32, ERS40
Accuracy: 0.01 mm
Hardness: HRC 44-48

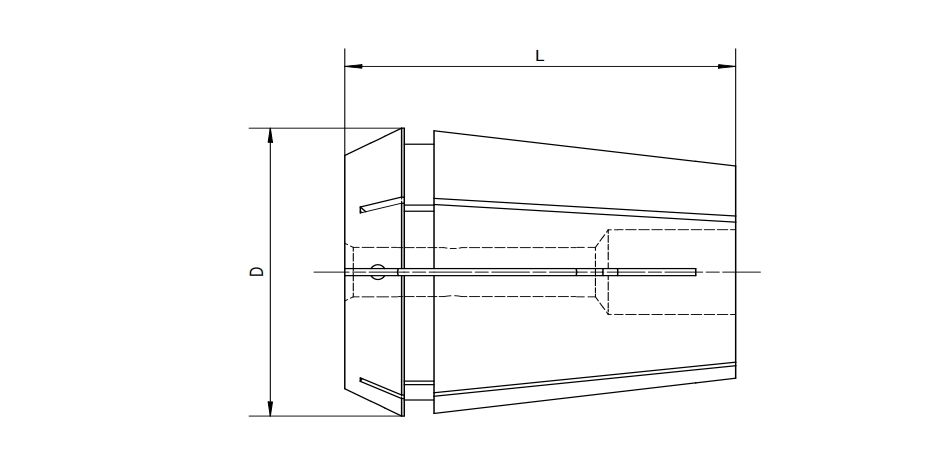

| Size | D | L | Diameter |
| ERS16-03 | 16.74 | 27.5 | 3 |
| ERS16-04 | 16.74 | 27.5 | 4 |
| ERS16-05 | 16.74 | 27.5 | 5 |
| ERS16-06 | 16.74 | 27.5 | 6 |
| ERS16-07 | 16.74 | 27.5 | 7 |
| ERS16-08 | 16.74 | 27.5 | 8 |
| ERS16-09 | 16.74 | 27.5 | 9 |
| ERS16-10 | 16.74 | 27.5 | 10 |
| ERS20-03 | 20.74 | 31.5 | 3 |
| ERS20-04 | 20.74 | 31.5 | 4 |
| ERS20-05 | 20.74 | 31.5 | 5 |
| ERS20-06 | 20.74 | 31.5 | 6 |
| ERS20-07 | 20.74 | 31.5 | 7 |
| ERS20-08 | 20.74 | 31.5 | 8 |
| ERS20-09 | 20.74 | 31.5 | 9 |
| ERS20-10 | 20.74 | 31.5 | 10 |
| ERS20-11 | 20.74 | 31.5 | 11 |
| ERS20-12 | 20.74 | 31.5 | 12 |
| ERS20-13 | 20.74 | 31.5 | 13 |
| ERS25-03 | 25.74 | 34 | 3 |
| ERS25-04 | 25.74 | 34 | 4 |
| ERS25-05 | 25.74 | 34 | 5 |
| ERS25-06 | 25.74 | 34 | 6 |
| ERS25-07 | 25.74 | 34 | 7 |
| ERS25-08 | 25.74 | 34 | 8 |
| ERS25-09 | 25.74 | 34 | 9 |
| ERS25-10 | 25.74 | 34 | 10 |
| ERS25-11 | 25.74 | 34 | 11 |
| ERS25-12 | 25.74 | 34 | 12 |
| ERS25-13 | 25.74 | 34 | 13 |
| ERS25-14 | 25.74 | 34 | 14 |
| ERS25-15 | 25.74 | 34 | 15 |
| ERS25-16 | 25.74 | 34 | 16 |
| ERS32-03 | 32.74 | 40 | 3 |
| ERS32-04 | 32.74 | 40 | 4 |
| ERS32-05 | 32.74 | 40 | 5 |
| ERS32-06 | 32.74 | 40 | 6 |
| ERS32-07 | 32.74 | 40 | 7 |
| ERS32-08 | 32.74 | 40 | 8 |
| ERS32-09 | 32.74 | 40 | 9 |
| ERS32-10 | 32.74 | 40 | 10 |
| ERS32-11 | 32.74 | 40 | 11 |
| ERS32-12 | 32.74 | 40 | 12 |
| ERS32-13 | 32.74 | 40 | 13 |
| ERS32-14 | 32.74 | 40 | 14 |
| ERS32-15 | 32.74 | 40 | 15 |
| ERS32-16 | 32.74 | 40 | 16 |
| ERS32-17 | 32.74 | 40 | 17 |
| ERS32-18 | 32.74 | 40 | 18 |
| ERS32-19 | 32.74 | 40 | 19 |
| ERS32-20 | 32.74 | 40 | 20 |
| ERS40-04 | 40.74 | 46 | 4 |
| ERS40-05 | 40.74 | 46 | 5 |
| ERS40-06 | 40.74 | 46 | 6 |
| ERS40-07 | 40.74 | 46 | 7 |
| ERS40-08 | 40.74 | 46 | 8 |
| ERS40-09 | 40.74 | 46 | 9 |
| ERS40-10 | 40.74 | 46 | 10 |
| ERS40-11 | 40.74 | 46 | 11 |
| ERS40-12 | 40.74 | 46 | 12 |
| ERS40-13 | 40.74 | 46 | 13 |
| ERS40-14 | 40.74 | 46 | 14 |
| ERS40-15 | 40.74 | 46 | 15 |
| ERS40-16 | 40.74 | 46 | 16 |
| ERS40-17 | 40.74 | 46 | 17 |
| ERS40-18 | 40.74 | 46 | 18 |
| ERS40-19 | 40.74 | 46 | 19 |
| ERS40-20 | 40.74 | 46 | 20 |
| ERS40-21 | 40.74 | 46 | 21 |
| ERS40-22 | 40.74 | 46 | 22 |
| ERS40-23 | 40.74 | 46 | 23 |
| ERS40-24 | 40.74 | 46 | 24 |
| ERS40-25 | 40.74 | 46 | 25 |
| ERS40-26 | 40.74 | 46 | 26 |
