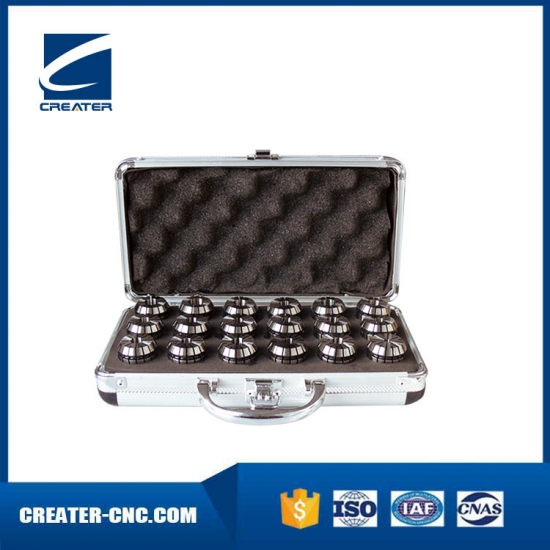

ER Collet Set
/uploadfile/202309/20/7558d321fd20c6cc2c91d2c76b032872_square.jpg
ER Collet Set
Product Origin: China
Brand: creater
contact now
  • Specification
  • Simple figure
  • Precautions

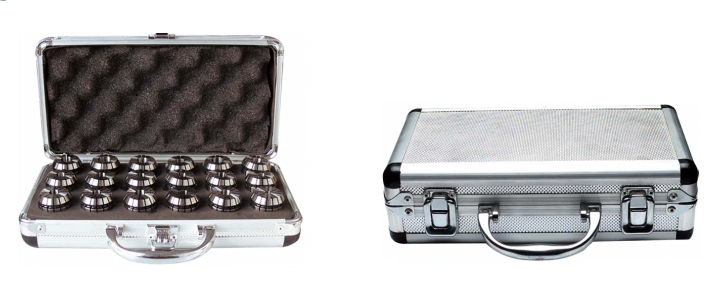

ER Collet Set



Accuracy : 0.008mm, 0.005mm

Size: ER11 ER16 ER20 ER25 ER32 ER40



Metric Size
Size Collet Diameter PCS/SET
ER8-9 PCS 1,1.5,2,2.5,3,3.5,4,4.5,5 9
ER8-5 PCS 1,2,3,4,5 5
ER11-7 PCS 1,2,3,4,5,6,7 7
ER11-13 PCS 1,1.5,2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7 13
ER16-10 PCS 1,2,3,4,5,6,7,8,9,10 10
ER20-13 PCS 1,2,3,4,5,6,7,8,9,10,11,12,13 13
ER25-15 PCS 2,3,4,5,6,7,8,9,10,11,12,13,14,15,16 15
ER32-18 PCS 3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20 18
ER40-23 PCS 4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26 23
Inch Size
Size Collet Diameter PCS/SET
ER8-6 PCS (inch) 1/32, 1/16, 3/32, 1/8, 5/32, 3/16 6
ER16-8 PCS (inch) 1/8, 5/32, 3/16, 7/32, 1/4,5/16,11/32,3/8 8
ER20-11 PCS (inch) 1/8,5/32,3/16,7/32,1/4,9/32,5/16,11/32,3/8,7/16,1/2 11
ER25-9 PCS (inch) 1/8, 3/16, 1/4,5/16,3/8,7/16,1/2,9/16,5/8 9
ER32-18 PCS (inch) 1/8,5/32,3/16,7/32,1/4,9/32,5/16,11/32,3/8,13/32,
7/16,15/32,1/2,9/16,5/8,11/16,23/32,3/4		 18
ER40-23 PCS (inch) 1/8,5/32,3/16,7/32,1/4,9/32,5/16,11/32,3/8,13/32,7/16,15/32, 1/2,9/16,5/8,11/16,23/32,3/4,13/16,27/32,7/8,29/32,1" 23
