Products
SK Pull Stud
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening |
| Lead Time: | 5 Days |
- Specification
- Simple figure
- Precautions

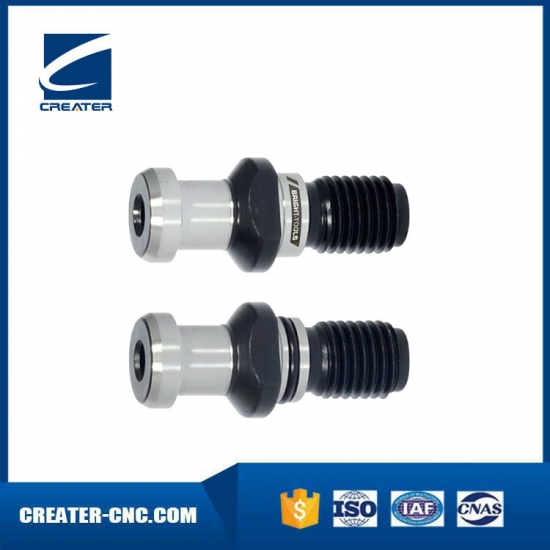

SK30 SK40 SK50 Pull Stud Retention Knob
Standard: DIN69872
Material: 20CrMnTi
A Type is through hole without O-ring,
B Type is not through hole and with O-ring.

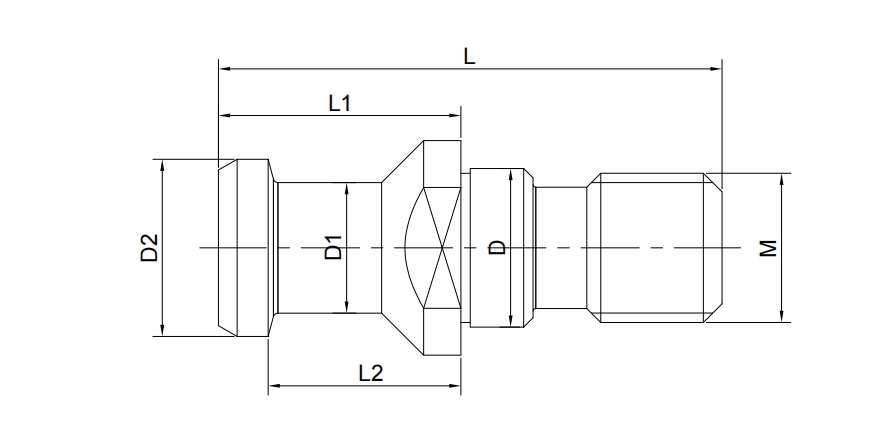

| Size | D | D1 | D2 | M | L | L1 | L2 |
| SK-30A | 13 | 9 | 13 | M12 | 44 | 24 | 19 |
| SK-40A | 17 | 14 | 19 | M16 | 54 | 26 | 20 |
| SK-50A | 25 | 21 | 28 | M24 | 74 | 34 | 25 |
| SK-30AO | 13 | 9 | 13 | M12 | 44 | 24 | 19 |
| SK-40AO | 17 | 14 | 19 | M16 | 54 | 26 | 20 |
| SK-50AO | 25 | 21 | 28 | M24 | 74 | 34 | 25 |
| SK-30B | 13 | 9 | 13 | M12 | 44 | 24 | 19 |
| SK-40B | 17 | 14 | 19 | M16 | 54 | 26 | 20 |
| SK-50B | 25 | 21 | 28 | M24 | 74 | 34 | 25 |
| SK-30BO | 13 | 9 | 13 | M12 | 44 | 24 | 19 |
| SK-40BO | 17 | 14 | 19 | M16 | 54 | 26 | 20 |
| SK-50BO | 25 | 21 | 28 | M24 | 74 | 34 | 25 |
Previous :ISO 7388 Pull Stud
Next :BT Pull Stud
