UM Adjustable Tool Holder MAS403
contact now
| Brand: | creater |
|---|
- Specification
- Simple figure
- Precautions

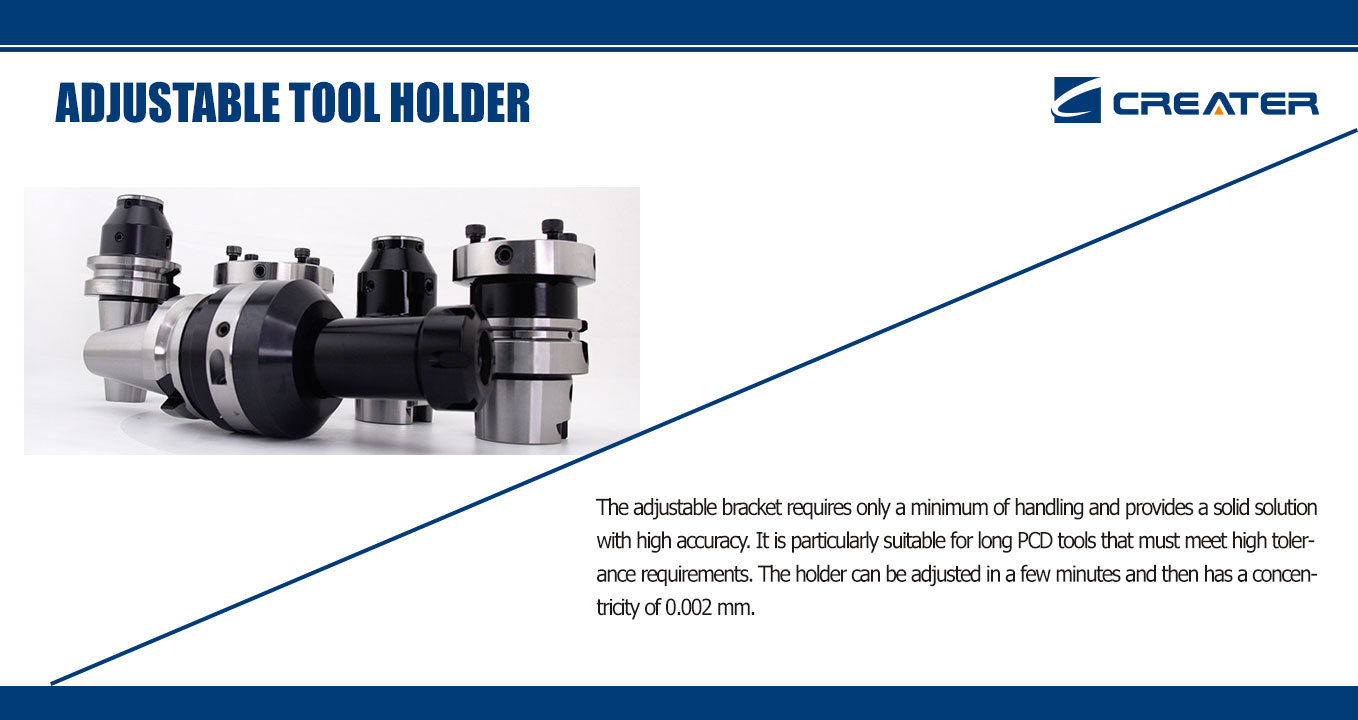

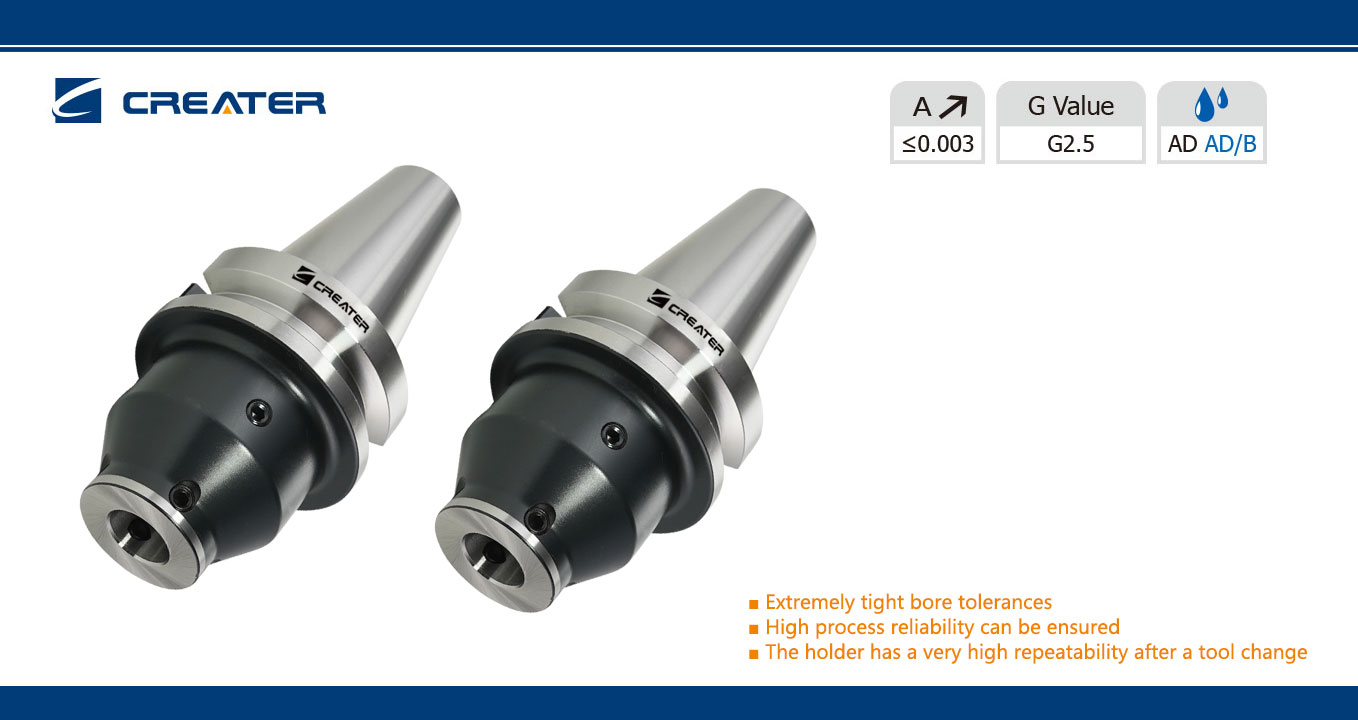

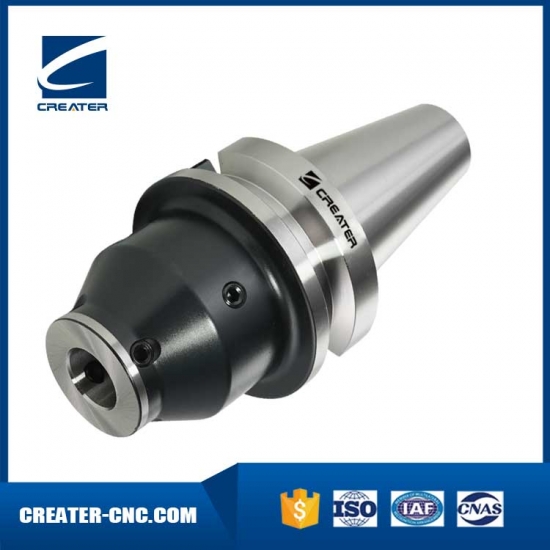

Creater BT Factory Supply High Quality UM Adjustable Tool Holder

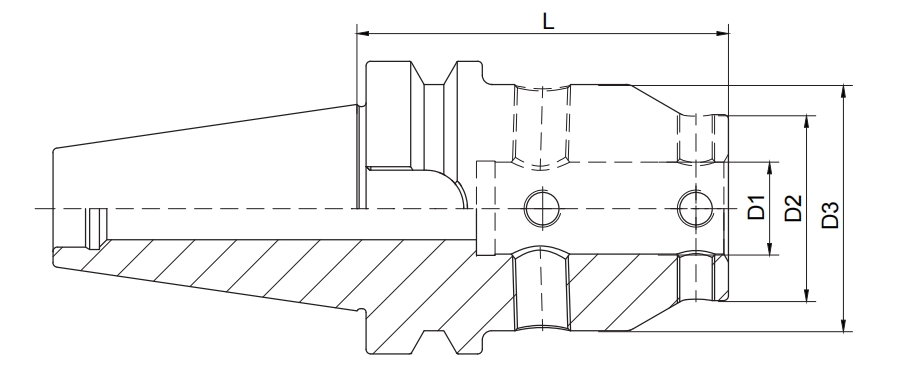

| Size | D1 | D2 | D3 | L |
| BT30-UM12-65 | 12 | 28 | 44.5 | 65 |
| BT30-UM16-75 | 16 | 32 | 48 | 75 |
| BT30-UM20-85 | 20 | 40 | 53 | 85 |
| BT30-UM25-95 | 25 | 48 | 63 | 95 |
| BT30-UM32-100 | 32 | 52 | 63 | 100 |
| BT40-UM12-70 | 12 | 28 | 44.5 | 70 |
| BT40-UM16-70 | 16 | 32 | 48 | 70 |
| BT40-UM20-80 | 20 | 40 | 53 | 80 |
| BT40-UM25-100 | 25 | 48 | 63 | 100 |
| BT40-UM32-95 | 32 | 52 | 63 | 95 |
| BT50-UM12-80 | 12 | 28 | 44.5 | 80 |
| BT50-UM16-85 | 16 | 32 | 48 | 85 |
| BT50-UM20-90 | 20 | 40 | 53 | 90 |
| BT50-UM25-105 | 25 | 48 | 63 | 105 |
| BT50-UM32-105 | 32 | 52 | 63 | 105 |
