Products
Power Milling Chuck
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Plating Blackening |
| Lead Time: | 30 Days |
| Payment: | TT |
- Specification
- Simple figure
- Precautions

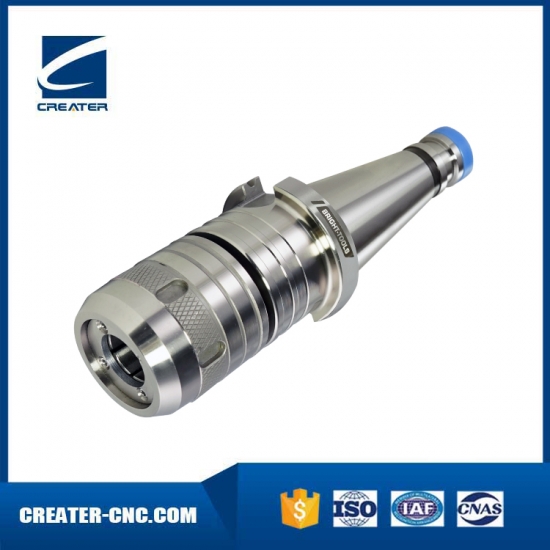

Power Milling Chuck DIN2080 NT with Straight Shank Collet
Runout: <0.005mm
Taper Torlerabce: <AT3
Surface Treatment: Plating
Milling Chuck Application: for mounting straight shank tools in Straight Shank Collet.

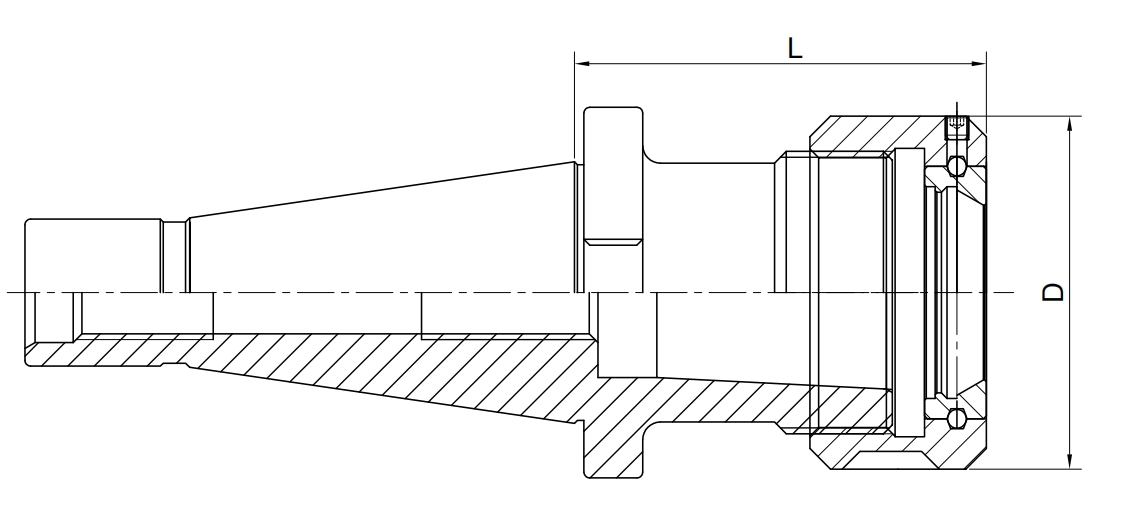

| Size | d | D | L | Capacity | M |
| NT40-HC25-105(OTT) | 25 | 59 | 105 | 3-20; 25 | M16 |
| NT40-HC32-105(OTT) | 32 | 72 | 105 | 3-25; 32 | M16 |
| NT50-HC32-110(OTT) | 32 | 72 | 110 | 3-25; 32 | M24 |
| NT50-HC42-120(OTT) | 42 | 99 | 120 | 3-32; 42 | M24 |
