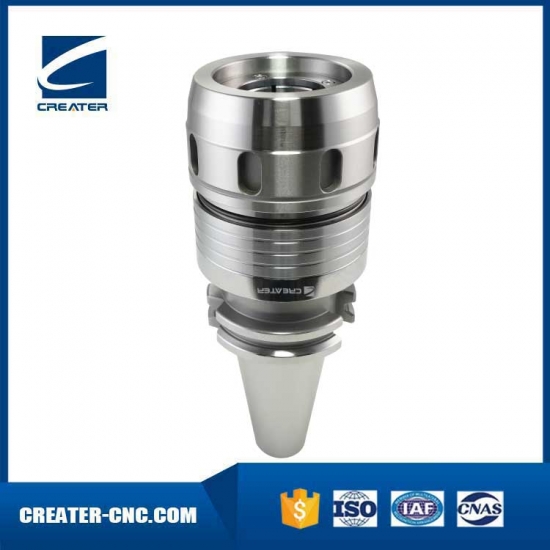

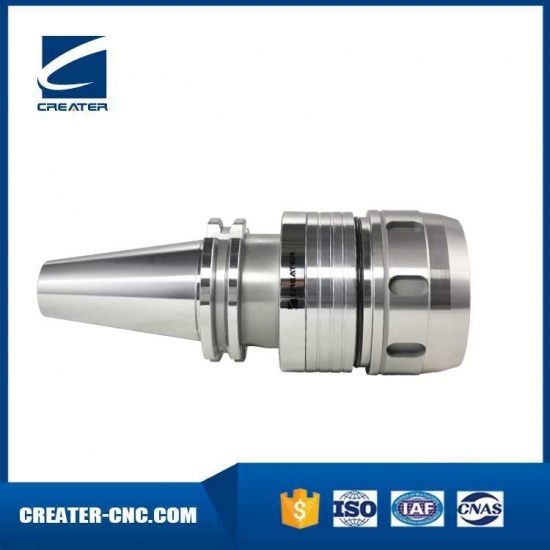

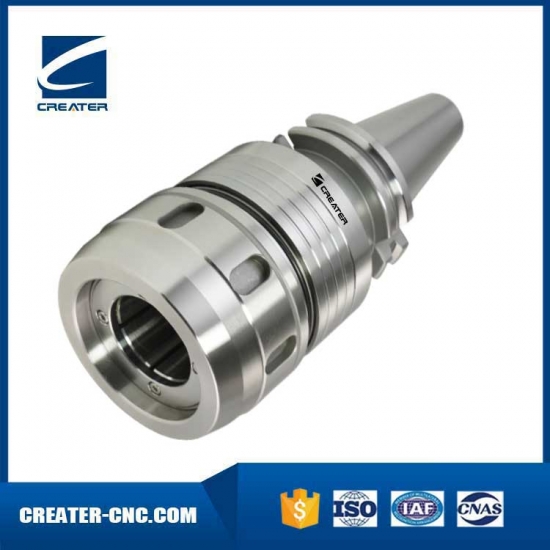

DIN 69871 SK Power Milling Chuck
Brand: creater
contact now
  • Specification
  • Simple figure
  • Precautions

Power Milling Chuck

SK-Milling chuck is suitable for drilling and heavy cutting, High clamping force increases productivity and extends tool life

1.Triple seal to prevent iron filings and coolant pollution

2. Contains ball bearings to reduce frictional resistance and parts loss during locking

3. High beating accuracy, 3 times the diameter beating 5-8u

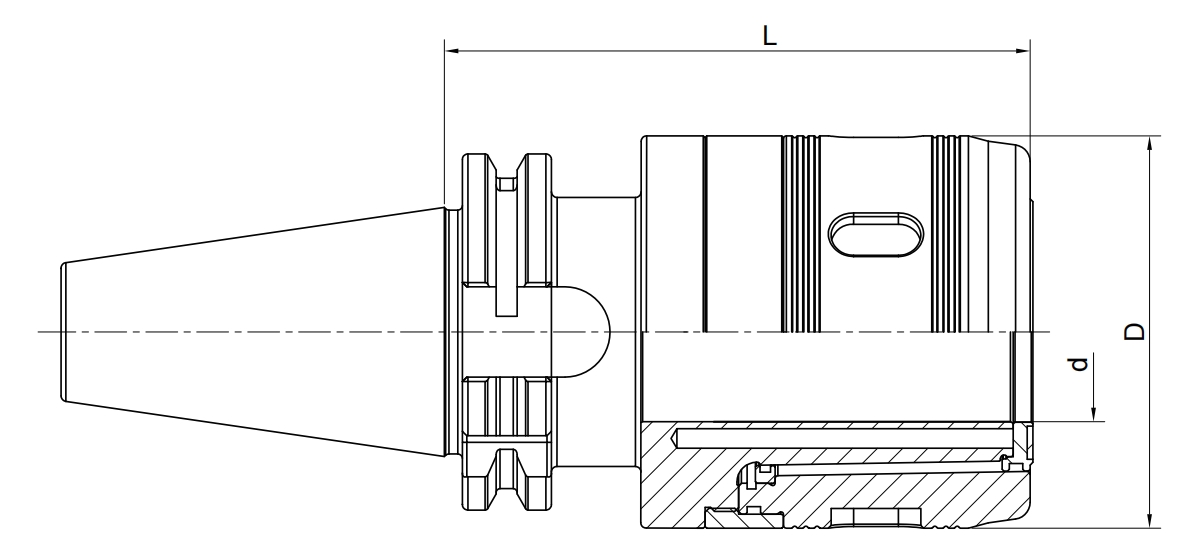

Size d D L Capacity
SK30-HC20-85 20 50 85 3-16; 20
SK30-HC20-100 20 50 100 3-16; 20
SK40-HC20-85 20 50 85 3-16; 20
SK40-HC25-100 25 59 100 3-20; 25
SK40-HC32-105 32 72 105 3-25; 32
SK50-HC20-105 20 50 105 3-16; 20
SK50-HC25-100 25 59 100 3-20; 25
SK50-HC32-110 32 72 110 3-25; 32
SK50-HC42-110 42 99 110 3-32; 42
