C1C4AK Axial, Coolant, Wedge Clamping Holders
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao, Tianjin |
| Color: | Blackening |
| Lead Time: | 40 Days |
| Payment: | TT in Advance |
- Specification
- Simple figure
- Precautions

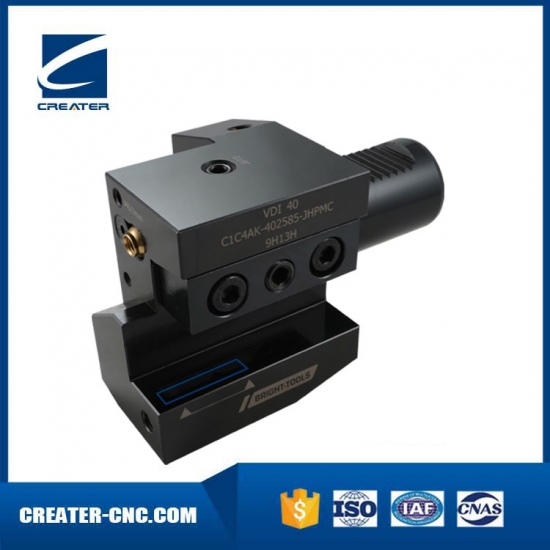

C1C4AK Axial, Coolant, Wedge Clamping Holders
The new system consists of specially designed long coolant outlet slot that enables adjusting the tool's protrusion.

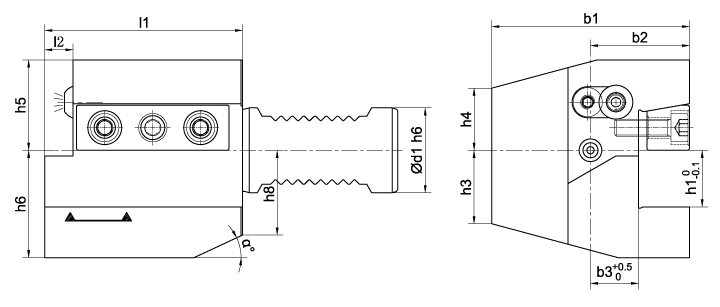

| Size | b1 | b2 | b3 | l2 | h3 | h4 | h5 | h6 | h8 | α |
| C1C4AK-302070 | 70 | 35 | 17 | 10 | 26 | 22 | 32 | 38 | 30 | 25˚ |
| C1C4AK-402585 | 85 | 42.5 | 21 | 12.5 | 35 | 30 | 38 | 48 | 40 | 15˚ |
| C1C4AK-502585 | 90.5 | 48 | 26 | 12.5 | 42 | 35 | 44 | 48 | 43 | 30˚ |
