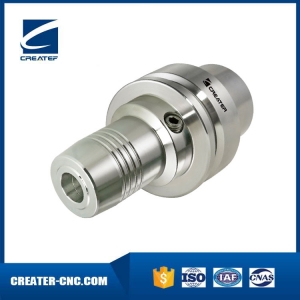

DIN69893 HSK-F Hydraulic Chuck, Standard

Brand:	creater

contact now

Specification

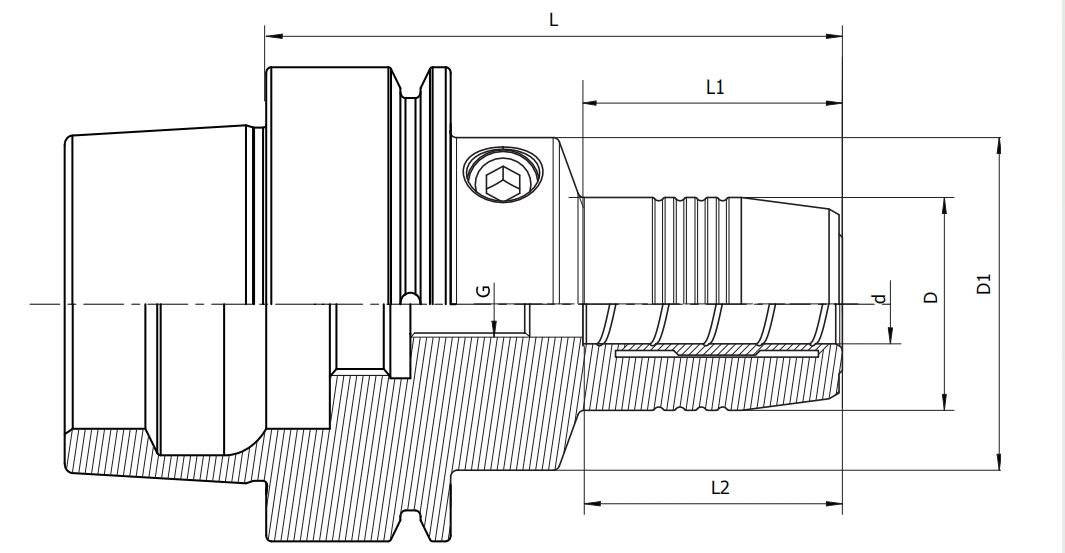

Simple figure
Precautions

HSKF type Hydraulic holder is popular used by woodworking industry, With a few simple actions, the tool can be changed quickly and rocess reliably. Insert the tool into the hydraulic expansion toolholder, use an Allen key to screw in the clamping screw to dead stop – finished! It is ime savings due to reduced set-up times and no investment and ergy costs for additional clamping devices.

Size	d	D	D1	L	l1	l2	Screw
HSK63F-HY06-70	6	26	50	70	24	27	M5
HSK63F-HY08-70	8	28	50	70	25	27	M6
HSK63F-HY10-80	10	30	50	80	35	32	M8×1
HSK63F-HY12-85	12	32	50	85	40	37	M10×1
HSK63F-HY14-85	14	34	50	85	40	37	M10×1
HSK63F-HY16-90	16	38	50	90	46	42	M12×1
HSK63F-HY18-90	18	40	50	90	47	42	M12×1
HSK63F-HY20-90	20	42	50	90	48	42	M16×1
HSK63F-HY25-120	25	57	63	120	59	48	M16×1
HSK63F-HY32-125	32	64	75	125	63	55	M16×1

High precision 0.003mm
Better anti-vibration result
High precision machining
