B1B4Ak Radial, Short, Coolant, Wedge Clamping Holders
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao, Tianjin |
| Color: | Blackening |
| Lead Time: | 40 Days |
| Payment: | TT in Advance |
- Specification
- Simple figure
- Precautions

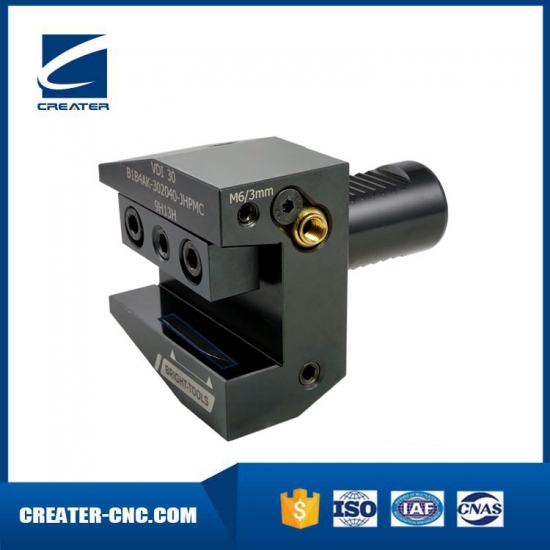

B1B4Ak Radial, Short, Coolant, Wedge Clamping Holders
The new system consists of specially designed long coolant outlet slot that enables adjusting the tool's protrusion.

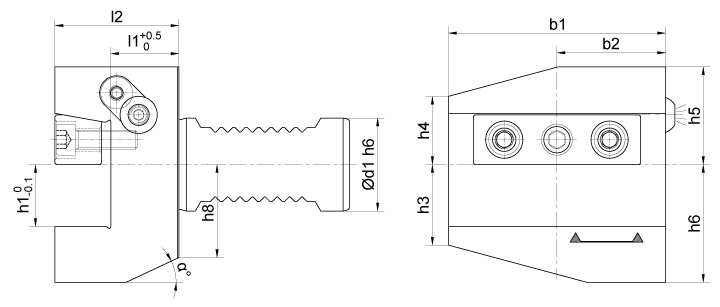

| Size | b1 | b2 | b3 | l1 | h3 | h4 | h5 | h6 | h8 | α |
| B1B4AK-302040 | 70 | 35 | - | 22 | 26 | 22 | 31.5 | 38 | 30 | 25˚ |
| B1B4AK-402544 | 85 | 42.5 | - | 22 | 35 | 30 | 38 | 48 | 43 | 30˚ |
| B1B4AK-502544 | 85 | 42.5 | - | 22 | 43 | 30 | 43 | 48 | 43 | 30˚ |
