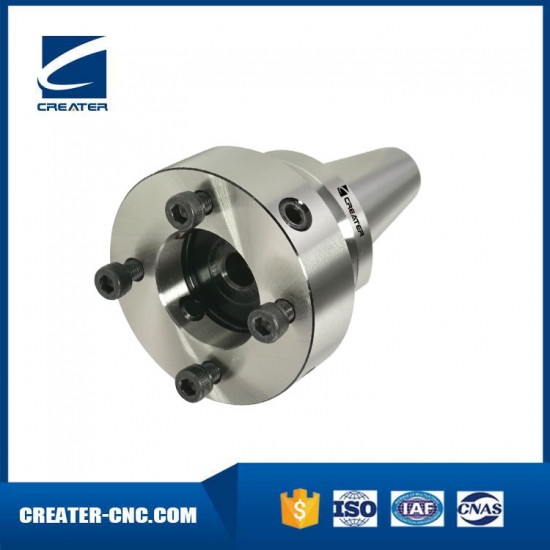

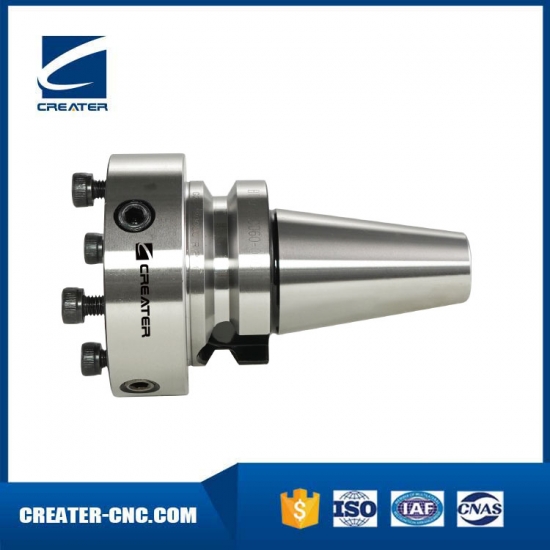

MAS403 BT Runout Adjustable Flange Adapter
Brand: creater
contact now
  • Specification
  • Simple figure
  • Precautions

MAS 403 BT Runout Adjustable Flange Adapter

Flange tool holders need to be used in conjunction with flange cutters.

The flange holder can adjust the tool to within 1u jump through the handle screw.

Generally used in the manufacture of high precision machining industries such as automobiles/aerospace

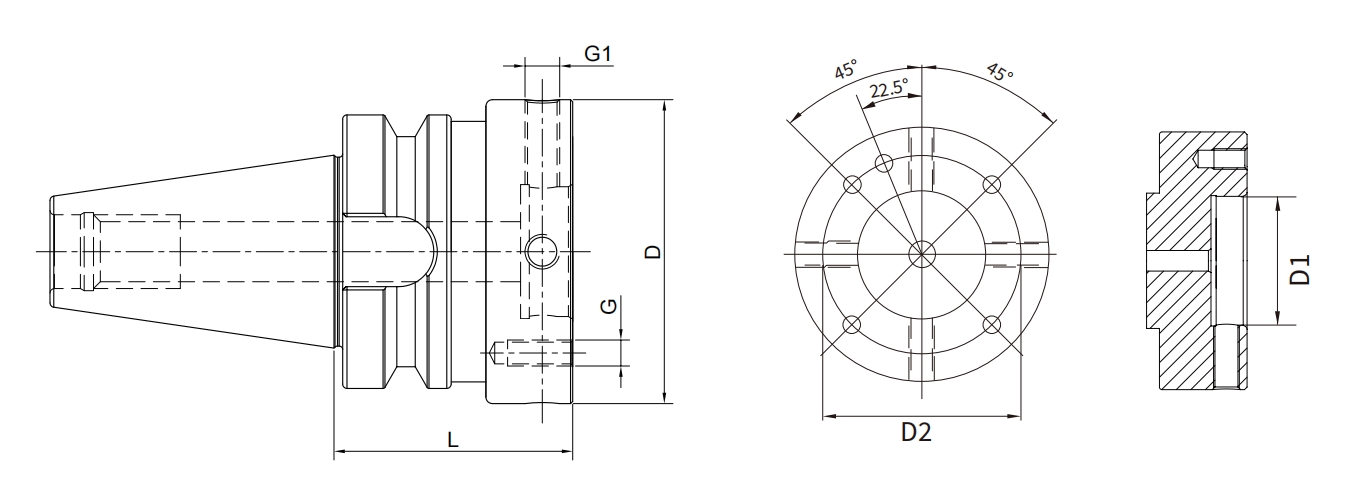

Size D L G G1
BT30-MOD060-050  60 50 M5 M8x1
BT30-MOD070-050 70 50 M6 M8x1
BT40-MOD060-050 60 50 M5 M8x1
BT40-MOD070-050 70 50 M6 M8x1
BT40-MOD080-050 80 50 M6 M8x1
BT40-MOD100-070 100 70 M8 M10x1
BT50-MOD060-070 60 70 M5 M8x1
BT50-MOD070-070 70 70 M6 M8x1
BT50-MOD080-070 80 70 M6 M8x1
BT50-MOD100-070 100 70 M8 M10x1
BT50-MOD117-080 117 80 M8 M10x1
BT50-MOD140-080 140 80 M10 M10x1
