| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening |
| Lead Time: | 5-40 Days |
| Payment: | TT in Advance |
- Specification
- Simple figure
- Precautions

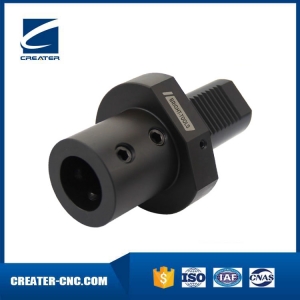

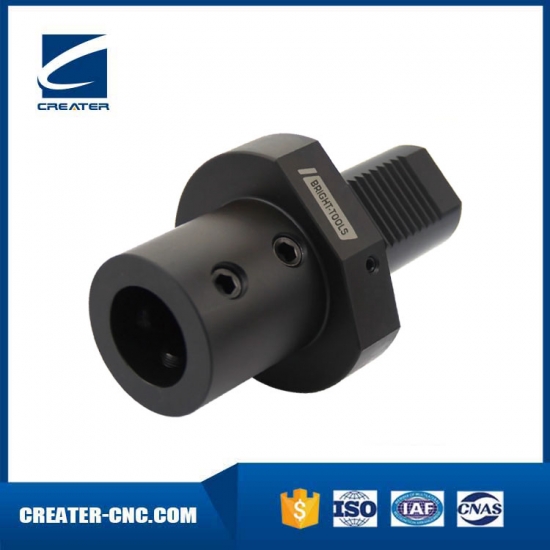

U-Drill Holder (DIN 69880) E1 Form E1
VDI Tool Holder is a Quick Change Toolholding System, it provides a fast and accurate way of affxing tools to the Turret;Tool Changes are performed in seconds. VDI Boring Bar Holder can be Preset.
This is a Cam Operated Clamping System.
Metric sizes can be ordered directly, Inch sizes can be make by request.

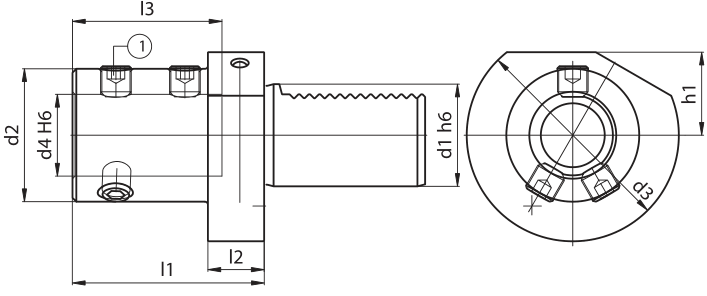

VDI Boring Bar Holder series
Metric
Size
d1
d2
d3
d4
h1
l1
l2
l3
E1-20x16
20
36
50
16
-
67
18
54
E1-20x20
20
40
50
20
-
67
18
54
E1-20x25
20
45
50
25
-
71
18
59
E1-25x16
25
36
58
16
25
67
18
54
E1-25x20
25
40
58
20
25
67
18
54
E1-25x25
25
45
58
25
25
71
18
59
E1-25x32
25
52
58
32
25
75
18
63
E1-30x16
30
36
68
16
28
67
22
54
E1-30x20
30
40
68
20
28
67
22
54
E1-30x25
30
45
68
25
28
71
22
58
E1-30x32
30
52
68
32
28
75
22
61
E1-30x40
30
65
68
40
28
90
22
72
E1-40x16
40
36
83
16
32.5
67
22
54
E1-40x20
40
40
83
20
32.5
67
22
54
E1-40x25
40
45
83
25
32.5
75
22
59
E1-40x32
40
52
83
32
32.5
75
22
61
E1-40x40
40
65
83
40
32.5
90
22
73
E1-40x50
40
75
83
50
32.5
100
22
83
E1-50x16
50
36
98
16
35
80
30
54
E1-50x20
50
40
98
20
35
80
30
54
E1-50x25
50
45
98
25
35
80
30
59
E1-50x32
50
52
98
32
35
80
30
63
E1-50x40
50
65
98
40
35
90
30
73
E1-50x50
50
75
98
50
35
100
30
83
E1-60x16
60
36
123
16
42.5
80
30
54
E1-60x20
60
40
123
20
42.5
80
30
54
E1-60x25
60
45
123
25
42.5
80
30
59
E1-60x32
60
52
123
32
42.5
80
30
63
E1-60x40
60
65
123
40
42.5
90
30
73
E1-60x50
60
75
123
50
42.5
100
30
83
E1-80x20
80
40
158
20
55
80
30
54
E1-80x25
80
45
158
25
55
80
30
59
E1-80x32
80
52
158
32
55
80
30
63
E1-80x40
80
65
158
40
55
90
30
73
E1-80x50
80
75
158
50
55
100
30
83
Inch
Size
d1
d2
d3
d4
h1
l1
l2
l3
E1-20x3/4"
20
40
50
3/4"
-
67
18
54
E1-20x1"
20
45
50
1"
-
71
18
59
E1-30x3/4"
30
40
68
3/4"
28
67
22
54
E1-30x1"
30
45
68
1"
28
71
22
58
E1-30x1-1/4"
30
52
68
1-1/4"
28
75
22
61
E1-40x5/8"
40
36
83
5/8"
32.5
67
22
54
E1-40x3/4"
40
40
83
3/4"
32.5
67
22
54
E1-40x1"
40
45
83
1"
32.5
75
22
59
E1-40x1-1/4"
40
52
83
1-1/4"
32.5
75
22
61
E1-40x1-1/2"
40
65
83
1-1/2"
32.5
90
22
73
E1-50x3/4"
50
40
98
3/4"
35
80
30
54
E1-50x1"
50
45
98
1"
35
80
30
59
E1-50x1-1/4"
50
52
98
1-1/4"
35
80
30
63
E1-50x1-1/2"
50
65
98
1-1/2"
35
90
30
73
E1-50x2"
50
75
98
2"
35
100
30
83
