VDI Tool Holder from A1
contact now
| Product Origin: | Dezhou, China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao, China |
| Color: | Blackening |
| Lead Time: | 45 Days |
- Specification
- Simple figure
- Precautions

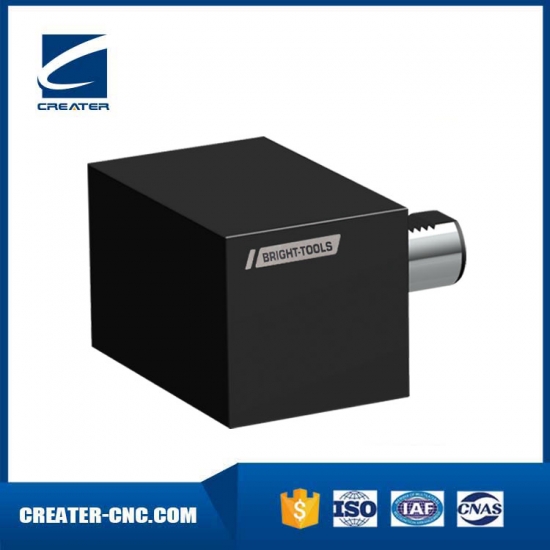

Rectangular VDI Tool Holder Blanks
Applicable Machines: CNC Laths
Usage: to make special VDI Tool Holders
Sizes can be made by request.

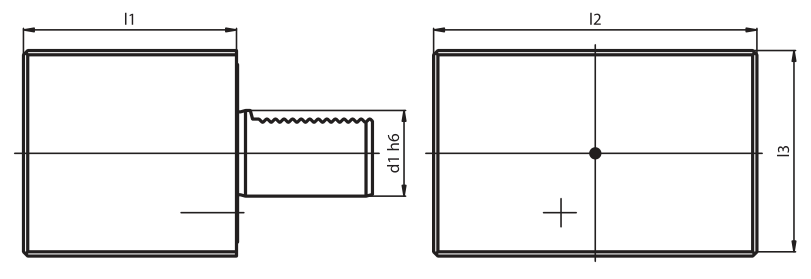

| Size | d1 | l1 | l2 | l3 |
| A1-16x44 | 16 | 44 | 78 | 44 |
| A1-20x65 | 20 | 65 | 100 | 60 |
| A1-25x75 | 25 | 75 | 100 | 60 |
| A1-30x85 | 30 | 85 | 130 | 76 |
| A1-40x100 | 40 | 100 | 151 | 96 |
| A1-50x125 | 50 | 125 | 160 | 120 |
| A1-60x160 | 60 | 160 | 165 | 125 |
| A1-80x200 | 80 | 200 | 220 | 160 |
