Hydraulic Chuck DIN69893
/uploadfile/202308/16/da92173e581bb0c2480e084882d4e905_square.jpg

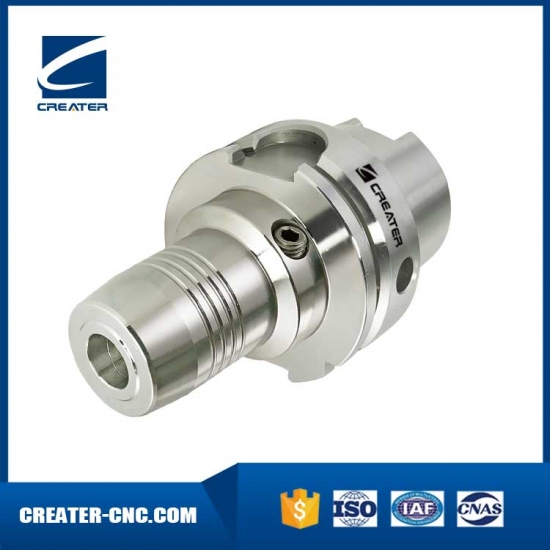

Hydraulic Chuck DIN69893
Brand: creater
contact now
  • Specification

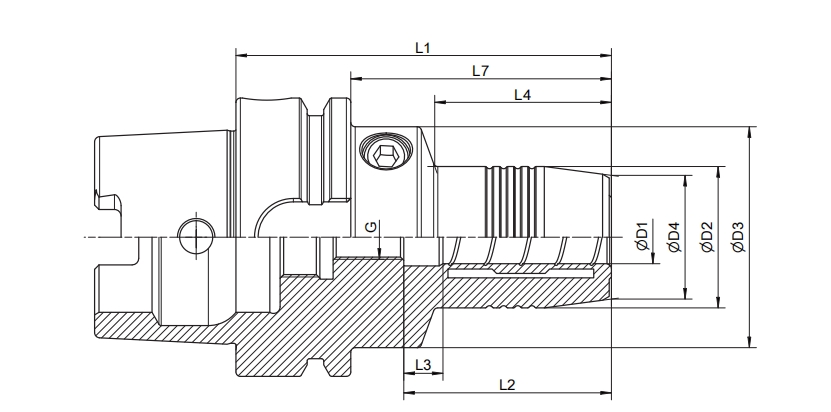

  • Simple figure
  • Precautions








Size d D D1 L l1 l2 Screw
HSK32A-HY6-80 6 26 40 80 29 27 M5×0.8
HSK32A-HY8-80 8 28 40 80 29 27 M6×1.0
HSK32A-HY10-85 10 30 40 85 35 32 M6×1.0
HSK32A-HY12-90 12 32 40 90 40 37 M6×1.0
HSK40A-HY6-70 6 26 34 70 36 27 M5×0.8
HSK40A-HY8-70 8 28 34 70 36 27 M6×1.0
HSK40A-HY10-75 10 30 34 75 42 32 M6×1.0
HSK40A-HY12-80 12 32 34 80 48 37 M6×1.0
HSK50A-HY6-70 6 26 40 70 28 27 M5×0.8
HSK50A-HY8-70 8 28 40 70 28 27 M6×1.0
HSK50A-HY10-75 /80 10 30 40 80 39 32 M8×1.0
HSK50A-HY12-85 12 32 40 85 44 37 M10×1.0
HSK50A-HY14-85 14 34 40 85 43 37 M10×1.0
HSK50A-HY16-90 16 38 53 90 30 42 M12×1.0
HSK50A-HY18-90 18 40 57 90 30 42 M12×1.0
HSK50A-HY20-90 20 42 60 90 29 42 M16×1.0
HSK63A-HY06-70 6 26 50 70 24 27 M5×0.8
HSK63A-HY08-70 8 28 50 70 25 27 M6×1.0
HSK63A-HY10-80 10 30 50 80 35 32 M8×1.0
HSK63A-HY12-85 12 32 50 85 40 37 M10×1.0
HSK63A-HY14-85 14 34 50 85 40 37 M10×1.0
HSK63A-HY16-90 16 38 50 90 46 42 M12×1.0
HSK63A-HY18-90 18 40 50 90 47 42 M12×1.0
HSK63A-HY20-90 20 42 50 90 48 42 M16×1.0
HSK63A-HY25-120 25 57 63 120 59 48 M16×1.0
HSK63A-HY32-125 32 64 75 125 63 55 M16×1.0
